技术大牛成长课,从0到1带你手写一个数据库系统（23年新课）

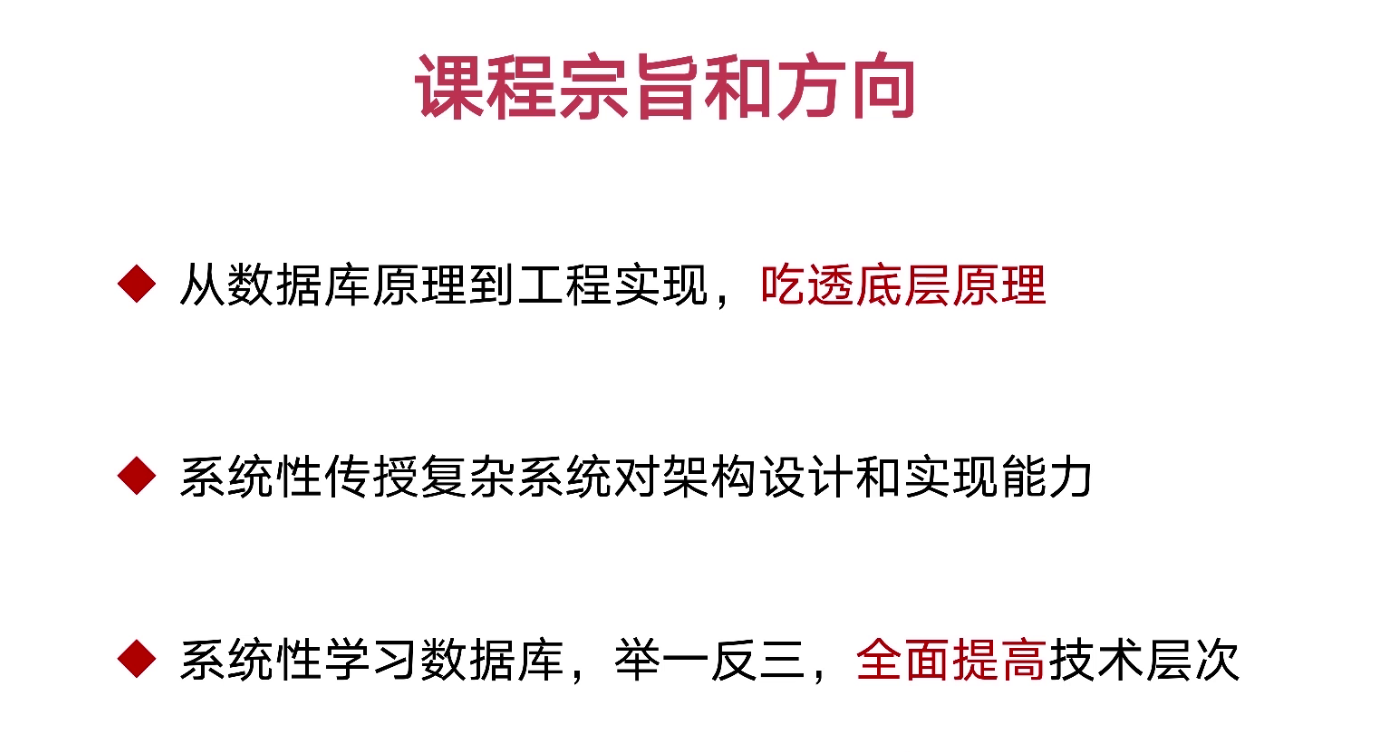

第1章 课程介绍及学习指南

第2章 手写数据库系统的必要性，及系统的整体介绍

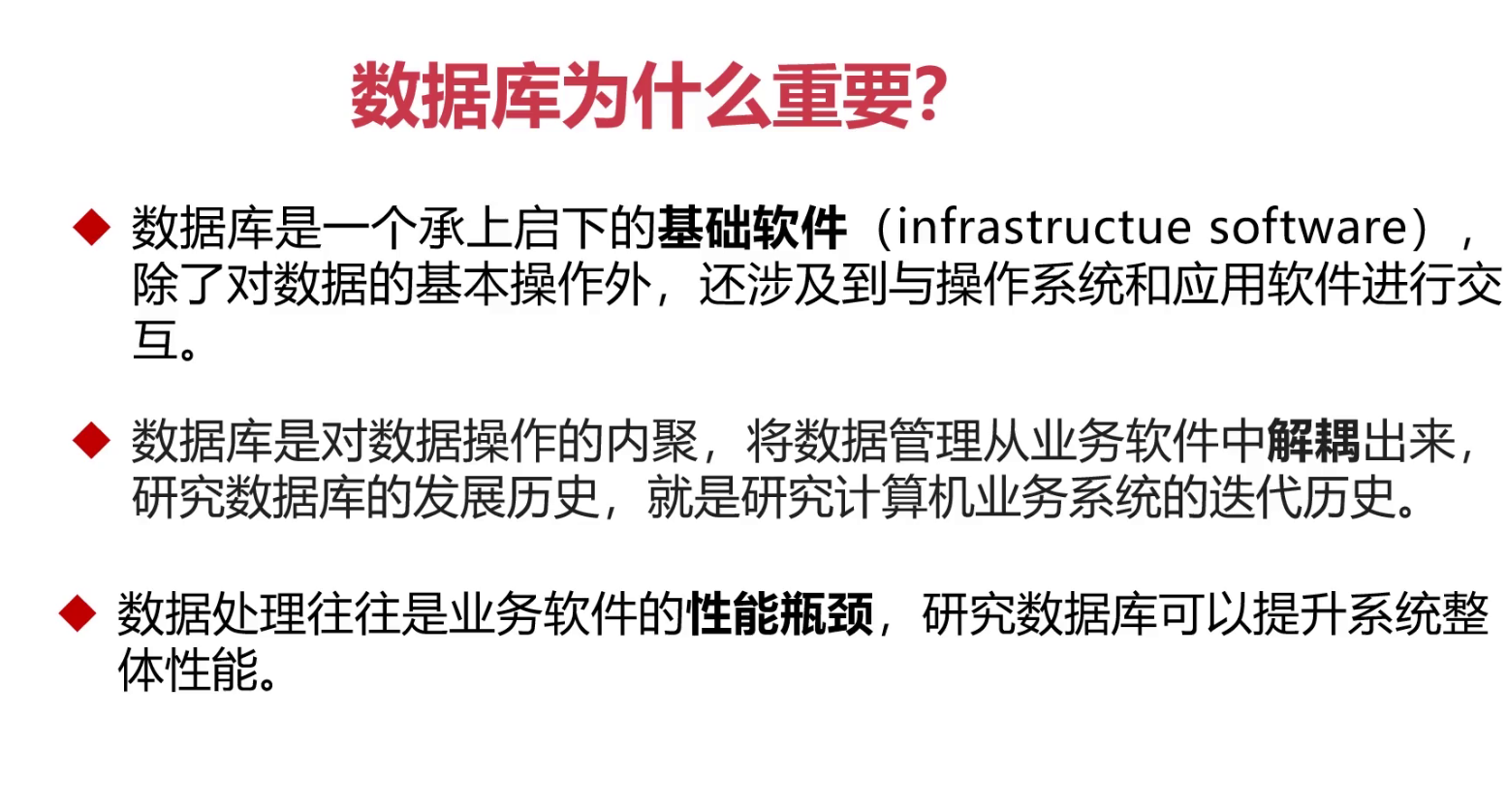

2-1 为什么研究并实现一款数据库

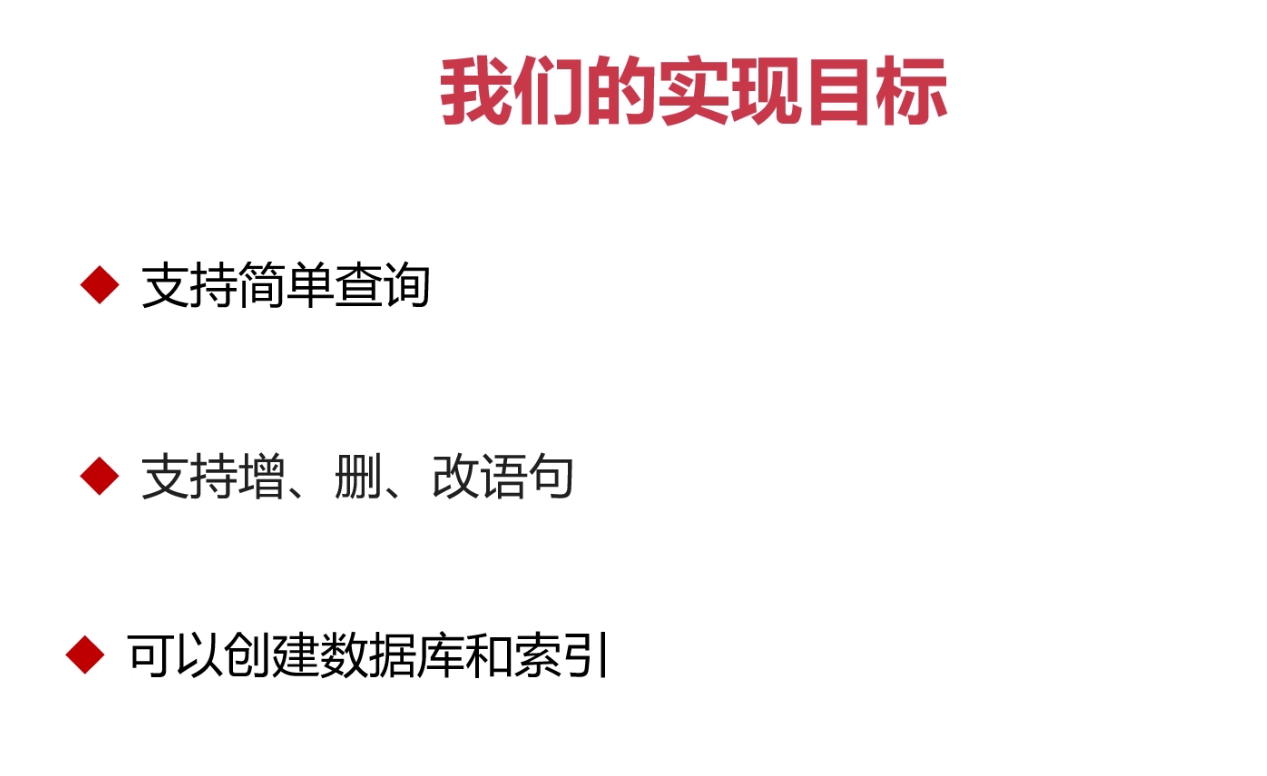

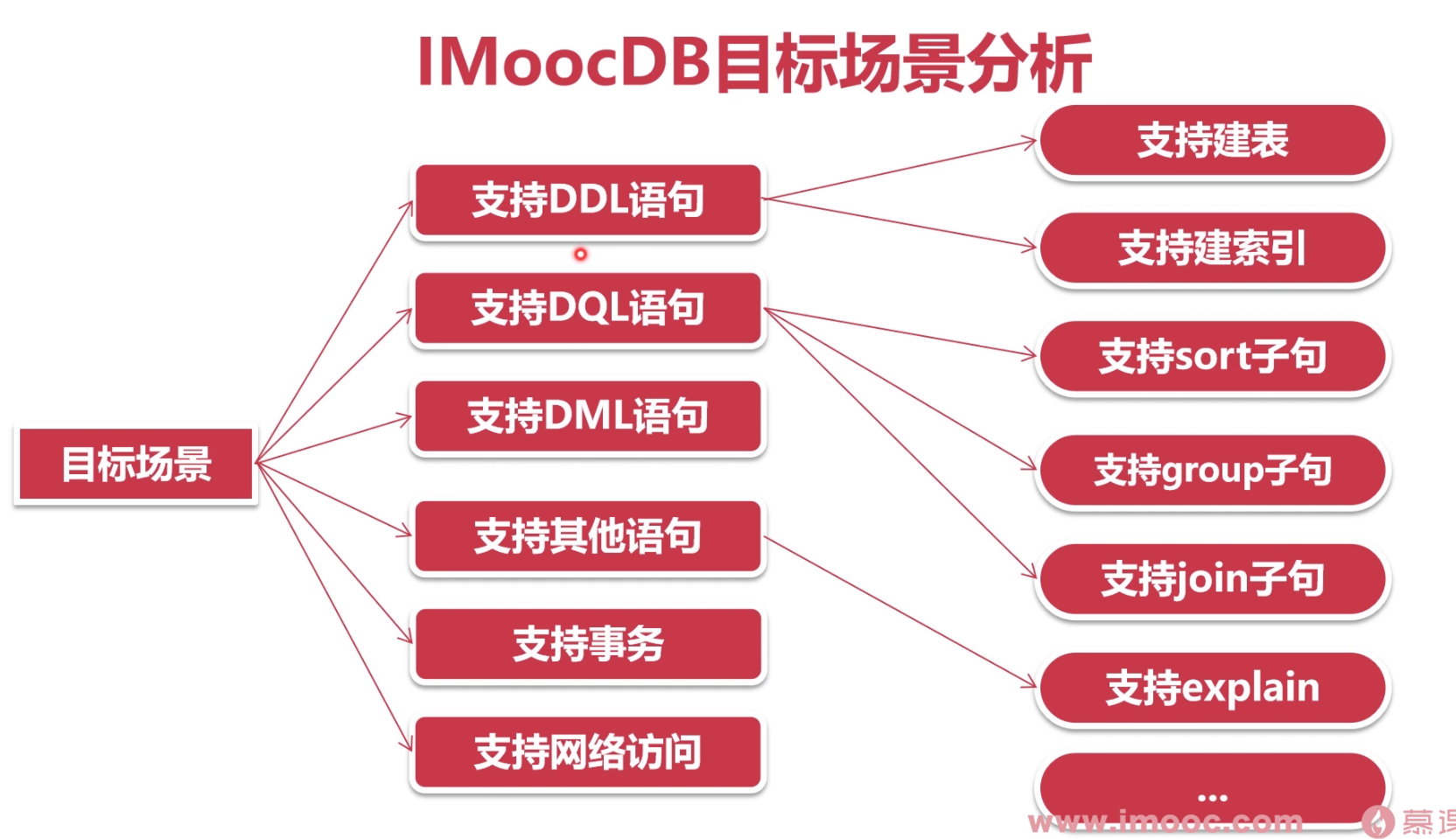

2-2 我们希望设计一款怎样的数据库

2-3 如何快速实现原型，选择合适的语言

2-4 复杂项目的持续演进要点

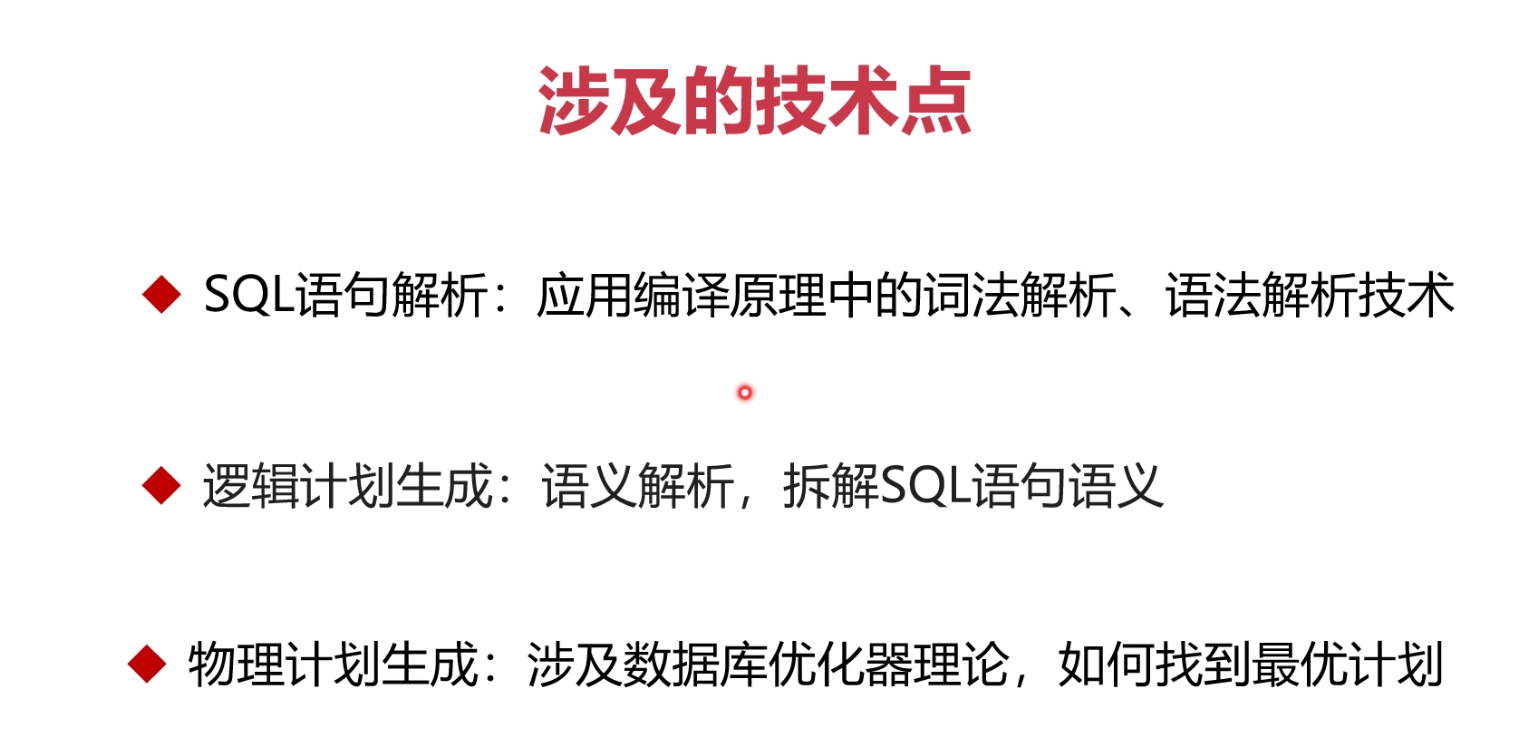

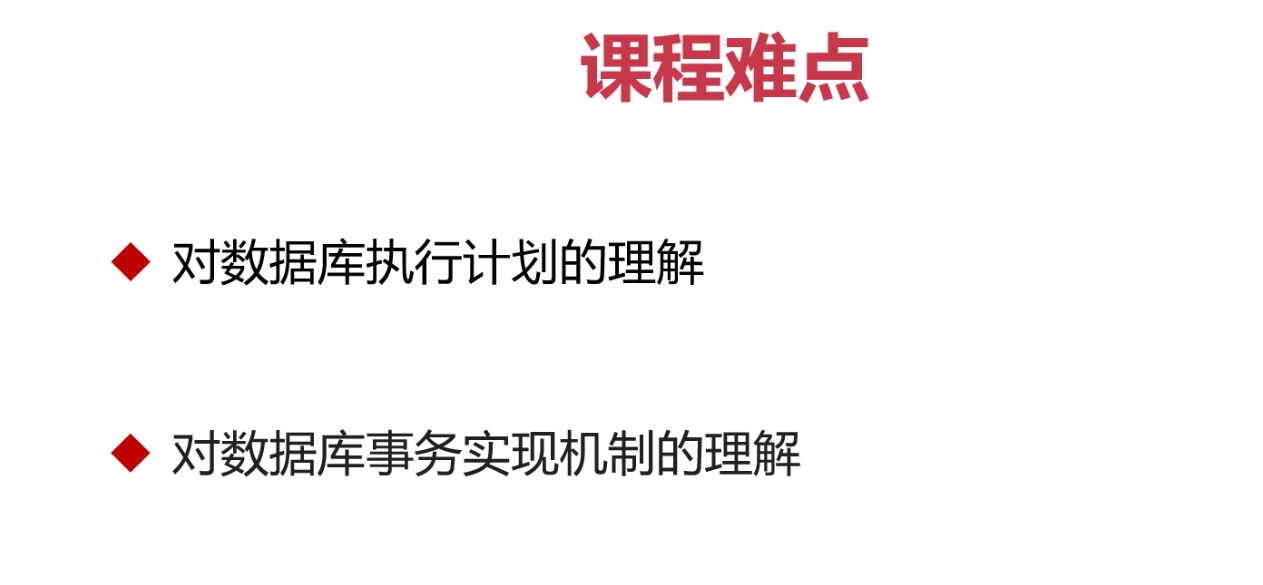

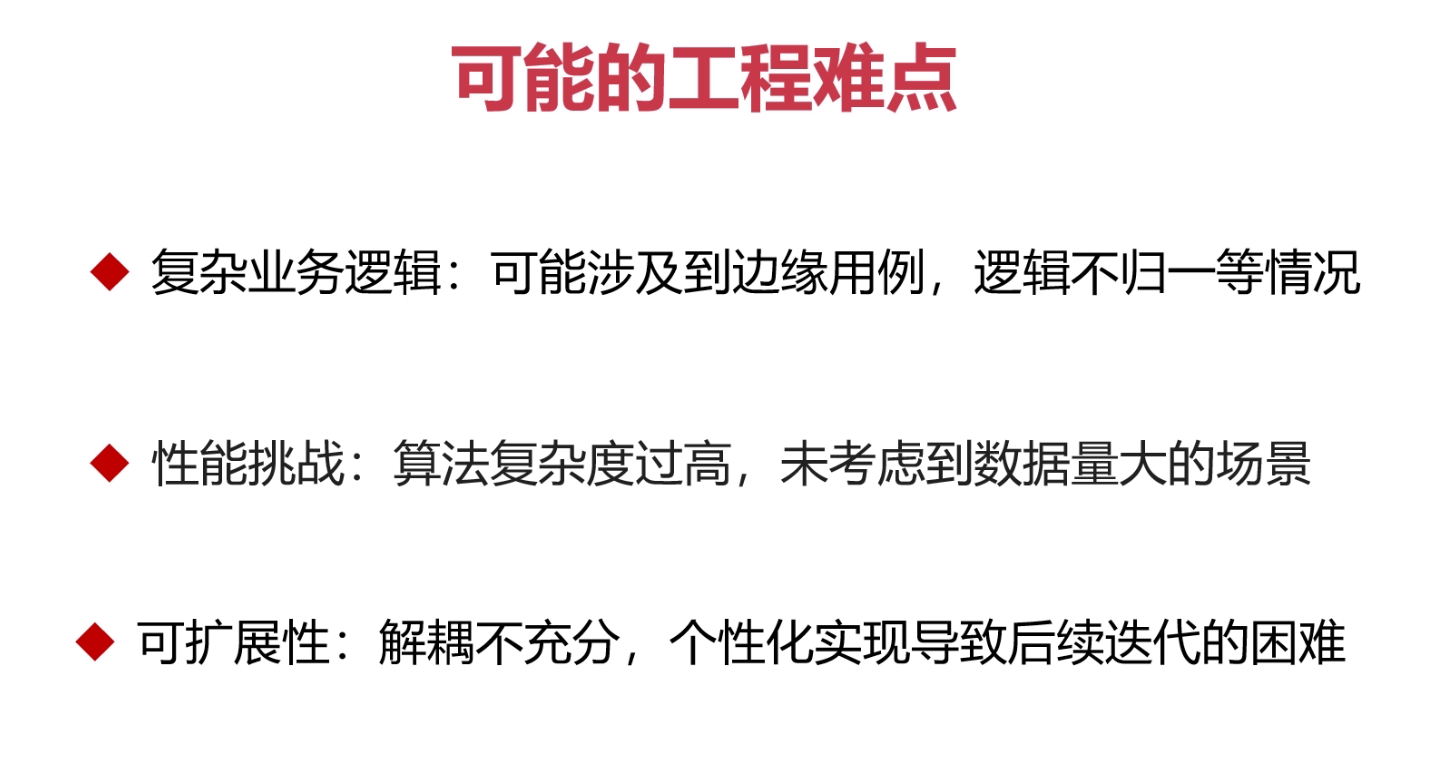

2-5 学习提前挖掘和识别可能的工程难点

第3章 研究优秀架构，教你如何进行复杂的软件设计

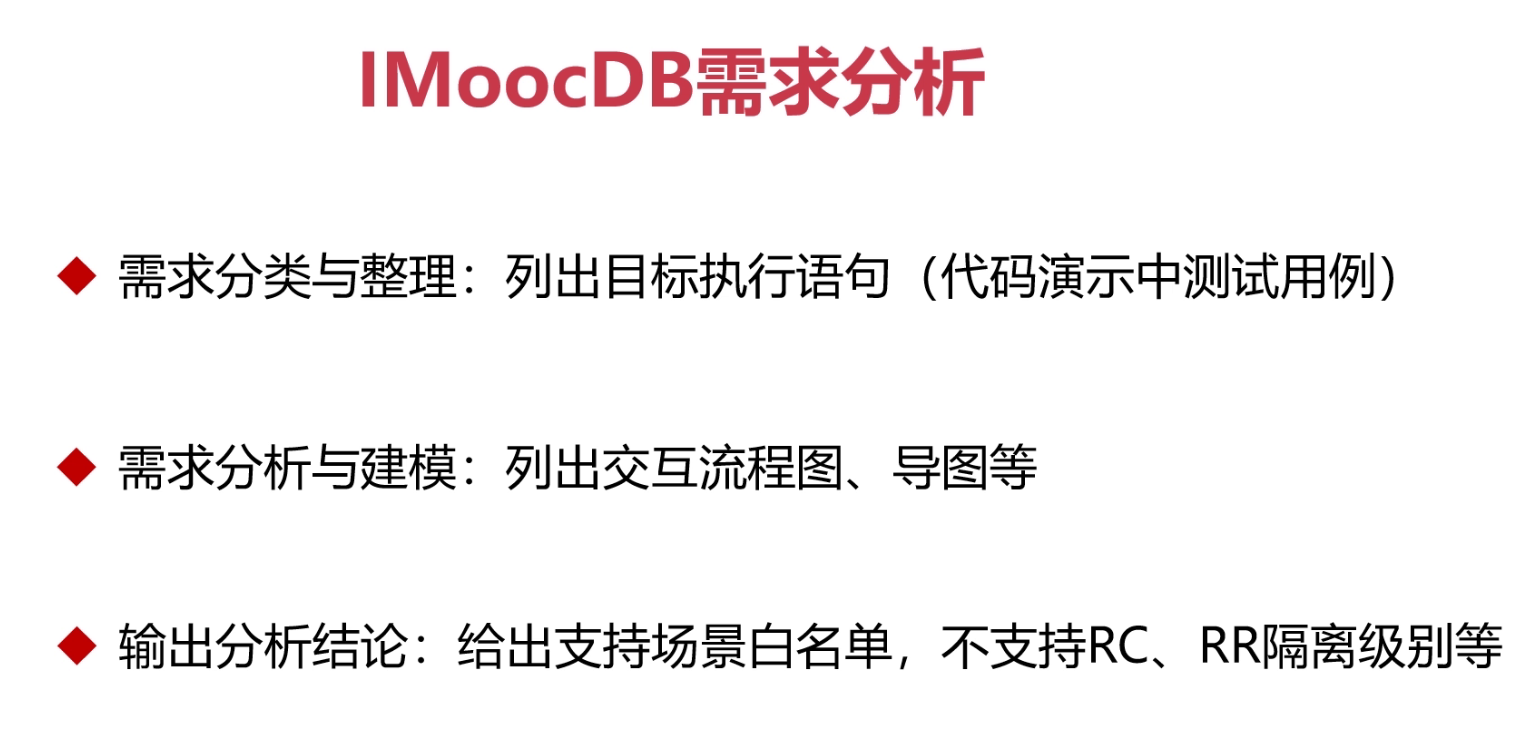

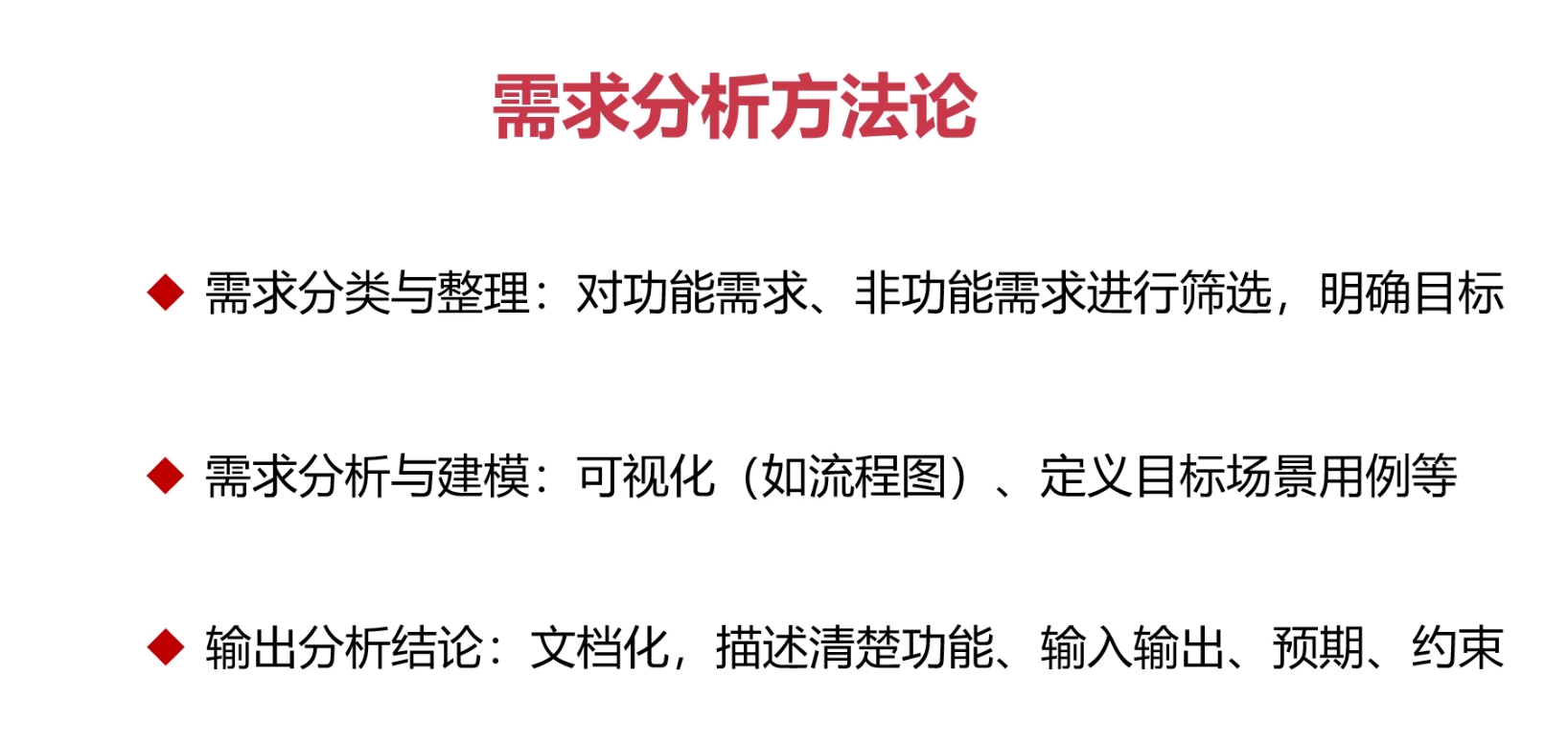

3-1 手把手带你进行需求分析和架构设计

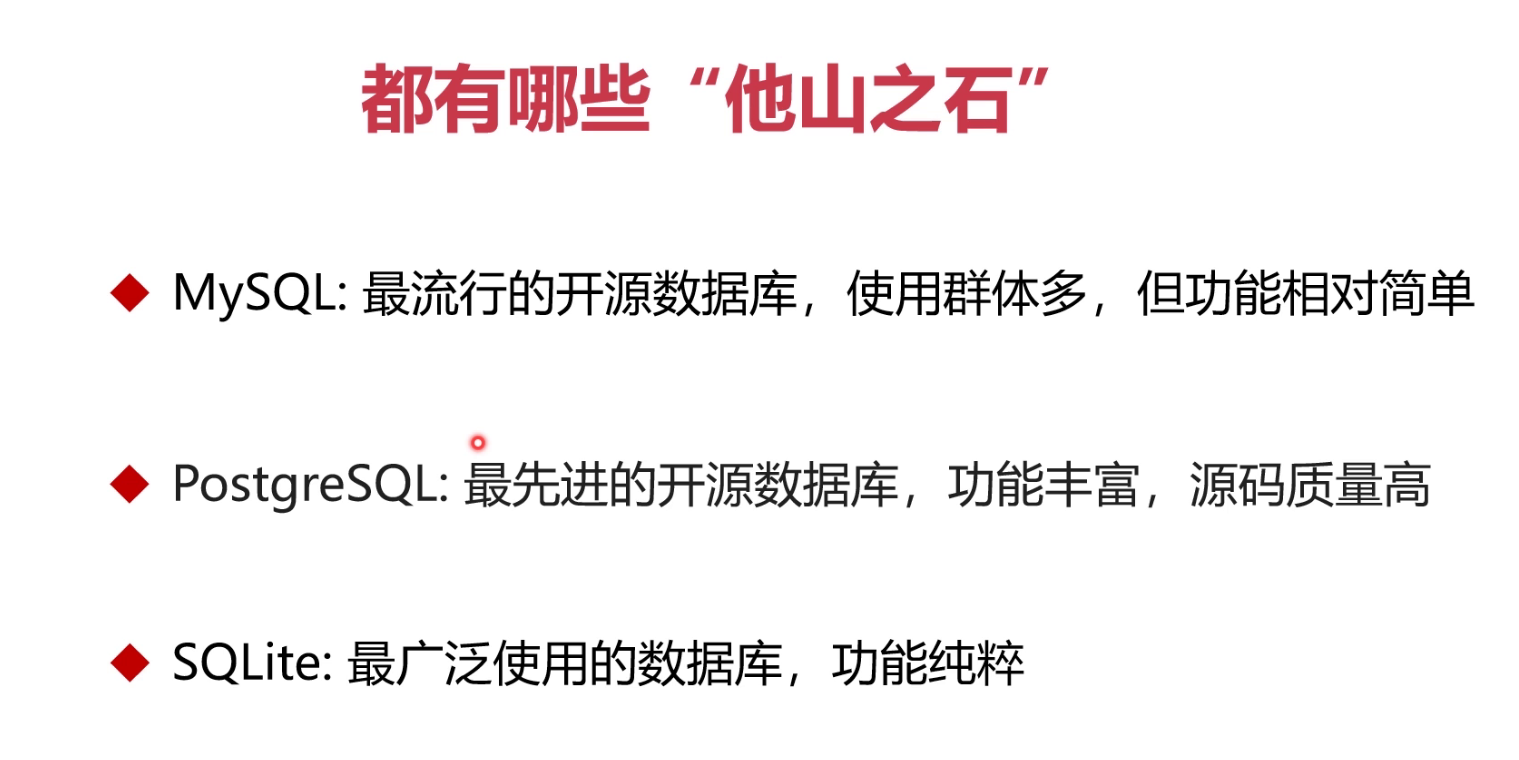

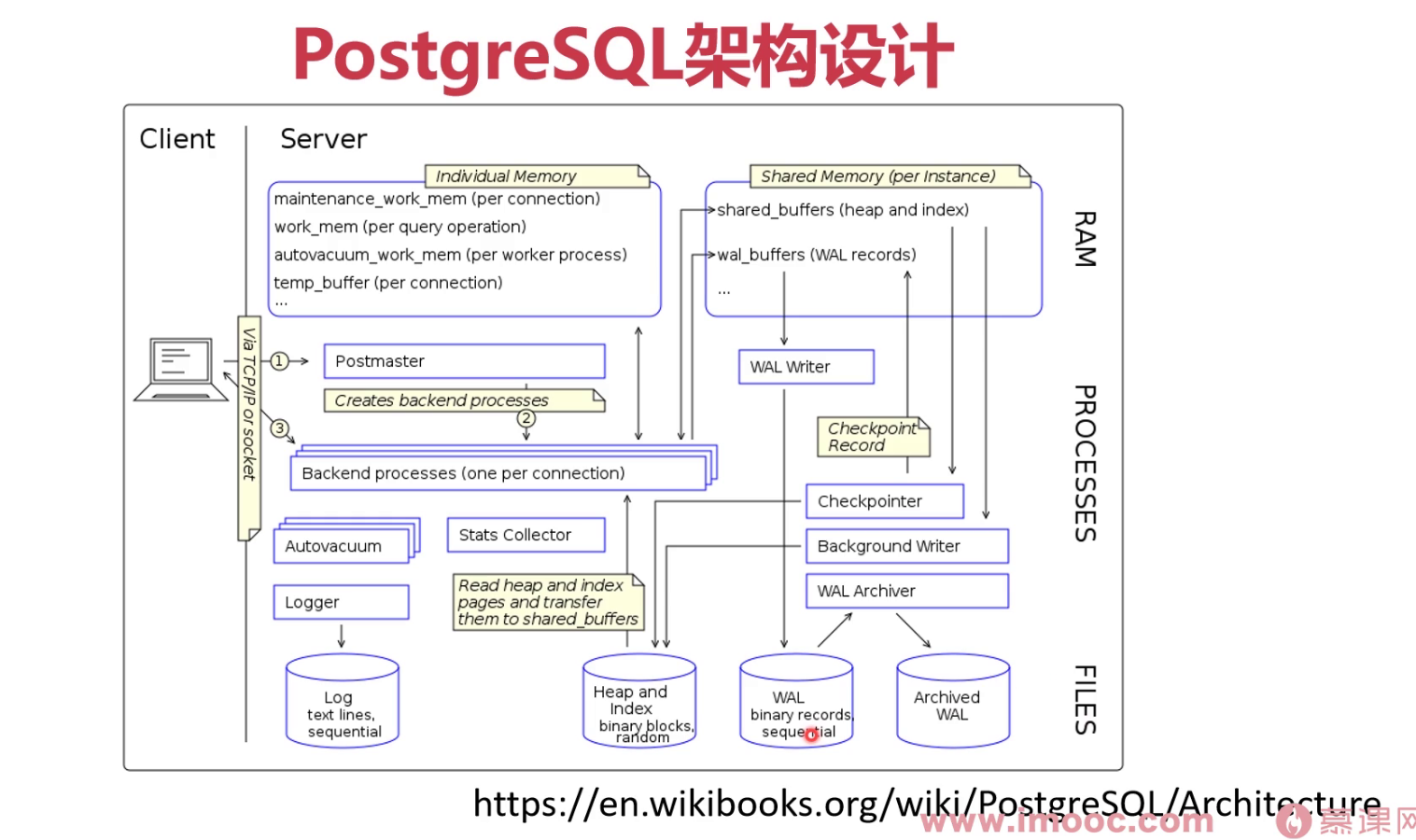

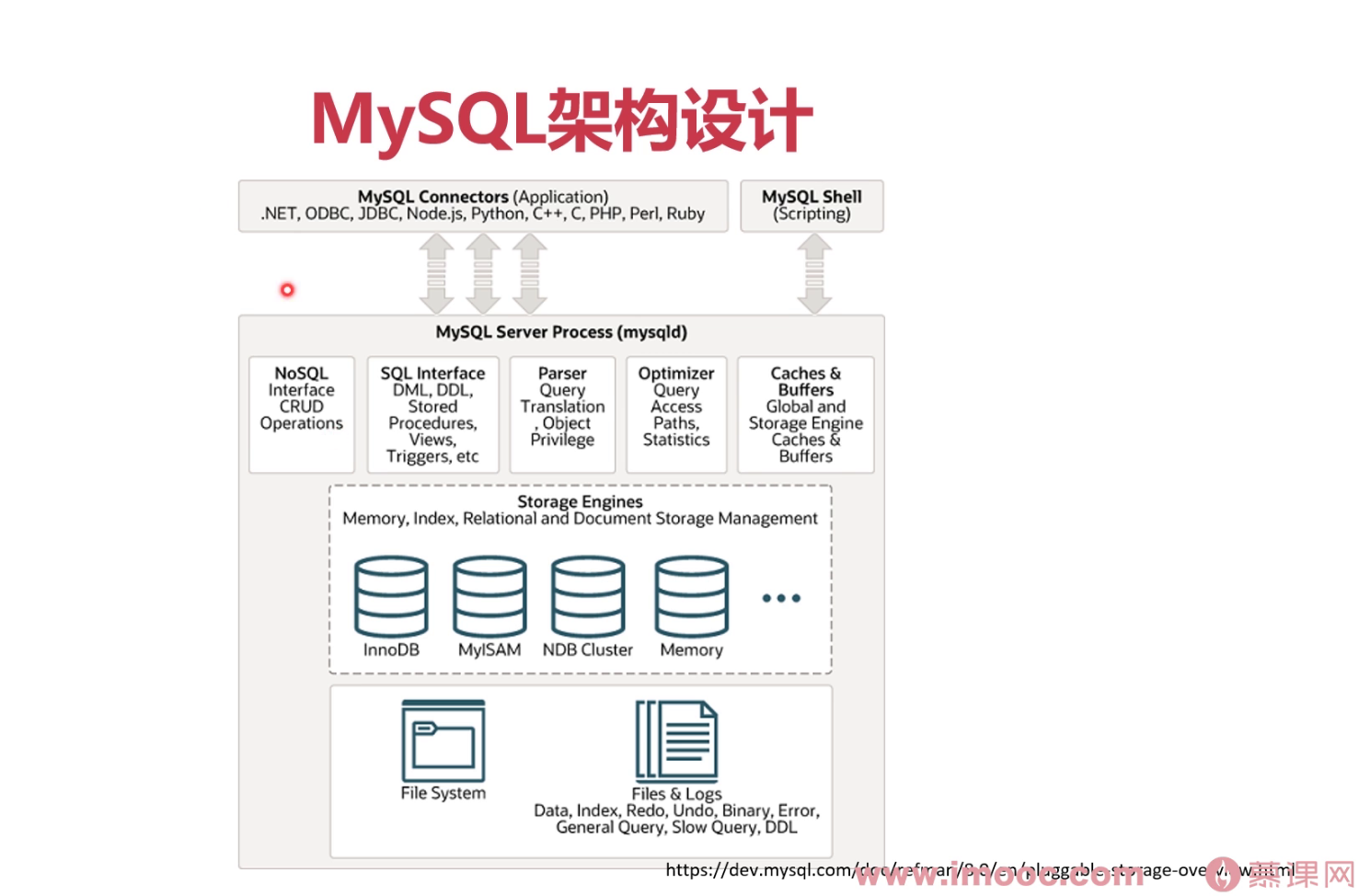

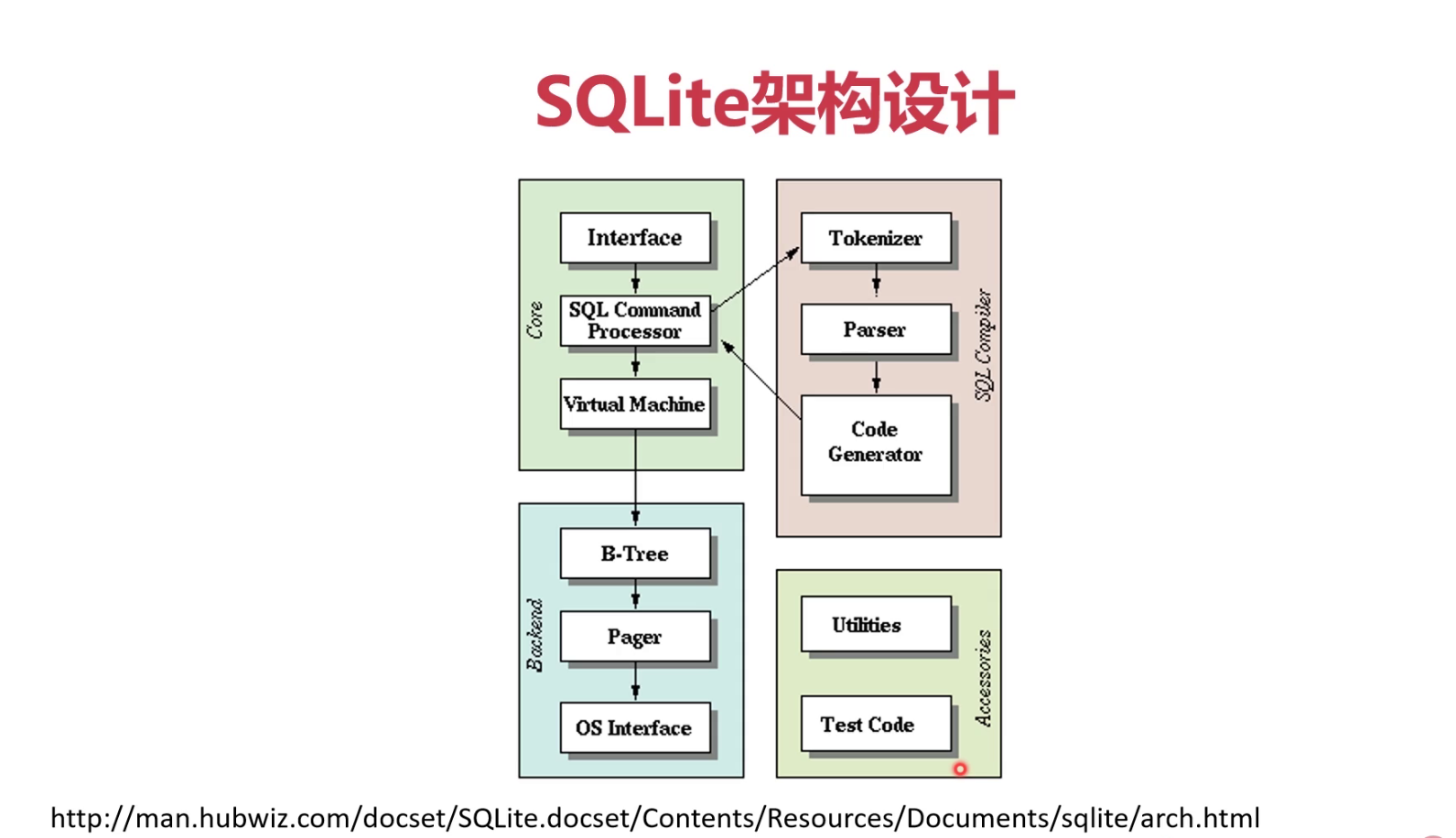

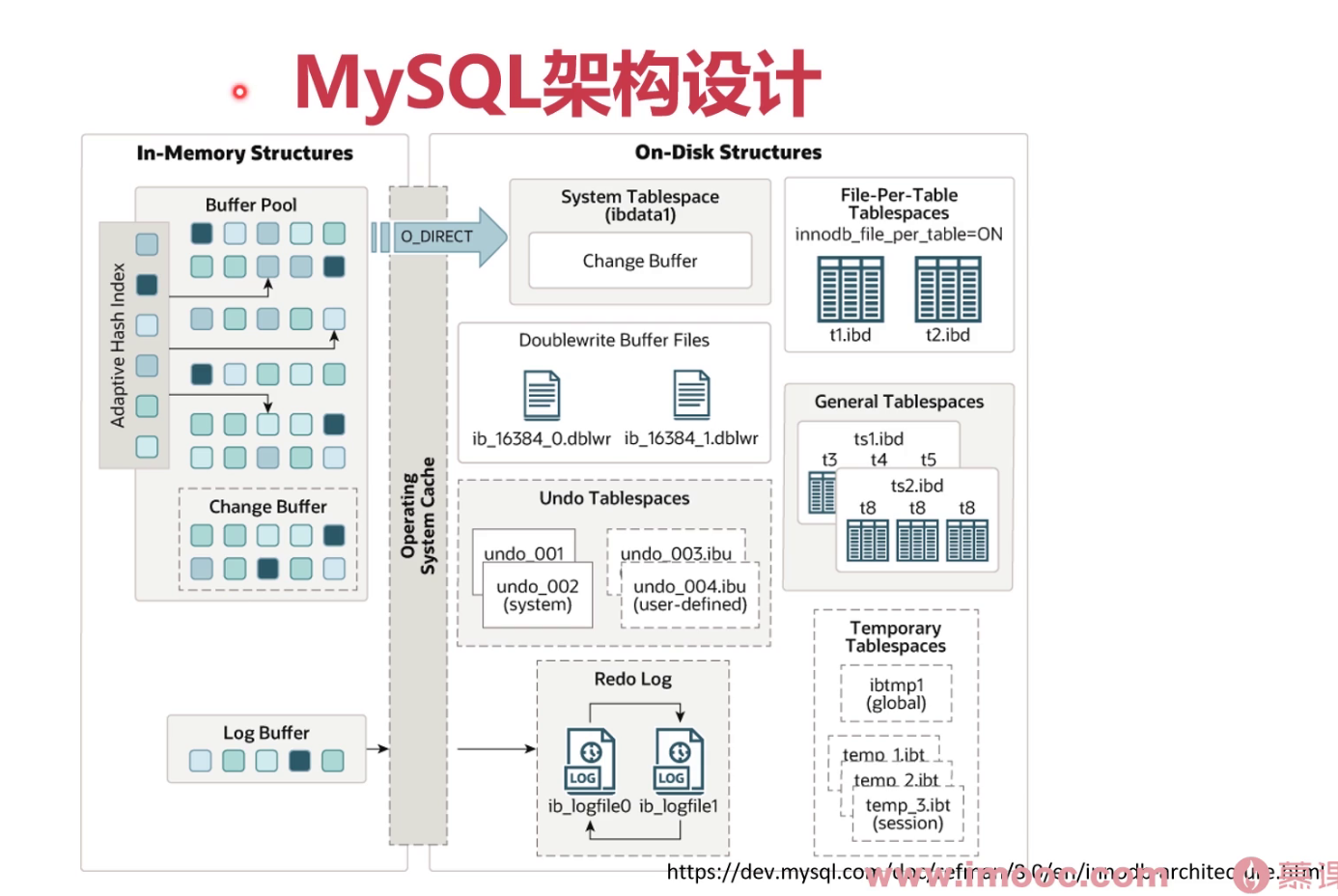

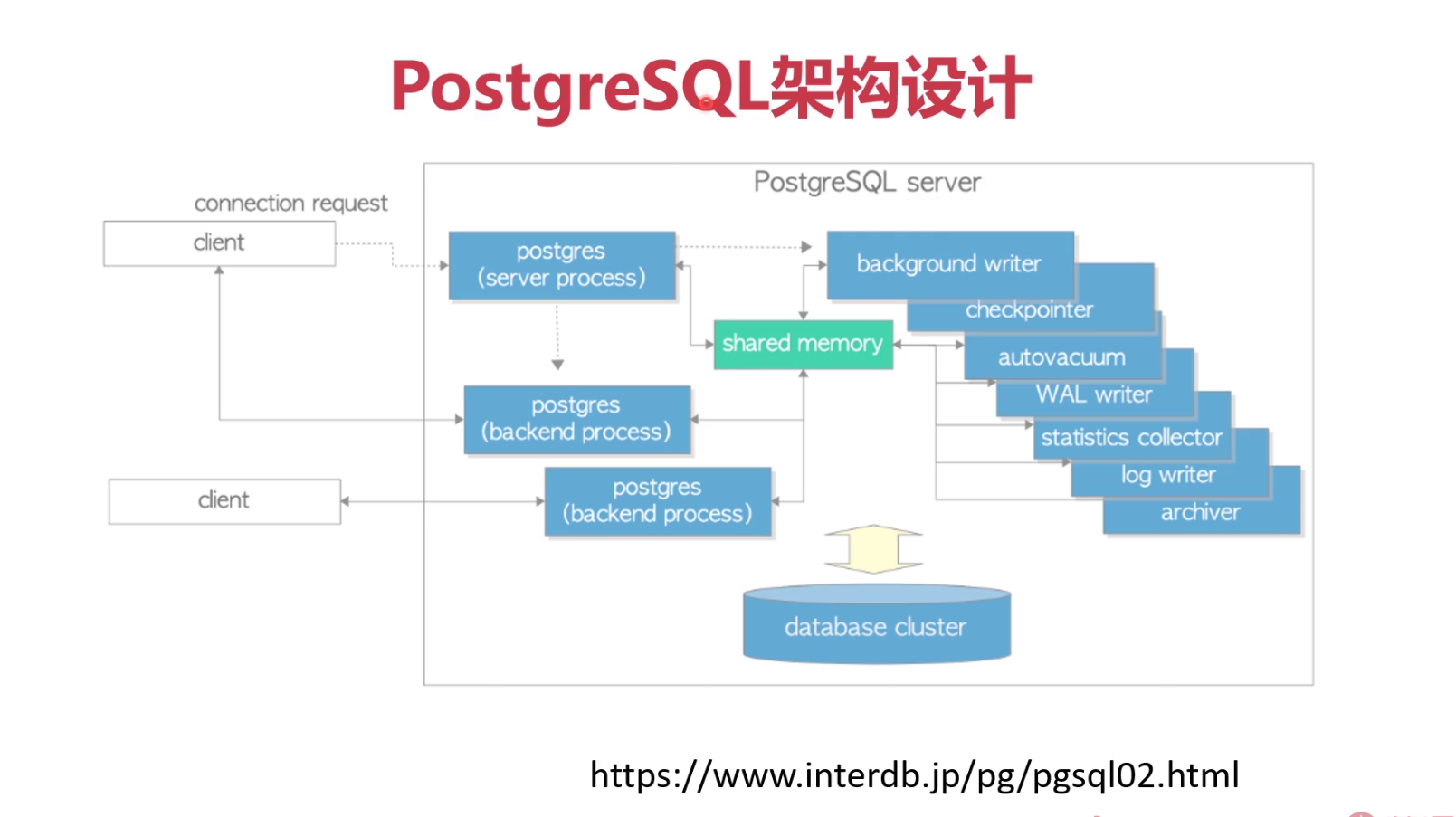

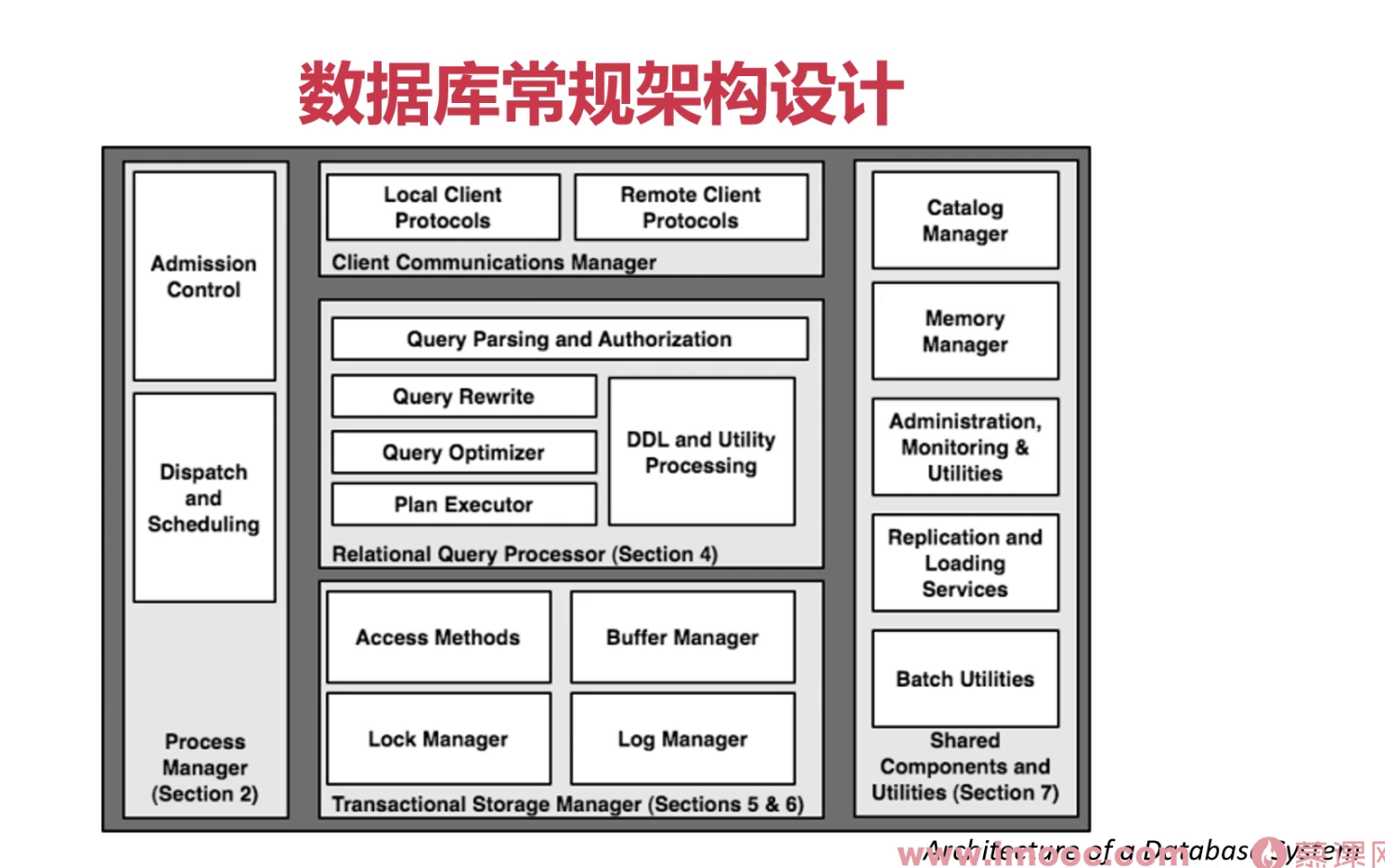

3-2 一起学习主流数据库架构，提升整体思维

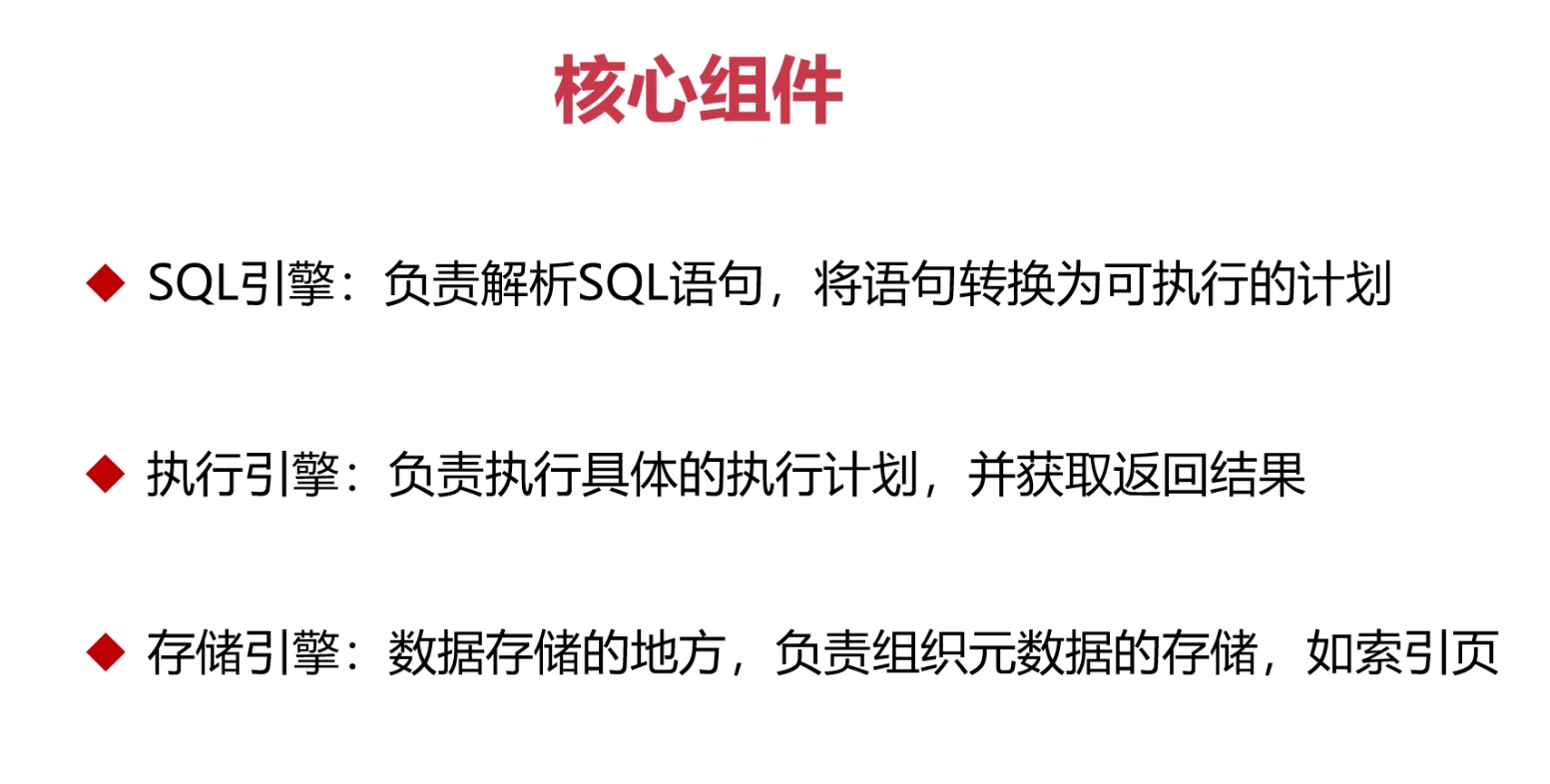

3-3 深入了解数据库系统的各模块功能

3-4 如何设计好关键接口

3-5 代码实现：创建基本目录和模块

# imooc db

慕课网 - 自己动手做一款数据库

# 目录
- sql
  - parser: 用于做sql语句的解析
  - optimizer: 用于生成sql语句过程进行执行计划的优化
- executor: 执行引擎, 用于执行通过sql语句产生的具体执行计划
  - operator: 执行算子, 是执行计划的最小单位
- storage: 存储引擎, 用于存储和组织数据
  - transaction: 用于事务管理
- network: 网络通信模块
- common: 公共组件部分, 工具函数等
...

3-6 代码实现：实现基本接口

# 说明
该文档用于介绍各个模块之间的关键接口, 便于开发人员进行速查
这种将文档放入代码仓库中, 在业内的实践中也叫做 doc-as-code

# 交互接口介绍

- 数据库SQL语句的总入口: `exec_db_query(sql_stmt: str) -> Result` 用于接收用户的访问SQL, 协调数据库内各组件
- SQL引擎入口: `query_parse(sql_stmt: str) -> ASTNode` 用于解析SQL语句, 返回AST
- SQL引擎SQL优化过程的入口: `query_plan(ast: ASTNode) -> PlanTree` 用于将解析后的AST转换为具体的执行计划
- 执行引擎的入口: `exec_plan(plan_tree: PlanTree) -> Result` 用于将具体的执行计划执行, 并返回结果

第4章 学习SQL引擎，破解各种数据库优化的核心密码

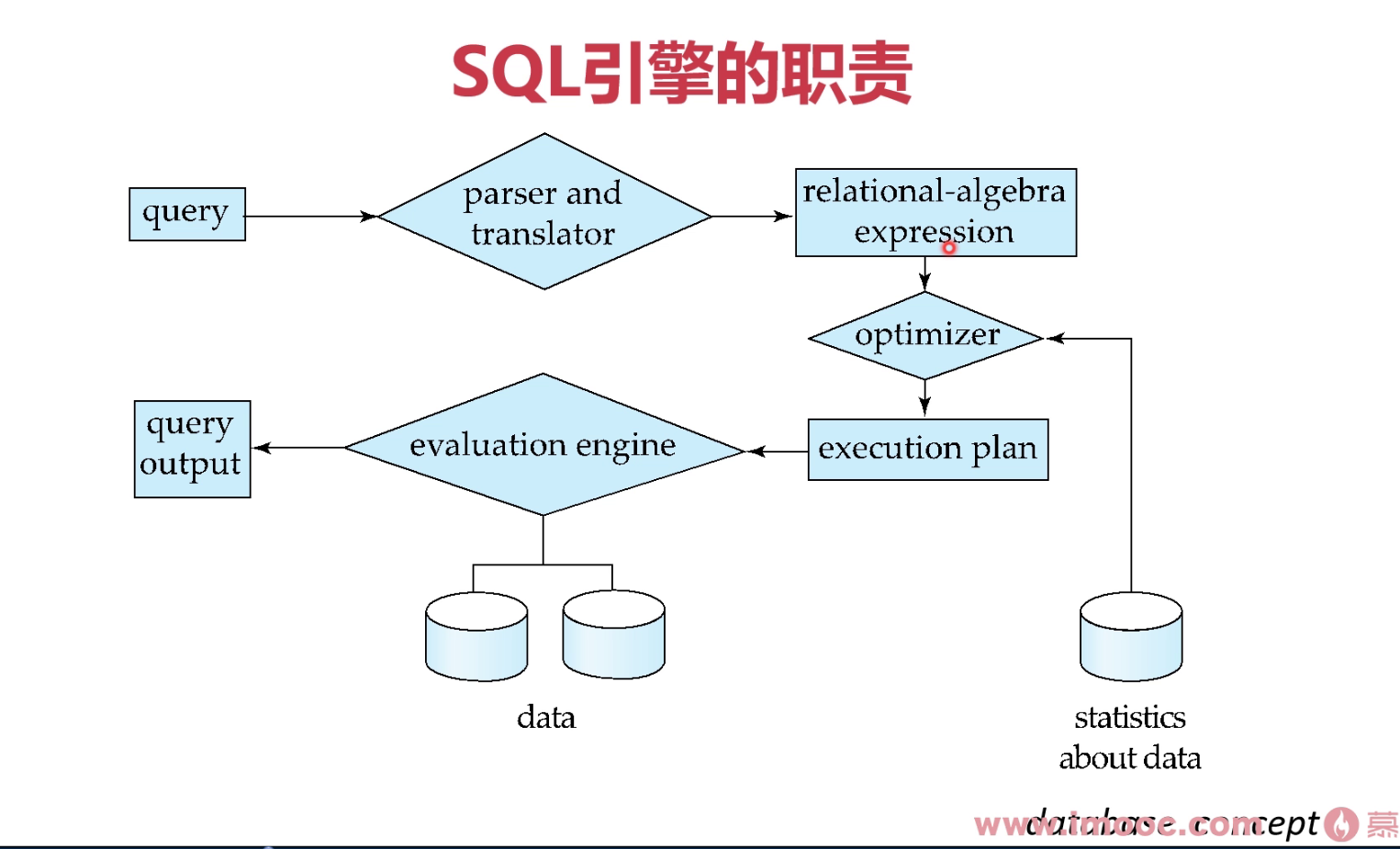

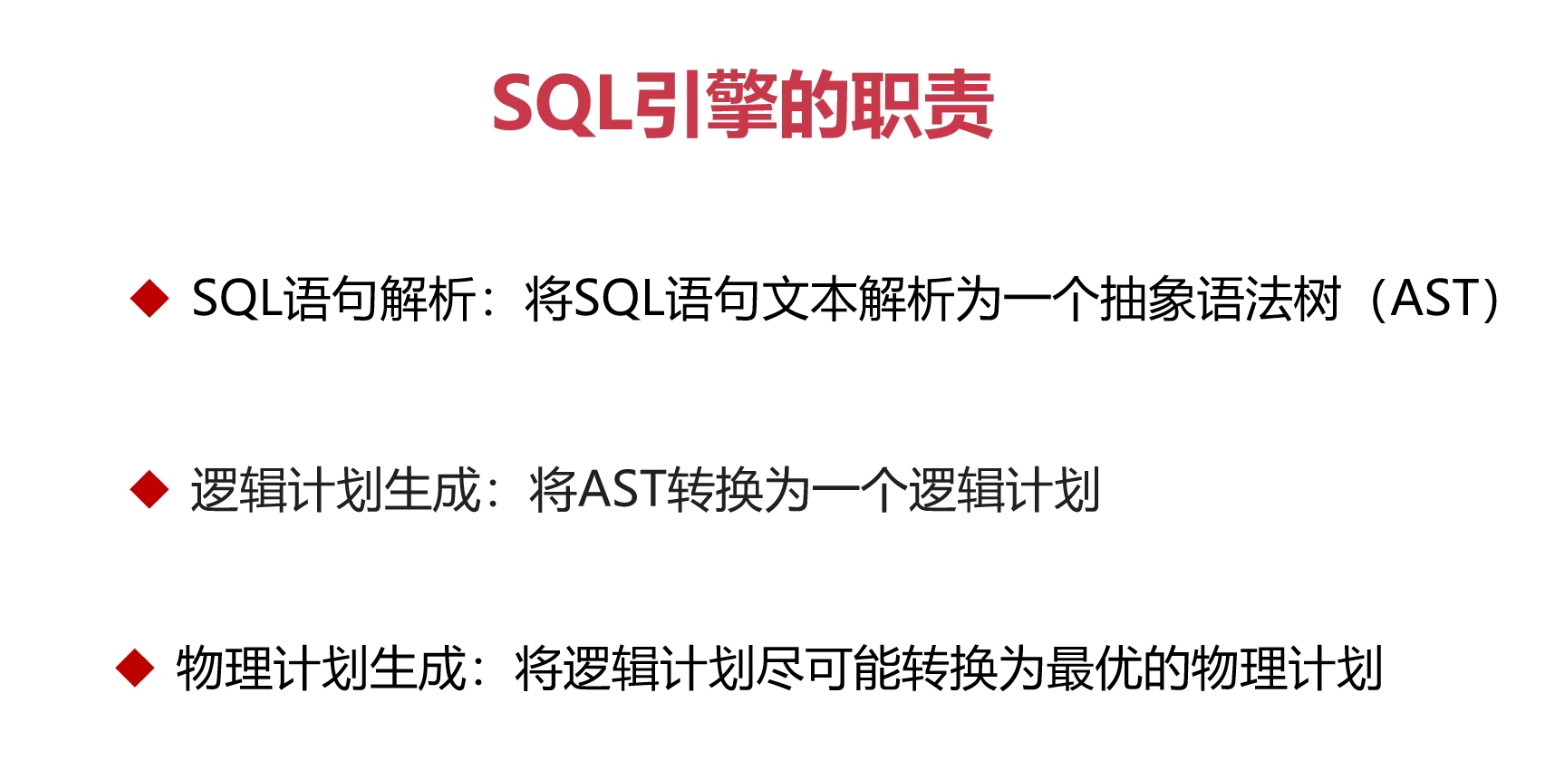

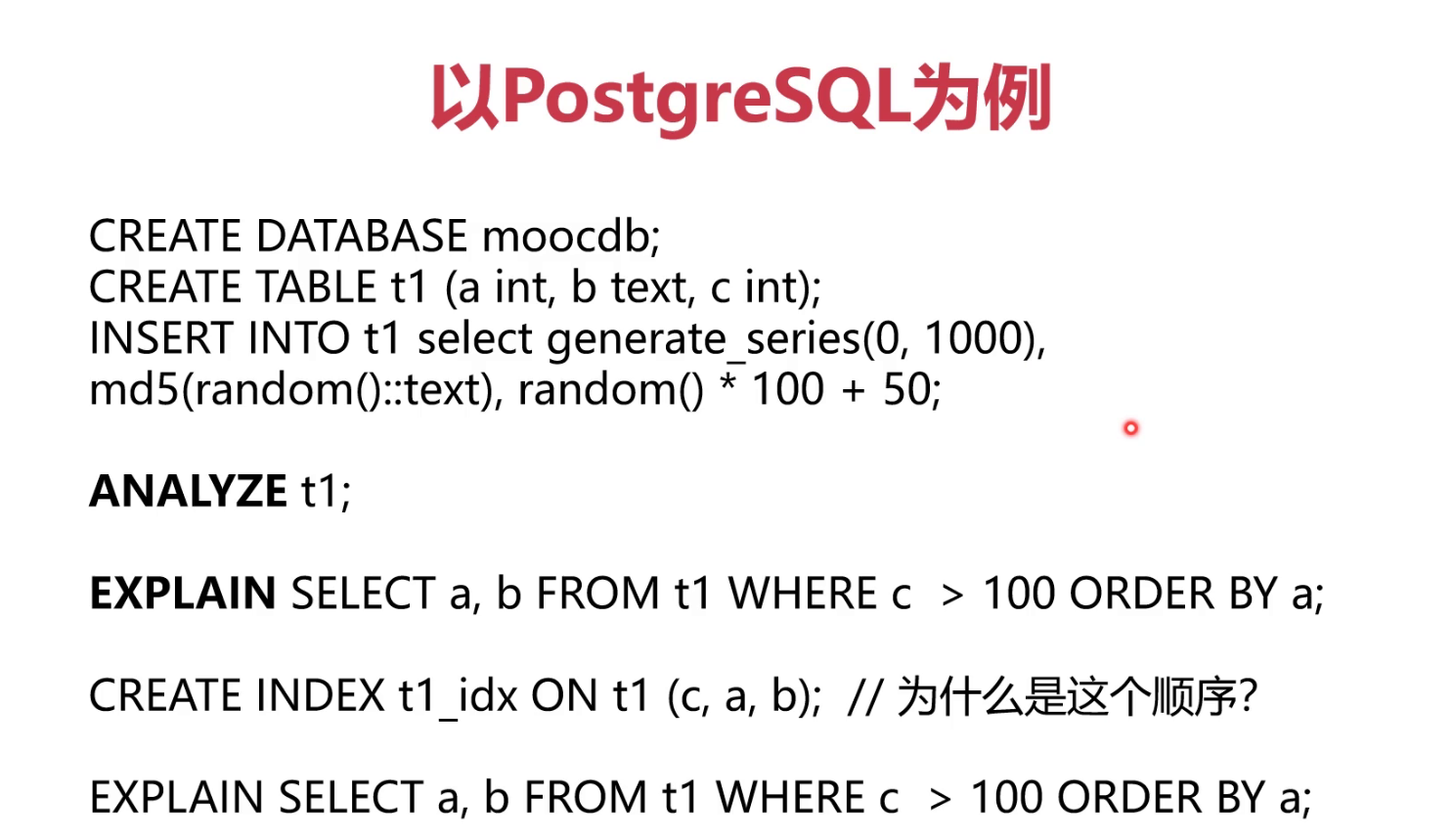

4-1 深入学习SQL模块的原理

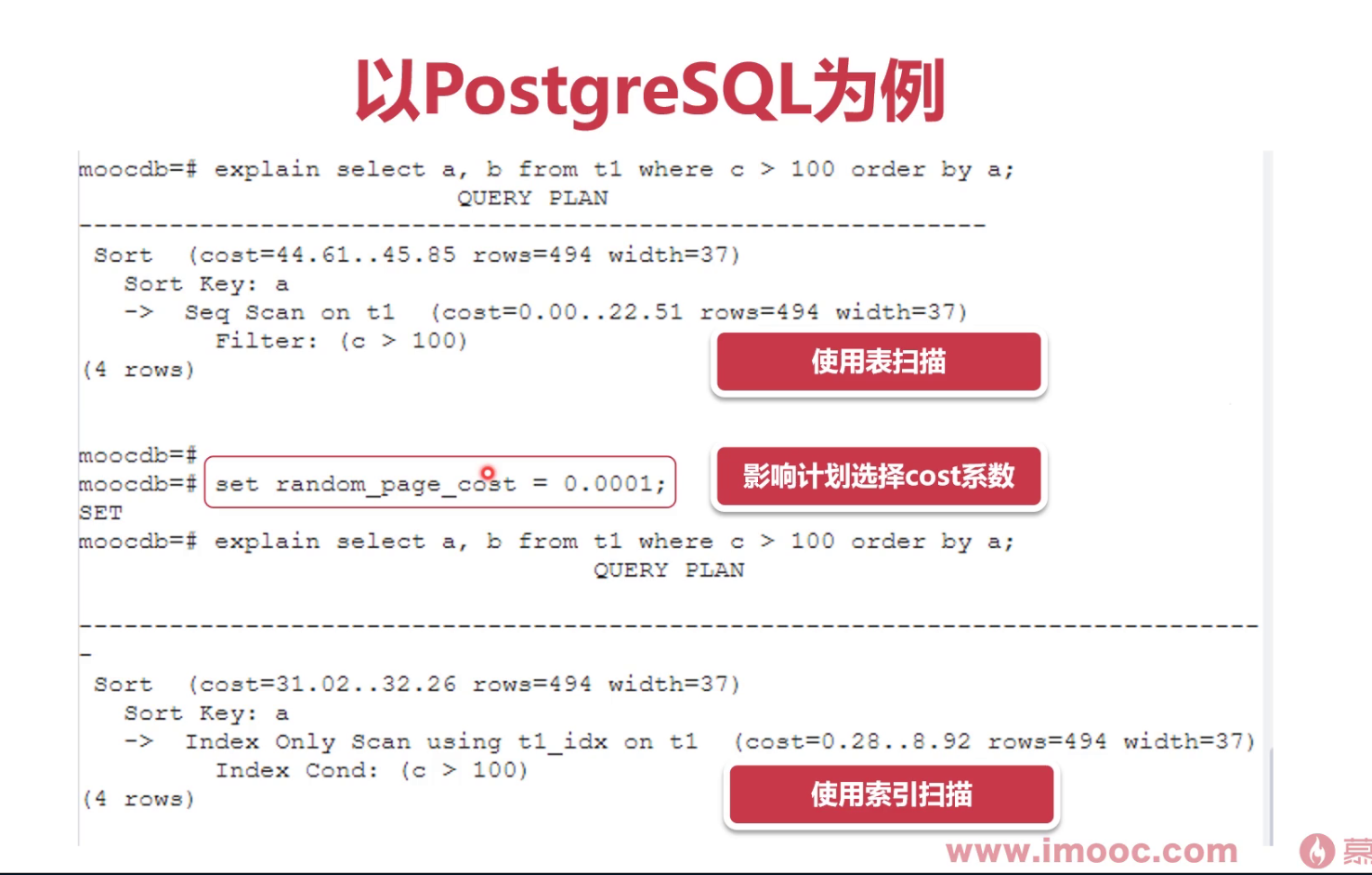

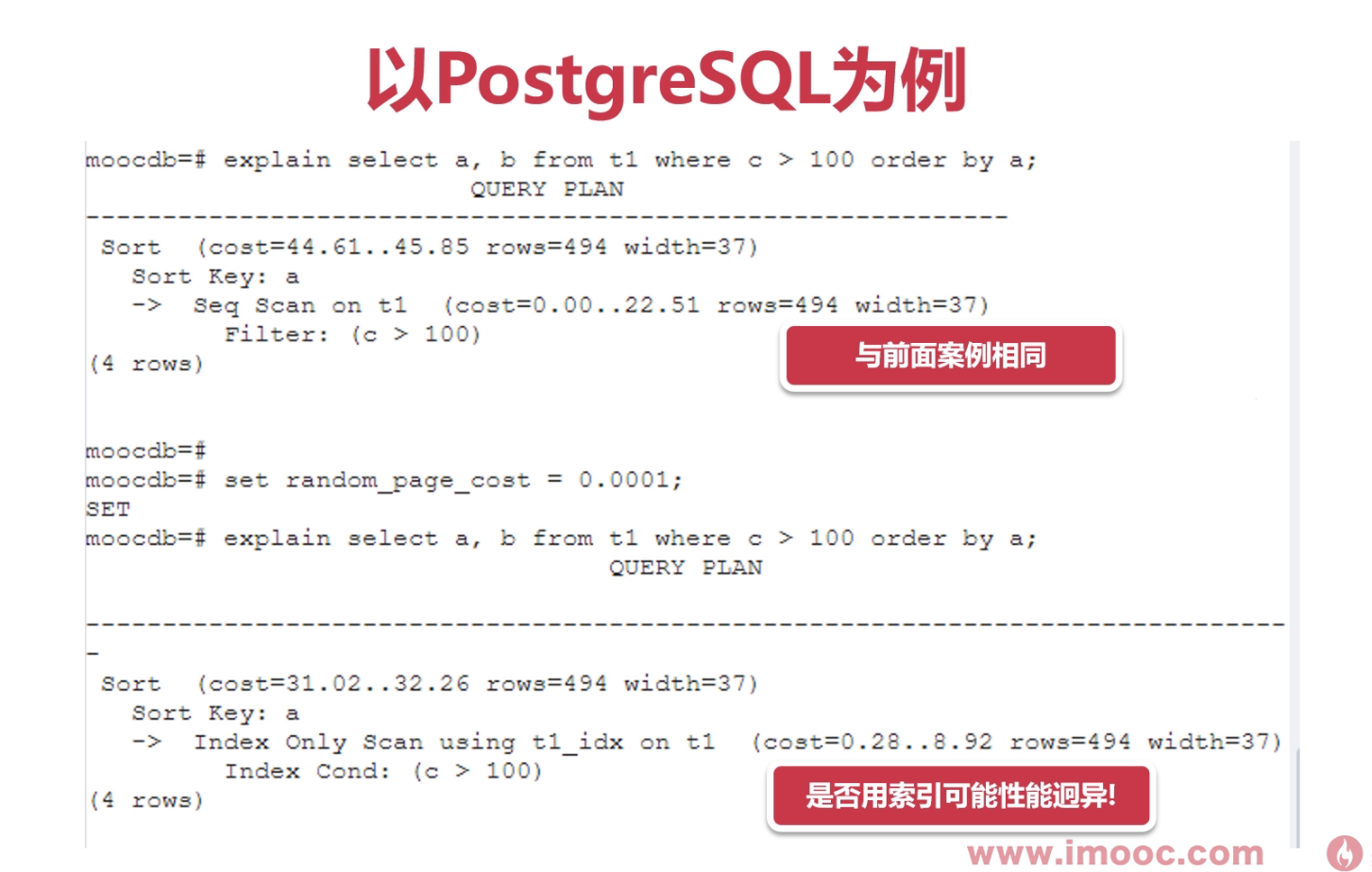

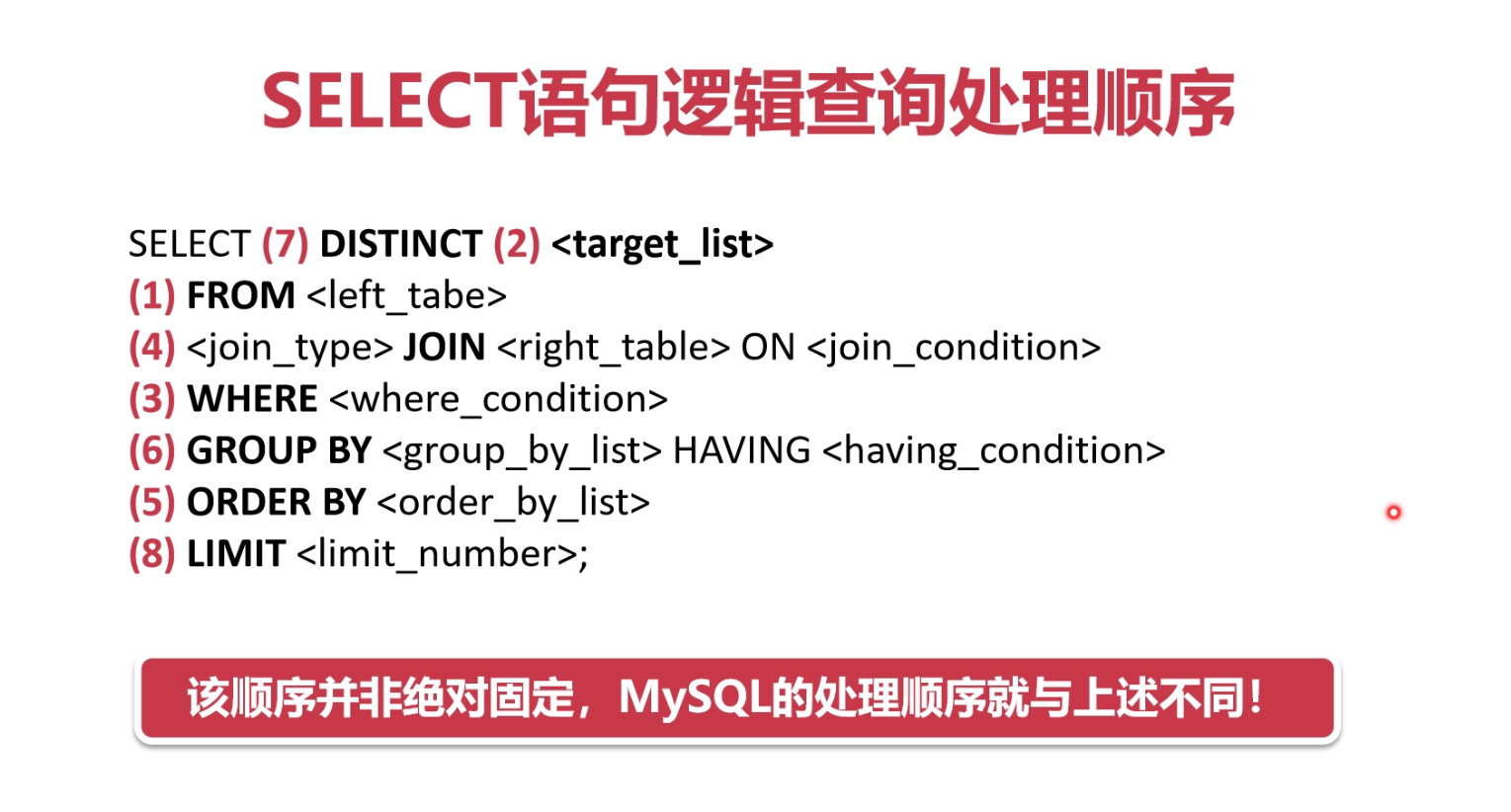

4-2 探索数据库SQL语句执行中的坑

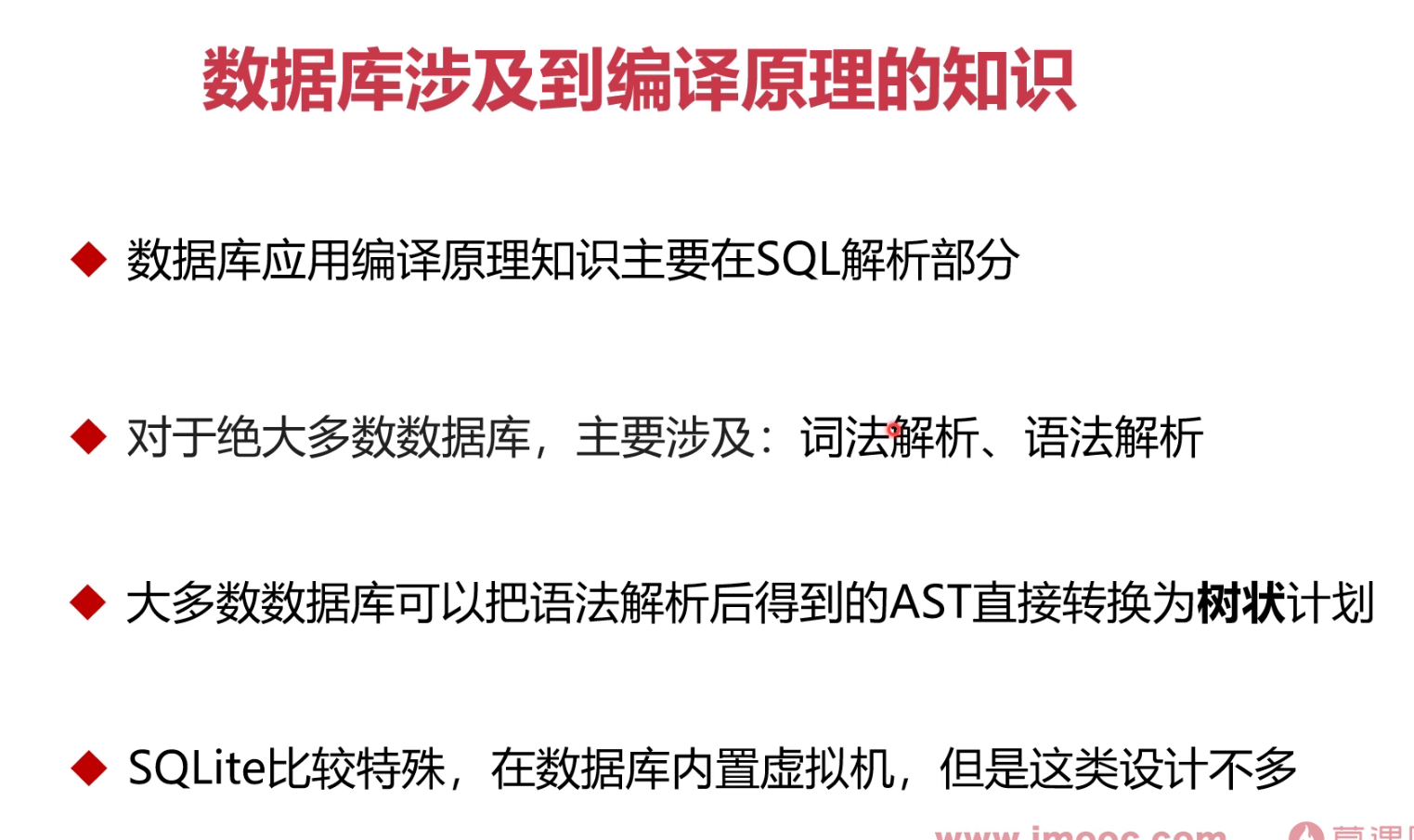

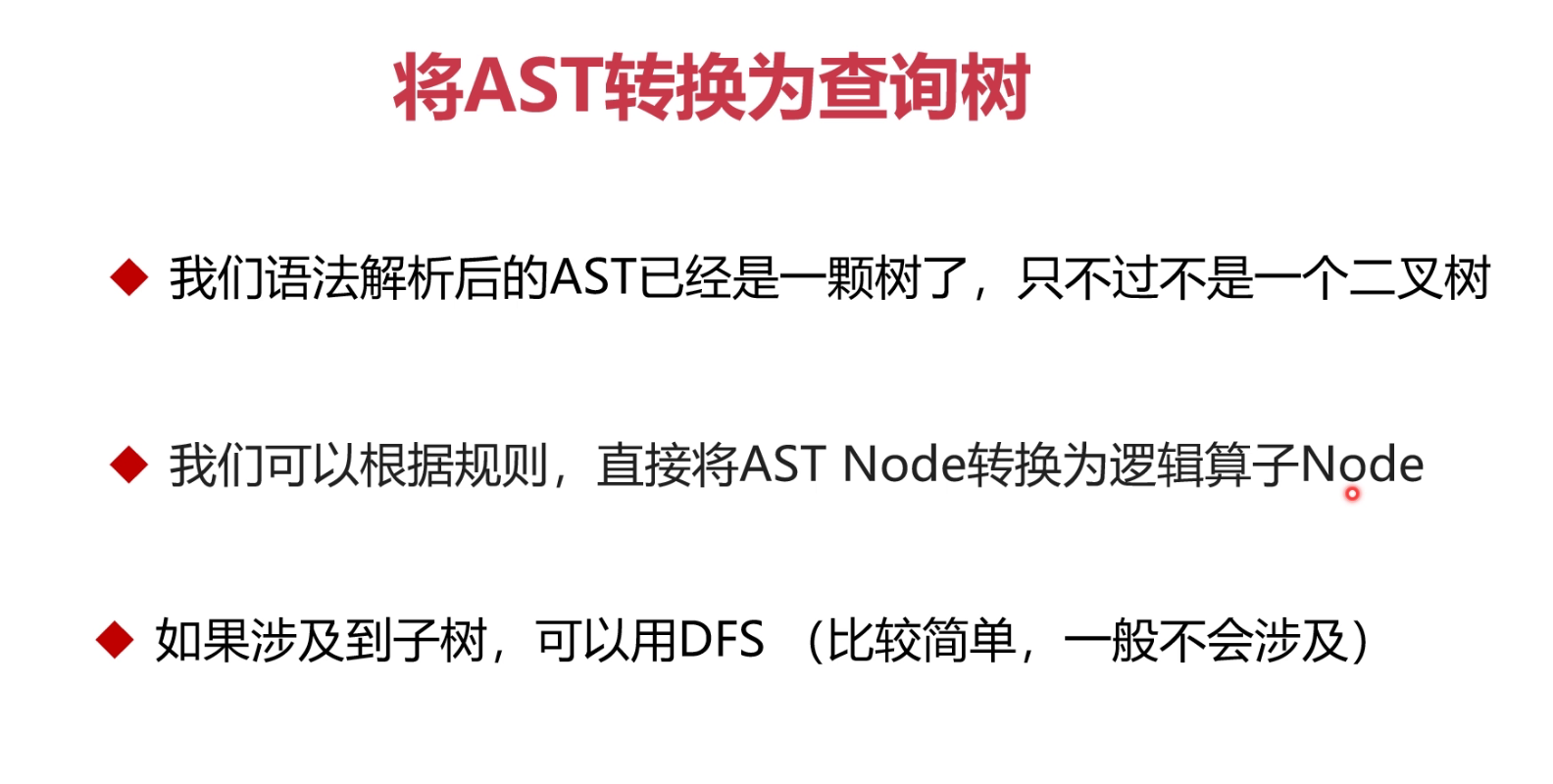

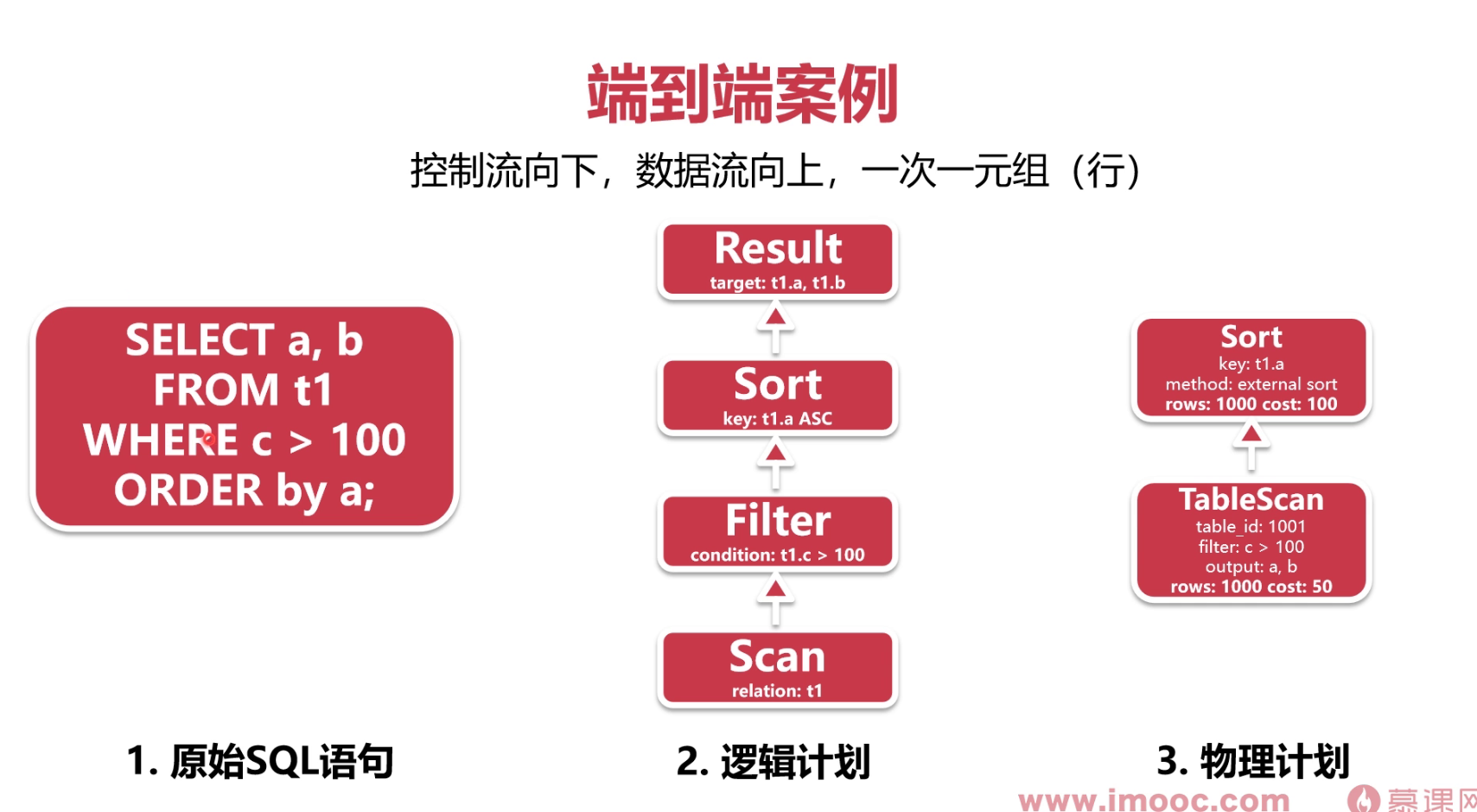

4-3 了解编译原理，知道语句是如何变成执行计划的

4-4 代码实现：实现一个SQL语法解析器（一）

# imoocdb/sql/parser/parser.py
import sly  # 语法解析
import re  # 正则表达式


# select a,b from t1;
# select a,b from t1 where a>c;
# select a,b from t1 where a>c order by b;
# select a, count(a) from t1 group by a where b > 100;

class SQLLexer(sly.Lexer):
    tokens = {
        # DDL
        CREATE, DROP,
        DATABASE, TABLE, INDEX

        # others
        EXPLAN

        # select
        SELECT, STAR, FROM, WHERE, GROUP_BY, ORDER_BY,
        JOIN,FULL,INNER,OUTER,LEFT,RIGHT,ON
    }

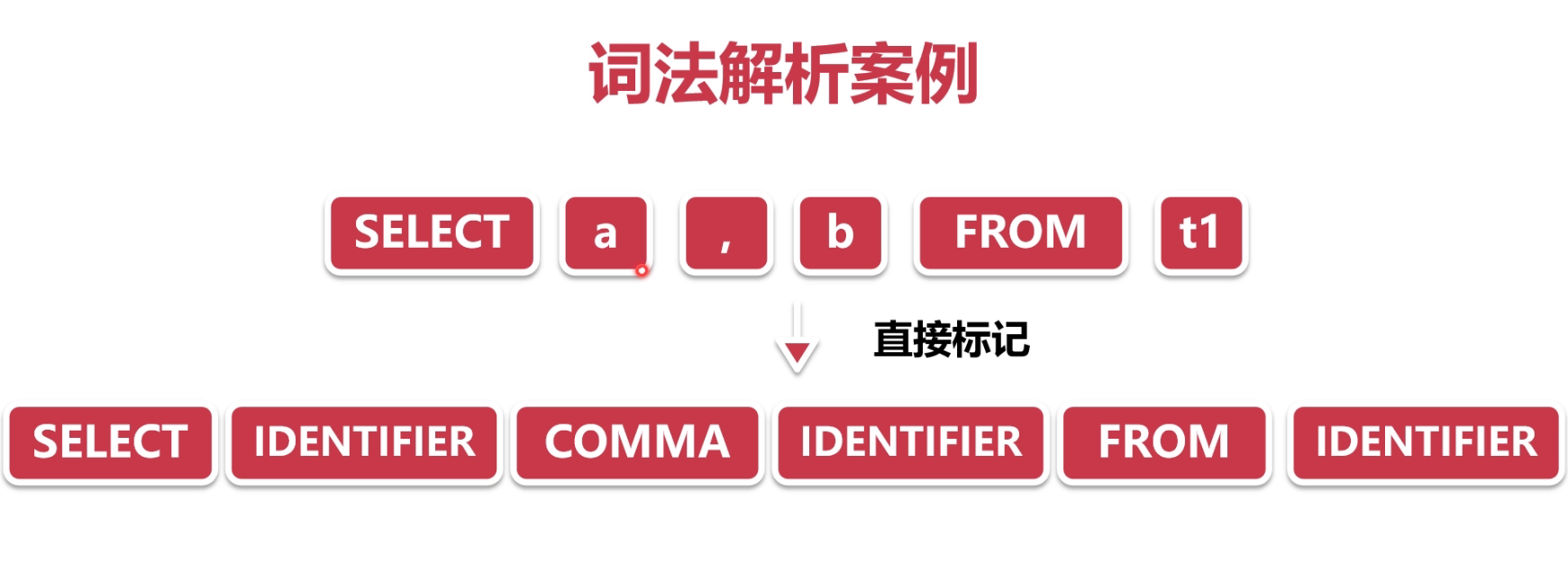

# SQL语法解析器

业内如果是C/C++实现, 会套用bison, flex这些库来完成语法解析和词法解析过程
用于编译器的前端语法解析和词法解析部分, 涉及比较复杂的算法和数据结构, 因此我们也套用python的库

- sly
- ply

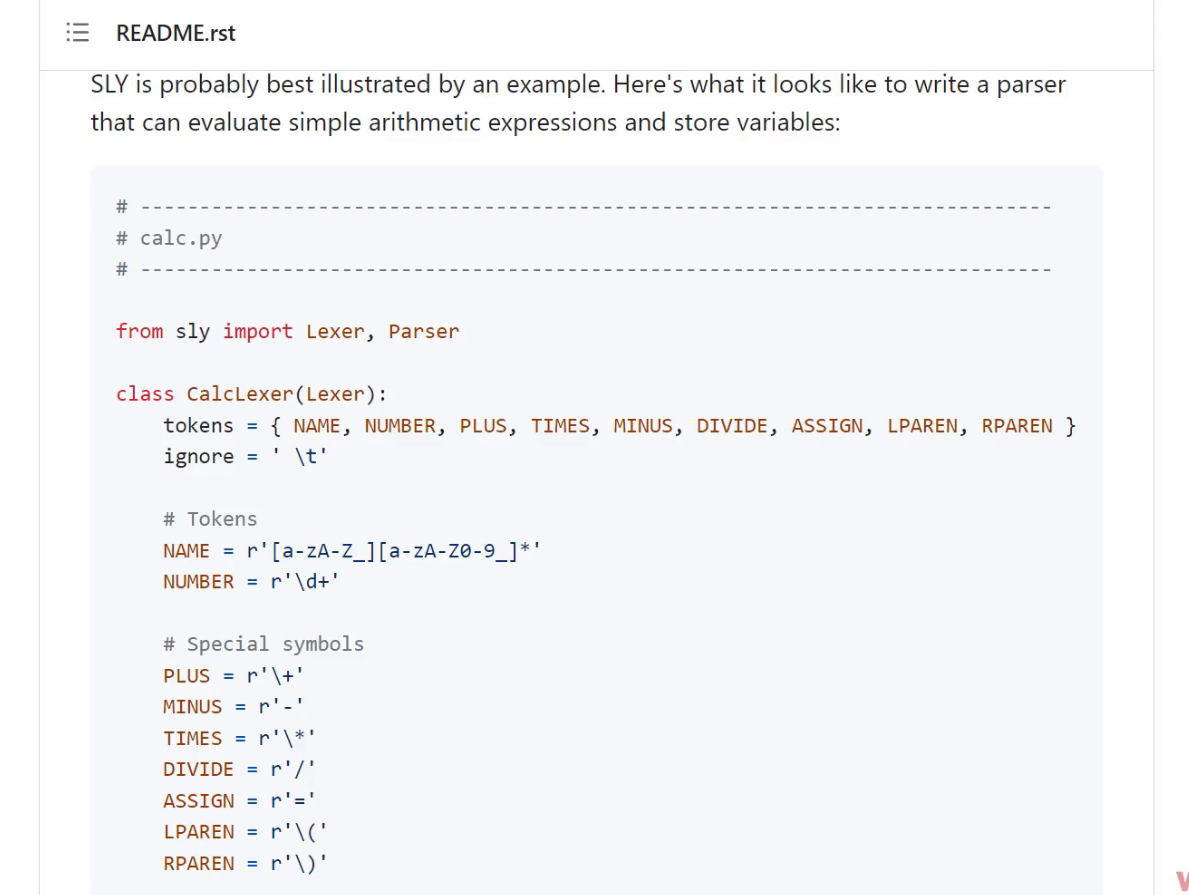

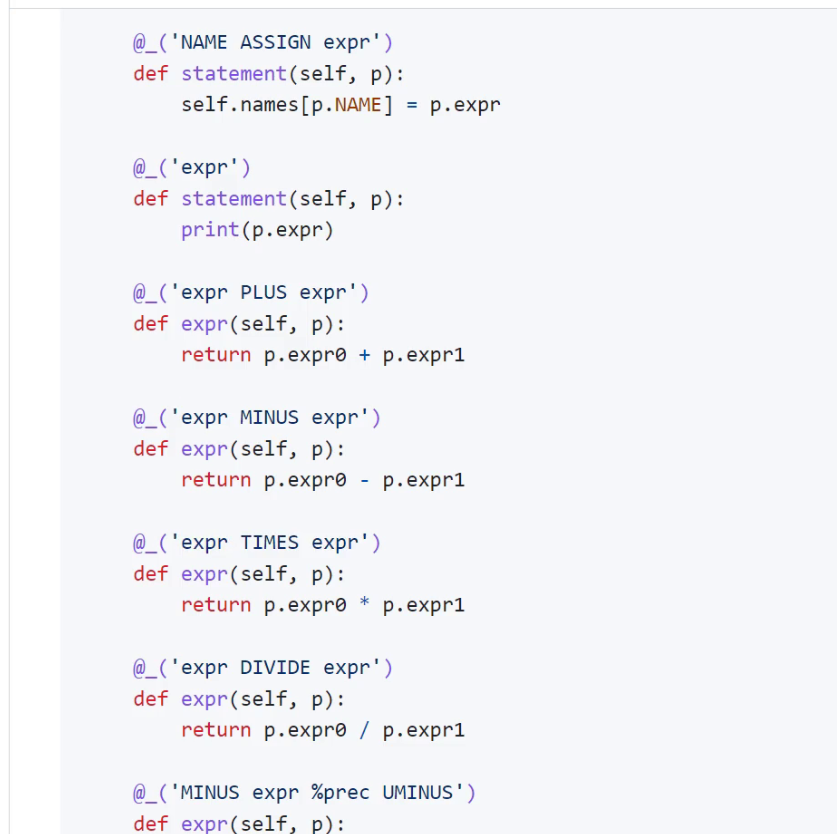

[sly的代码案例(计算器)](https://github.com/debeaz/sly)

4-5 代码实现：实现一个SQL语法解析器（二）

# imoocdb/sql/parser/parser.py
import sly  # 语法解析
import re  # 正则表达式


# select a,b from t1;
# select a,b from t1 where a>c;
# select a,b from t1 where a>c order by b;
# select a, count(a) from t1 group by a where b > 100;

class SQLLexer(sly.Lexer):
    # 还可以ignore注释
    ignore = '\t\n\r'
    reflags = re.IGNORECASE

    tokens = {
        # DDL
        CREATE, DROP,
        DATABASE, TABLE, INDEX,

        # others
        EXPLAIN,

        # select
        SELECT, STAR, FROM, WHERE, GROUP_BY, ORDER_BY,
        JOIN, FULL, INNER, OUTER, LEFT, RIGHT, ON,

        # DML:
        INSERT, DELETE, INTO, VALUES, UPDATE, SET,

        # punctuation
        DOT, COMMA, LPAREN, RPAREN,

        # operators
        EQ, NE, GT, GEQ, LT, LEQ,
        AND, OR, NOT,

        # data type
        ID,
        INTEGER, QUOTE_STRING, DQUOT_STRING, NULL,
    }

    # DDL
    CREATE = 'CREATE',
    DROP = 'DROP',
    DATABASE = 'DATABASE',
    TABLE = 'TABLE',
    INDEX = 'INDEX'

    # others
    EXPLAIN = 'EXPLAIN',

    # select
    SELECT = 'SELECT',
    STAR = r'\*',
    FROM = 'FROM',
    WHERE = 'WHERE',
    GROUP_BY = 'GROUP BY',
    ORDER_BY = 'ORDER BY',
    JOIN = 'JOIN',
    FULL = 'FULL'
    INNER = 'INNER'
    OUTER = 'OUTER'
    LEFT = 'LEFT'
    RIGHT = 'RIGHT'
    ON = 'ON'

    # DML:
    INSERT = 'INSERT'
    DELETE = 'DELETE'
    INTO = 'INTO'
    VALUES = 'VALUES'
    UPDATE = 'UPDATE'
    SET = 'SET'

    # punctuation
    DOT = r'\.'
    COMMA = r'\,'
    LPAREN = r'\('
    RPAREN = r'\)'

    # operators
    EQ = r'='
    NE = r'!='
    GT = r'>'
    GEQ = r'>='
    LT = r'<'
    LEQ = r'<='
    AND = r'\bAND\b'
    OR = r'\bOR\b'
    NOT = r'\bNOT\b'

    INTEGER=r'\d+'


    # identify
    @_(r'[a-zA-Z_][a-zA-Z_0-9]*')
    def ID(self,t):
        return t

    QUOTE_STRING=r"'[^']*'"
    DQUOT_STRING=r'"[^"]*"'

4-6 代码实现：实现一个SQL语法解析器（三）

# imoocdb/sql/parser/ast.py
class ASTNode:
    def __init__(self):
        pass

    def __repr__(self):
        # 类似 java tostring
        fields = []
        for k, v in self.__dict__.items():
            # 下划线开头的认为是私有属性
            if k.startswith('_'):
                continue
            fields.append(f'{k}={v}')
        return f'<{self.__class__.__name__}> {" ".join(fields)}'


class Select(ASTNode):
    def __init__(self, targets):
        super().__init__()
        self.targets = targets
        self.from_table = None
        # 下面这些子句(clause)也是继承astNode
        self.where = None
        self.group_by = None
        self.order_by = None
        # 如果需要更多, 可以继续扩展
        # self.distinct=True


class OrderBy(ASTNode):
    def __init__(self, column, direction):
        super().__init__()
        self.column = column
        self.direction = direction


class JoinType:
    LEFT_JOIN = 'LEFT JOIN'
    RIGHT_JOIN = 'RIGHT JOIN'
    INNER_JOIN = 'INNER JOIN'
    FULL_JOIN = 'FULL JOIN'
    CROSS_JOIN = 'CROSS JOIN'  # 笛卡尔积


class Join(ASTNode):
    def __init__(self, left, right, join_type: JoinType, condition=None):
        super().__init__()
        self.left = left
        self.right = right
        self.join_type = join_type
        self.condition = condition


class Identifier(ASTNode):
    def __init__(self, parts=None):
        super().__init__()
        self.parts = parts


class Star(ASTNode):
    pass


class Constant(ASTNode):
    def __init__(self, value=None):
        super().__init__()
        self.value = value


class Operation(ASTNode):
    def __init__(self, op, args):
        super().__init__()
        self.op = op.lower()  # todo: 可以进一步删除空格等
        # 将args的值复制, 防止内部更改引起原数据不可知的变化
        self.args = list(args)


class BinaryOperation(Operation):
    pass


class FunctionOperation(Operation):
    pass

# imoocdb/sql/parser/parser.py
import sly  # 语法解析
import re  # 正则表达式


# select a,b from t1;
# select a,b from t1 where a>c;
# select a,b from t1 where a>c order by b;
# select a, count(a) from t1 group by a where b > 100;

class SQLLexer(sly.Lexer):
    # 还可以ignore注释
    ignore = '\t\n\r'
    reflags = re.IGNORECASE

    tokens = {
        # DDL
        CREATE, DROP,
        DATABASE, TABLE, INDEX,

        # others
        EXPLAIN,

        # select
        SELECT, STAR, FROM, WHERE, GROUP_BY, ORDER_BY,
        JOIN, FULL, INNER, OUTER, LEFT, RIGHT, ON,

        # DML:
        INSERT, DELETE, INTO, VALUES, UPDATE, SET,

        # punctuation
        DOT, COMMA, LPAREN, RPAREN,

        # operators
        EQ, NE, GT, GEQ, LT, LEQ,
        AND, OR, NOT,

        # data type
        ID,
        INTEGER, QUOTE_STRING, DQUOT_STRING, NULL,
    }

    # DDL
    CREATE = 'CREATE',
    DROP = 'DROP',
    DATABASE = 'DATABASE',
    TABLE = 'TABLE',
    INDEX = 'INDEX'

    # others
    EXPLAIN = 'EXPLAIN',

    # select
    SELECT = 'SELECT',
    STAR = r'\*',
    FROM = 'FROM',
    WHERE = 'WHERE',
    GROUP_BY = 'GROUP BY',
    ORDER_BY = 'ORDER BY',
    JOIN = 'JOIN',
    FULL = 'FULL'
    INNER = 'INNER'
    OUTER = 'OUTER'
    LEFT = 'LEFT'
    RIGHT = 'RIGHT'
    ON = 'ON'

    # DML:
    INSERT = 'INSERT'
    DELETE = 'DELETE'
    INTO = 'INTO'
    VALUES = 'VALUES'
    UPDATE = 'UPDATE'
    SET = 'SET'

    # punctuation
    DOT = r'\.'
    COMMA = r'\,'
    LPAREN = r'\('
    RPAREN = r'\)'

    # operators
    EQ = r'='
    NE = r'!='
    GT = r'>'
    GEQ = r'>='
    LT = r'<'
    LEQ = r'<='
    AND = r'\bAND\b'
    OR = r'\bOR\b'
    NOT = r'\bNOT\b'

    INTEGER=r'\d+'


    # identify
    @_(r'[a-zA-Z_][a-zA-Z_0-9]*')
    def ID(self,t):
        return t

    QUOTE_STRING=r"'[^']*'"
    DQUOT_STRING=r'"[^"]*"'

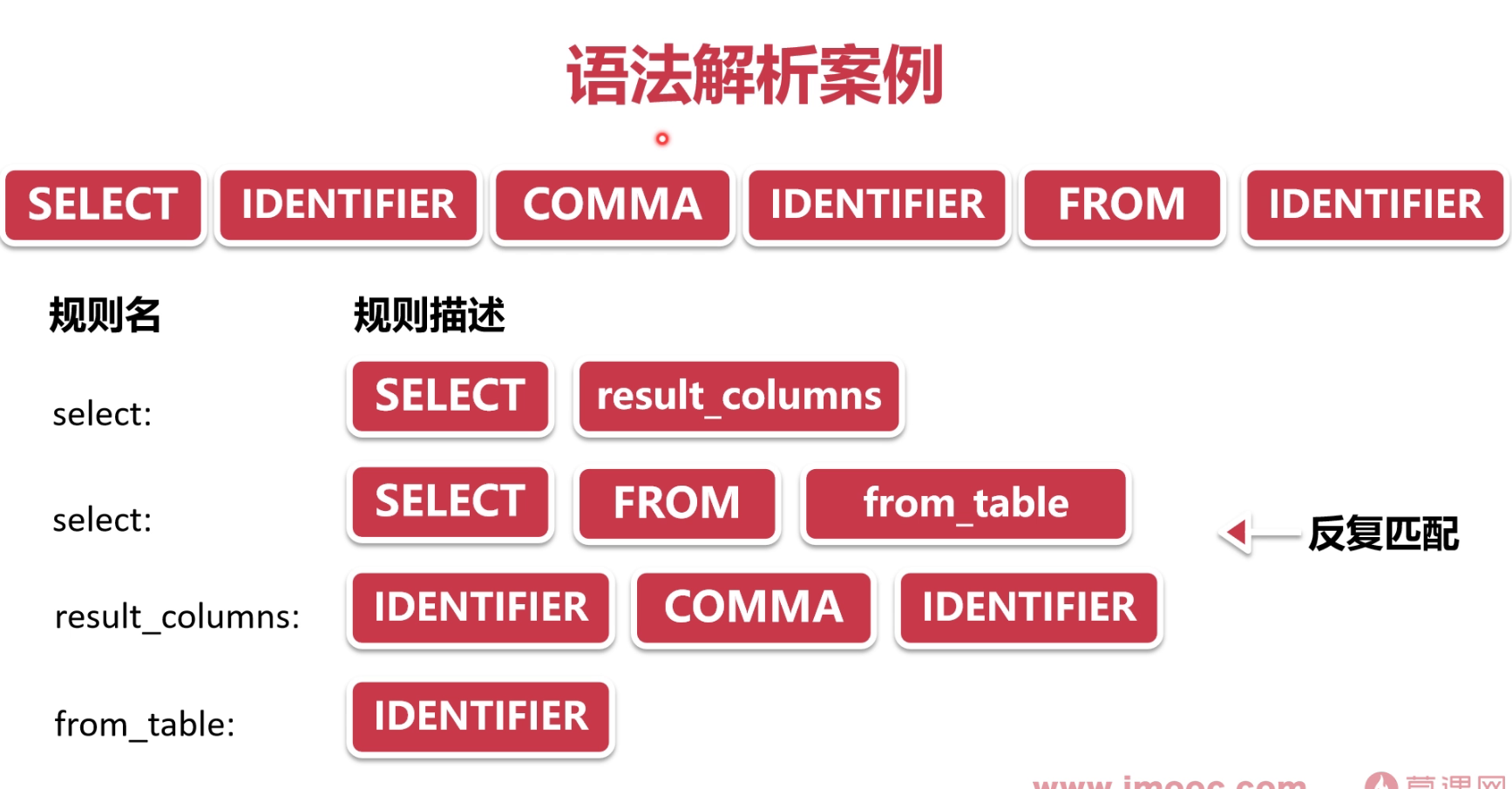

4-7 代码实现：实现一个SQL语法解析器（四）

# imoocdb/sql/parser/parser.py
from .ast import Select, Star


class SQLParser(sly.Parser):
    # select *; -> Select([Star()])

    @_('SELECT target_columns')
    def select(self, p):
        return Select(targets=p.target_columns)

    # 递归
    @_('target_columns COMMA target_column')
    def target_columns(self, p):
        p.target_columns.append(p.target_column)

    @_('target_column')
    def target_column(self, p):
        return [p.target_column]

    @_('star')
    def target_column(self, p):
        return p.star

    @_('STAR')
    def star(self,p):
        return Star()

    @_('expr', 'function')
    def target_column(self, p):
        return p.p[0]

    @_('')
    def expr(self, p):
        pass

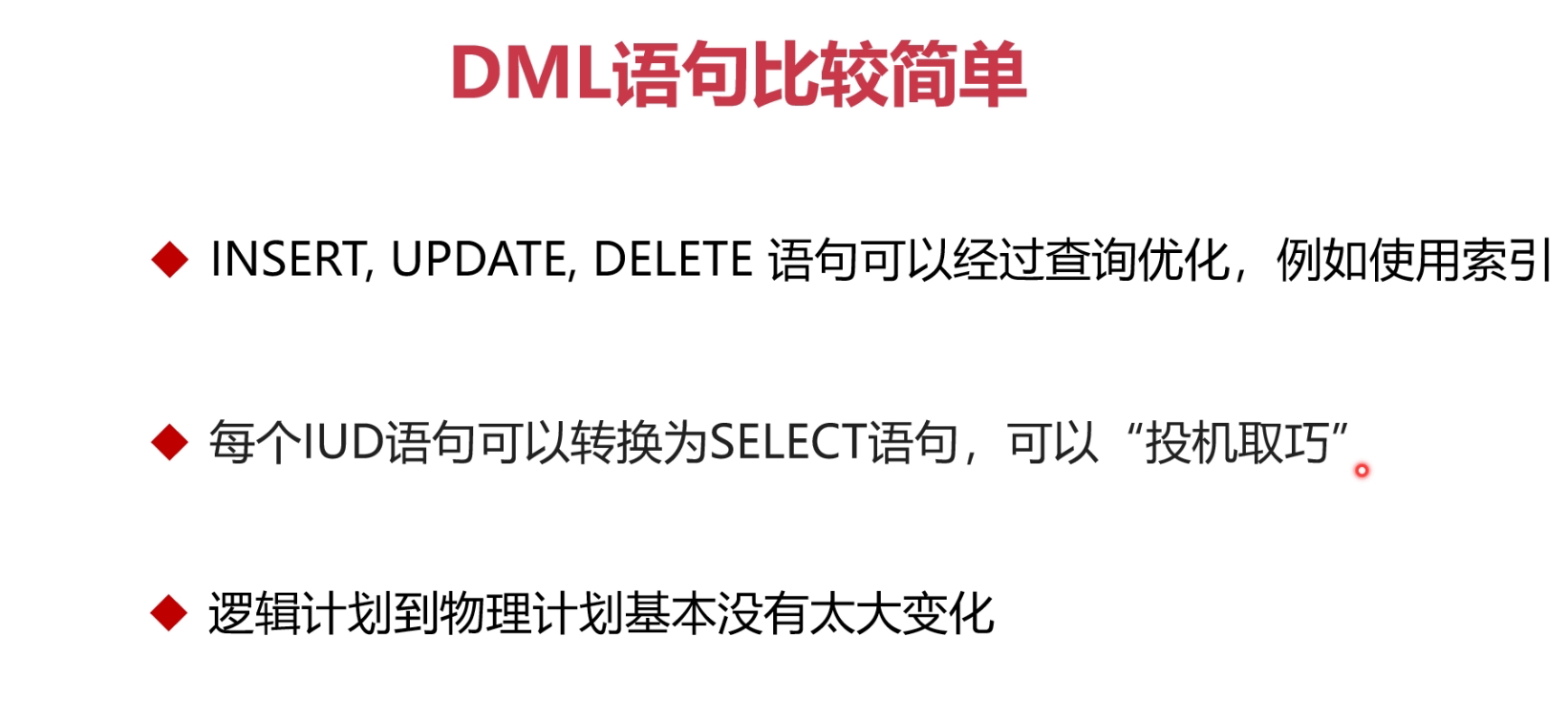

4-8 代码实现：完善增删查改语句的逻辑（一）

# imoocdb/sql/parser/parser.py
import sly  # 语法解析
import re  # 正则表达式


# select a,b from t1;
# select a,b from t1 where a>c;
# select a,b from t1 where a>c order by b;
# select a, count(a) from t1 group by a where b > 100;


class SQLLexer(sly.Lexer):
    ignore = ' \t\n\r'
    reflags = re.IGNORECASE

    tokens = {
        # DDL
        CREATE, DROP,
        DATABASE, TABLE, INDEX,

        # others
        EXPLAIN,

        # select
        SELECT, STAR, FROM, WHERE, GROUP_BY, ORDER_BY, ASC, DESC,
        JOIN, FULL, INNER, OUTER, LEFT, RIGHT, ON,

        # DML: INSERT, UPDATE, DELETE
        INSERT, DELETE, INTO, VALUES, UPDATE, SET,

        # punctuation
        DOT, COMMA, LPAREN, RPAREN,

        # operators
        EQ, NE, GT, GEQ, LT, LEQ,
        AND, OR, NOT,

        # data type
        ID,
        INTEGER, QUOTE_STRING, DQUOTE_STRING, NULL,

        # command
        CHECKPOINT, SHOW
    }

    CREATE = 'CREATE'
    DROP = 'DROP'
    DATABASE = 'DATABASE'
    TABLE = 'TABLE'
    INDEX = 'INDEX'

    # others
    EXPLAIN = 'EXPLAIN'

    # select
    SELECT = 'SELECT'
    STAR = r'\*'
    FROM = 'FROM'
    WHERE = 'WHERE'
    GROUP_BY = 'GROUP BY'
    ORDER_BY = 'ORDER BY'
    ASC = 'ASC'
    DESC = 'DESC'
    JOIN = 'JOIN'
    FULL = 'FULL'
    INNER = 'INNER'
    OUTER = 'OUTER'
    LEFT = 'LEFT'
    RIGHT = 'RIGHT'
    ON = 'ON'

    # DML: INSERT, UPDATE, DELETE
    INSERT = 'INSERT'
    DELETE = 'DELETE'
    INTO = 'INTO'
    VALUES = 'VALUES'
    UPDATE = 'UPDATE'
    SET = 'SET'

    # command
    CHECKPOINT = 'CHECKPOINT'
    SHOW = 'SHOW'

    # punctuation
    DOT = r'\.'
    COMMA = r','
    LPAREN = r'\('
    RPAREN = r'\)'

    # operators
    EQ = r'='
    NE = r'!='
    GT = r'>'
    GEQ = r'>='
    LT = r'<'
    LEQ = r'<='
    AND = r'\bAND\b'
    OR = r'\bOR\b'
    NOT = r'\bNOT\b'

    INTEGER = r'\d+'

    @_(r'[a-zA-Z_][a-zA-Z0-9_\.]*')
    def ID(self, t):
        return t

    QUOTE_STRING = r"'[^']*'"
    DQUOTE_STRING = r'"[^"]*"'


# from .ast import *
from imoocdb.sql.parser.ast import *


class SQLParser(sly.Parser):
    tokens = SQLLexer.tokens

    # main entrance
    # 保证入口点的单一
    @_('select',
       'update',
       'insert',
       'delete',
       'create_table',
       'create_index',
       'command')
    def query(self, p):
        return p[0]

    # command 解析
    @_('CHECKPOINT',
       'SHOW expr_list')
    def command(self, p):
        if len(p) > 1:
            return Command(p[0], p[1])
        else:
            return Command(p[0])

    # select * ...;  -> Select([Star()]) ...
    @_('SELECT target_columns')
    def select(self, p):
        return Select(targets=p.target_columns)

    @_('target_columns COMMA target_column')
    def target_columns(self, p):
        p.target_columns.append(p.target_column)
        return p.target_columns

    @_('target_column')
    def target_columns(self, p):
        return [p.target_column]

    @_('star')
    def target_column(self, p):
        return p.star

    @_('STAR')
    def star(self, p):
        return Star()

    @_('expr',
       'function')
    def target_column(self, p):
        return p[0]

    # ===== 上面是，带领大家一起实现的部分 =====
    # ===== 由于时间关系，下面是补充其他类似的部分 ====
    @_('id LPAREN expr_list_or_nothing RPAREN')
    def function(self, p):
        args = p.expr_list_or_nothing
        if not args:
            args = []
        return FunctionOperation(op=p.id, args=args)

    # from 子句
    @_('select FROM from_table',
       'select FROM cross_join_tables',
       'select FROM join_tables')
    def select(self, p):
        select = p.select
        if select.from_table:
            raise SyntaxError('duplicated from clause.')

        select.from_table = p[2]
        return select

    @_('identifier')
    def from_table(self, p):
        return p.identifier

    # where 子句
    @_('select WHERE expr')
    def select(self, p):
        select = p.select
        if select.where:
            raise SyntaxError('duplicated where clause.')
        if not select.from_table:
            raise SyntaxError('not set from clause.')

        where_expr = p.expr
        if not isinstance(where_expr, Operation):
            raise SyntaxError(
                f"Require an operation for WHERE clause.")
        select.where = where_expr
        return select

    # order by 子句
    @_('select ORDER_BY ordering_term')
    def select(self, p):
        select = p.select
        if select.order_by:
            raise SyntaxError('duplicated order by clause.')
        if not select.from_table:
            raise SyntaxError('not set from clause.')
        select.order_by = p.ordering_term
        return select

    @_('identifier DESC')
    def ordering_term(self, p):
        return OrderBy(column=p.identifier, direction='DESC')

    @_('identifier',
       'identifier ASC')
    def ordering_term(self, p):
        return OrderBy(column=p.identifier, direction='ASC')

    # Group by 子句
    @_('select GROUP_BY expr_list')
    def select(self, p):
        select = p.select
        if select.group_by:
            raise SyntaxError('duplicated group by clause.')
        if not select.from_table:
            raise SyntaxError('not set from clause.')

        group_by = p.expr_list
        if not isinstance(group_by, list):
            group_by = [group_by]

        select.group_by = group_by
        return select

    # Join 子句
    # 提示：3.11 课后修复该处bug, 语法解析中缺乏ON关键字
    @_('from_table join_clause from_table ON expr')
    def join_tables(self, p):
        return Join(left=p[0],
                    right=p[2],
                    join_type=p.join_clause,
                    condition=p.expr)

    @_(JoinType.LEFT_JOIN,
       JoinType.RIGHT_JOIN,
       JoinType.INNER_JOIN,
       JoinType.FULL_JOIN,
       )
    def join_clause(self, p):
        return f'{p[0]} {p[1]}'

    # 也是隐式的join类型，如 select * from t1, t2;
    @_('from_table COMMA from_table')
    def cross_join_tables(self, p):
        return Join(left=p[0],
                    right=p[2],
                    join_type=JoinType.CROSS_JOIN)

    # 二元表达式
    @_('expr EQ expr',
       'expr NE expr',
       'expr GEQ expr',
       'expr GT expr',
       'expr LEQ expr',
       'expr LT expr',
       'expr AND expr',
       'expr OR expr', )
    def expr(self, p):
        return BinaryOperation(op=p[1], args=(p.expr0, p.expr1))

    # 表达式
    @_('expr_list')
    def expr_list_or_nothing(self, p):
        return p.expr_list

    @_('enum')
    def expr_list(self, p):
        return p.enum

    @_('expr')
    def expr_list(self, p):
        return [p.expr]

    @_('enum COMMA expr')
    def enum(self, p):
        return p.enum + [p.expr]

    @_('expr COMMA expr')
    def enum(self, p):
        return [p.expr0, p.expr1]

    @_('identifier')
    def expr(self, p):
        return p.identifier

    @_('constant')
    def expr(self, p):
        return p.constant

    # 常量的规则
    @_('NULL')
    def constant(self, p):
        return Constant(value=None)

    @_('integer')
    def constant(self, p):
        return Constant(value=int(p.integer))

    @_('string')
    def constant(self, p):
        return Constant(value=str(p[0]))

    @_('identifier DOT identifier')
    def identifier(self, p):
        p.identifier0.parts += p.identifier1.parts
        return p.identifier0

    @_('id')
    def identifier(self, p):
        return Identifier(p[0])

    @_('ID')
    def id(self, p):
        return p[0]

    @_('quote_string',
       'dquote_string')
    def string(self, p):
        return p[0]

    @_('INTEGER')
    def integer(self, p):
        return int(p[0])

    @_('QUOTE_STRING')
    def quote_string(self, p):
        return p[0].strip('\'')

    @_('DQUOTE_STRING')
    def dquote_string(self, p):
        return p[0].strip('\"')

    @_('')
    def empty(self, p):
        pass

    # update 语句的规则实现
    @_('UPDATE identifier SET update_parameter_list',
       'UPDATE identifier SET update_parameter_list WHERE expr')
    def update(self, p):
        where = getattr(p, 'expr', None)
        return Update(
            table=p.identifier,
            columns=p.update_parameter_list,
            where=where
        )

    # update t1 set a = 1, b = 2, ...
    @_('update_parameter',  # 可以透传到该规则上
       'update_parameter_list COMMA update_parameter')
    def update_parameter_list(self, p):
        params = getattr(p, 'update_parameter_list', {})
        params.update(p.update_parameter)
        return params

    # update t1 set a = 1;
    @_('expr EQ expr')
    def update_parameter(self, p):
        return {p.expr0: p.expr1}

    # delete 语句
    @_('DELETE FROM from_table WHERE expr',
       'DELETE FROM from_table')
    def delete(self, p):
        where = getattr(p, 'expr', None)

        if where and not isinstance(where, Operation):
            raise SyntaxError(
                f"WHERE clause must contain boolean condition not: {str(where)}")

        return Delete(table=p.from_table, where=where)

    # insert 语句
    @_('INSERT INTO from_table LPAREN target_columns RPAREN VALUES expr_list_set',
       'INSERT INTO from_table VALUES expr_list_set')
    def insert(self, p):
        columns = getattr(p, 'target_columns', None)
        return Insert(table=p.from_table, columns=columns, values=p.expr_list_set)

    @_('expr_list_set COMMA expr_list_set')
    def expr_list_set(self, p):
        return p.expr_list_set0 + p.expr_list_set1

    @_('LPAREN expr_list RPAREN')
    def expr_list_set(self, p):
        return [p.expr_list]

    # DDL
    # create table
    # e.g., CREATE TABLE t1 (id int, name text, gender int)
    @_('defined_columns COMMA defined_column')
    def defined_columns(self, p):
        p.defined_columns.append(p.defined_column)
        return p.defined_columns

    @_('defined_column')
    def defined_columns(self, p):
        return [p.defined_column]

    @_('id id')
    def defined_column(self, p):
        return [p.id0, p.id1]

    @_('CREATE TABLE identifier LPAREN defined_columns RPAREN')
    def create_table(self, p):
        return CreateTable(p.identifier, p.defined_columns)

    @_('CREATE INDEX identifier ON identifier LPAREN target_columns RPAREN')
    def create_index(self, p):
        return CreateIndex(
            index=p.identifier0, table=p.identifier1,
            columns=p.target_columns
        )

    def error(self, p):
        if p:
            raise SyntaxError(f'Syntax error at token {p.type}: "{p.value}".')
        else:
            raise SyntaxError("Syntax error at end of file.")


def query_parse(sql_stmt):
    lexer = SQLLexer()
    parser = SQLParser()
    tokens = lexer.tokenize(sql_stmt)
    return parser.parse(tokens)


# stmts = [
#     'select a,b from t1',
#     'select a,b from t1 where a > c',
#     'select a,b from t1 where a > c order by b',
#     'select a,count(a) from t1 group by a where b > 100'
# ]
#
# for stmt in stmts:
#     print(query_parse(stmt))

# imoocdb/tests/test_sql_parser.py
from imoocdb.sql.parser.parser import query_parse

def test_parse_select_stmt():
    ast  = query_parse('select a,b from t1')
    assert str(ast)=='<Select> targets=[<Identifier> parts=a, <Identifier> parts=b] from_table=<Identifier> parts=t1 where=None group_by=None order_by=None'
    try:
        query_parse('select a,b from t1 order by b order by a')
    except SyntaxError:
        pass
    else:
        raise AssertionError('should raise an exception')

test_parse_select_stmt()

4-9 代码实现：完善增删查改语句的逻辑（二）

# imoocdb/tests/test_sql_parser.py
from imoocdb.sql.parser.parser import query_parse


def test_parse_select_stmt():
    ast = query_parse('select a,b from t1')
    assert str(
        ast) == '<Select> targets=[<Identifier> parts=a, <Identifier> parts=b] from_table=<Identifier> parts=t1 where=None group_by=None order_by=None'
    try:
        query_parse('select a,b from t1 order by b order by a')
    except SyntaxError:
        pass
    else:
        raise AssertionError('should raise an exception')

test_parse_select_stmt()

def test_parse_dml_stmt():
    ast = query_parse('update t1 set a = 1')
    print(ast)


test_parse_dml_stmt()

# imoocdb/sql/parser/ast.py
# ...
class Update(ASTNode):
    def __init__(self, table, columns, where):
        super().__init__()

        # update t1 set a=1 where b>100;
        self.table = table
        # 期望column是字典(set x=x)
        assert isinstance(columns, dict)

        self.columns = columns
        self.where = where

4-10 我们的产品应该支持哪些功能

4-11 如何把语法树变成查询树

4-12 代码实现：将AST转换为查询树（一）
