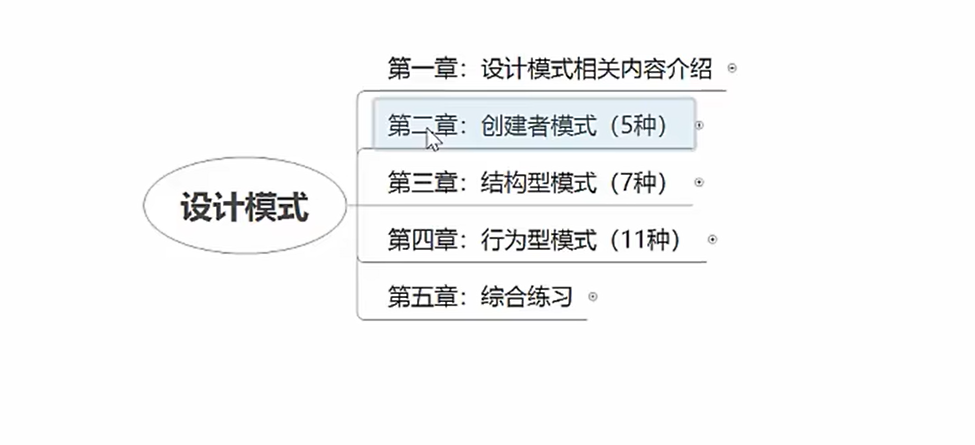

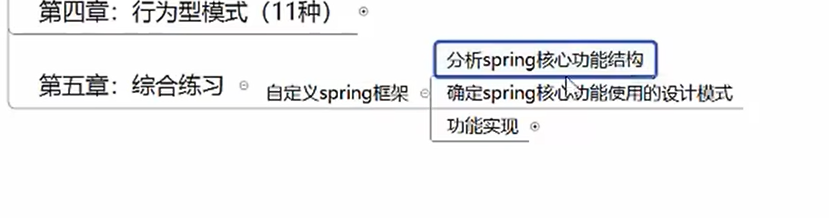

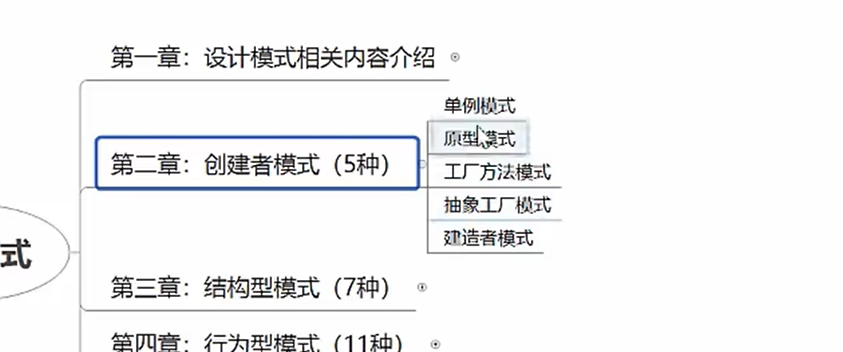

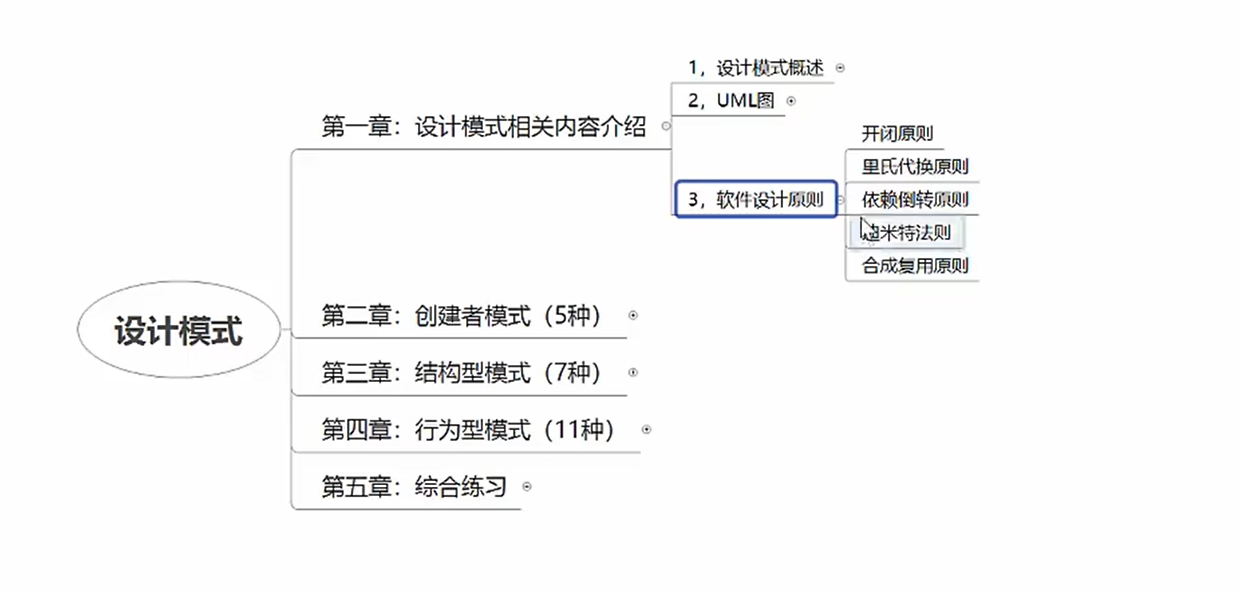

课程介绍

1. 设计模式概述

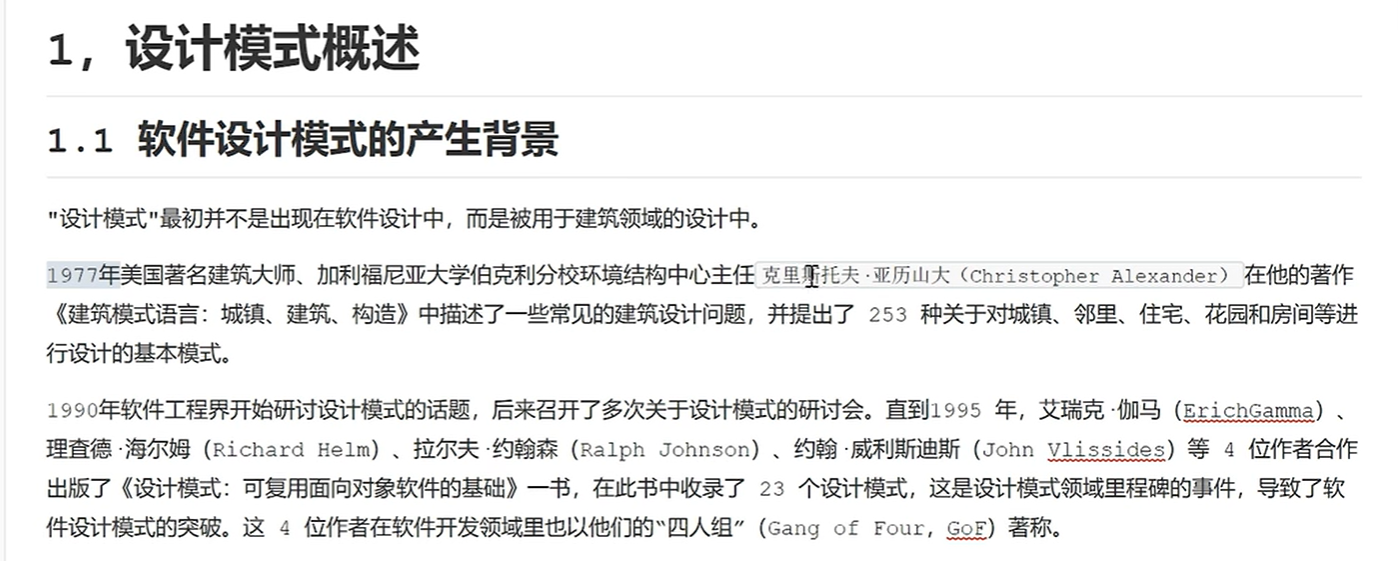

产生背景

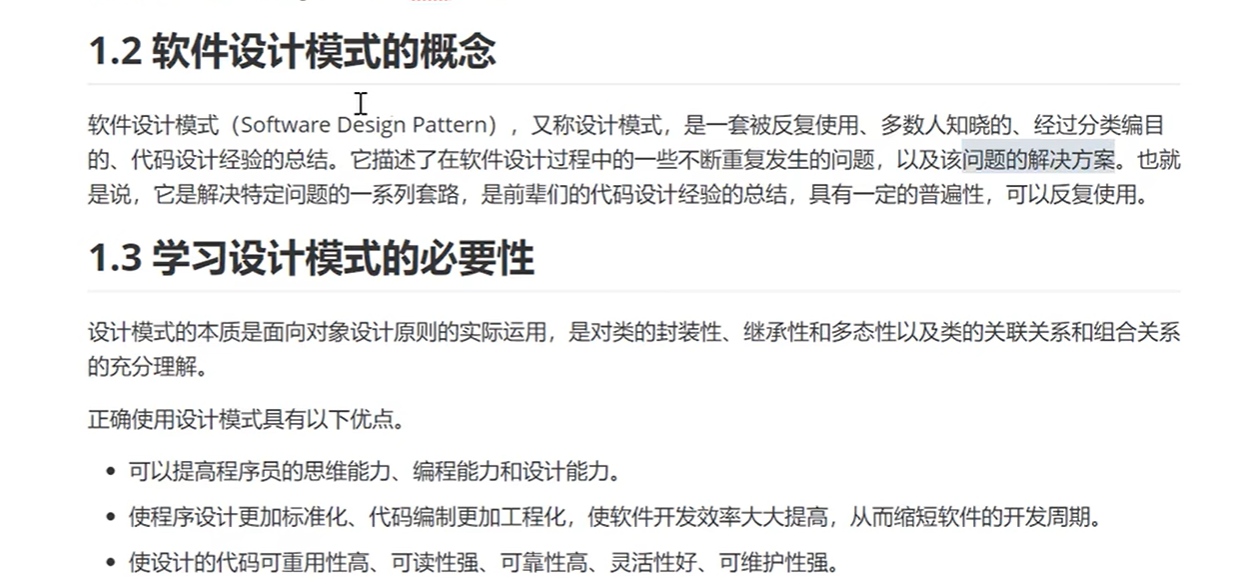

概念&学习的必要性

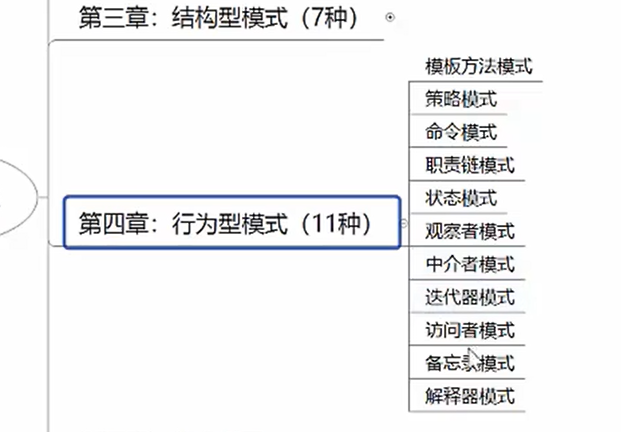

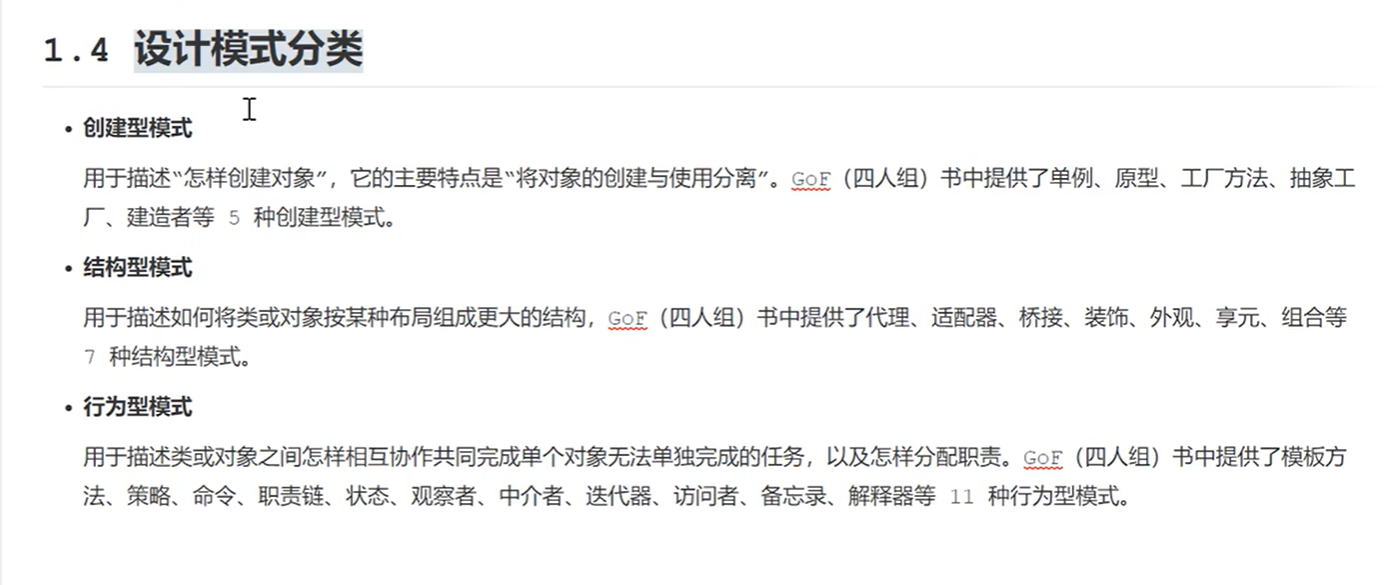

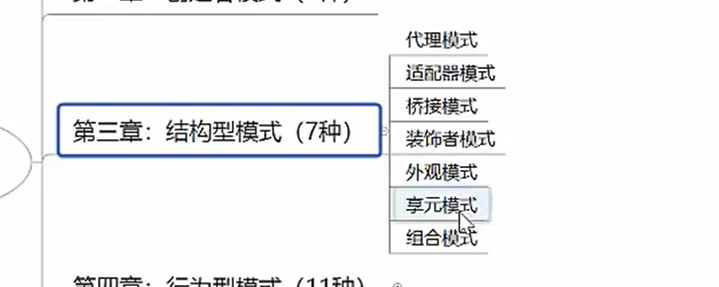

设计模式分类

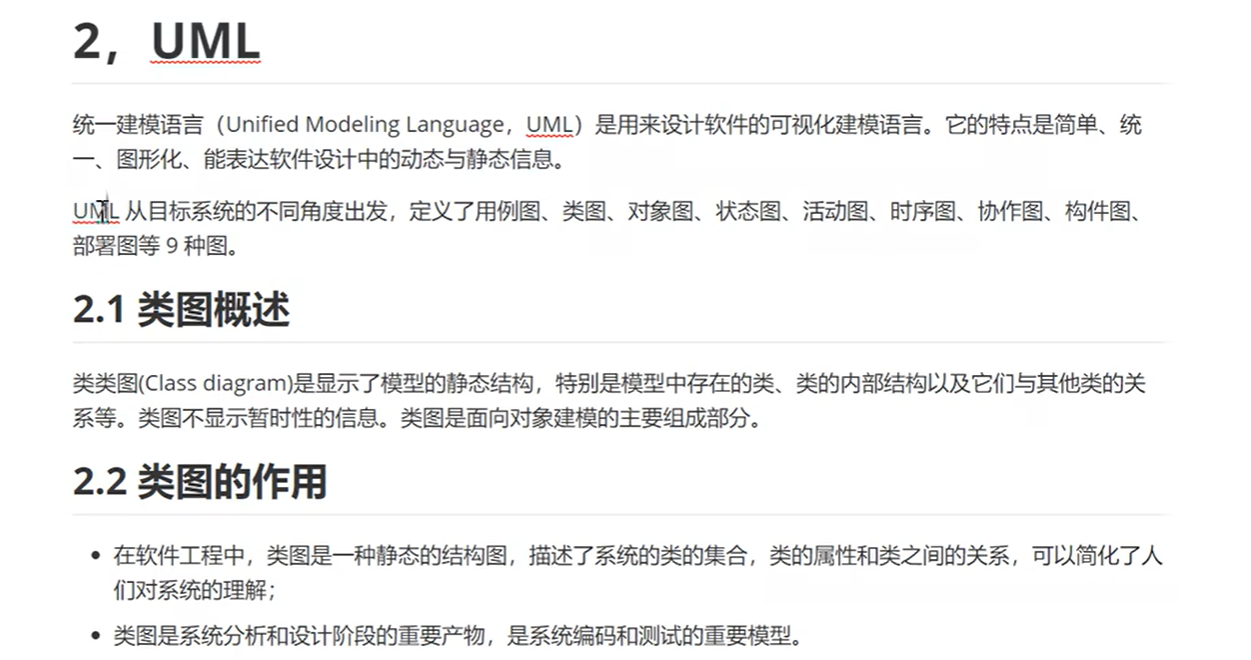

2. UML

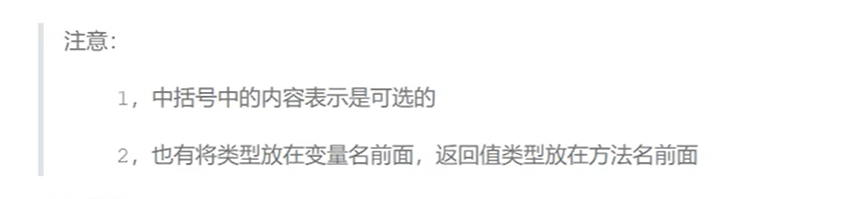

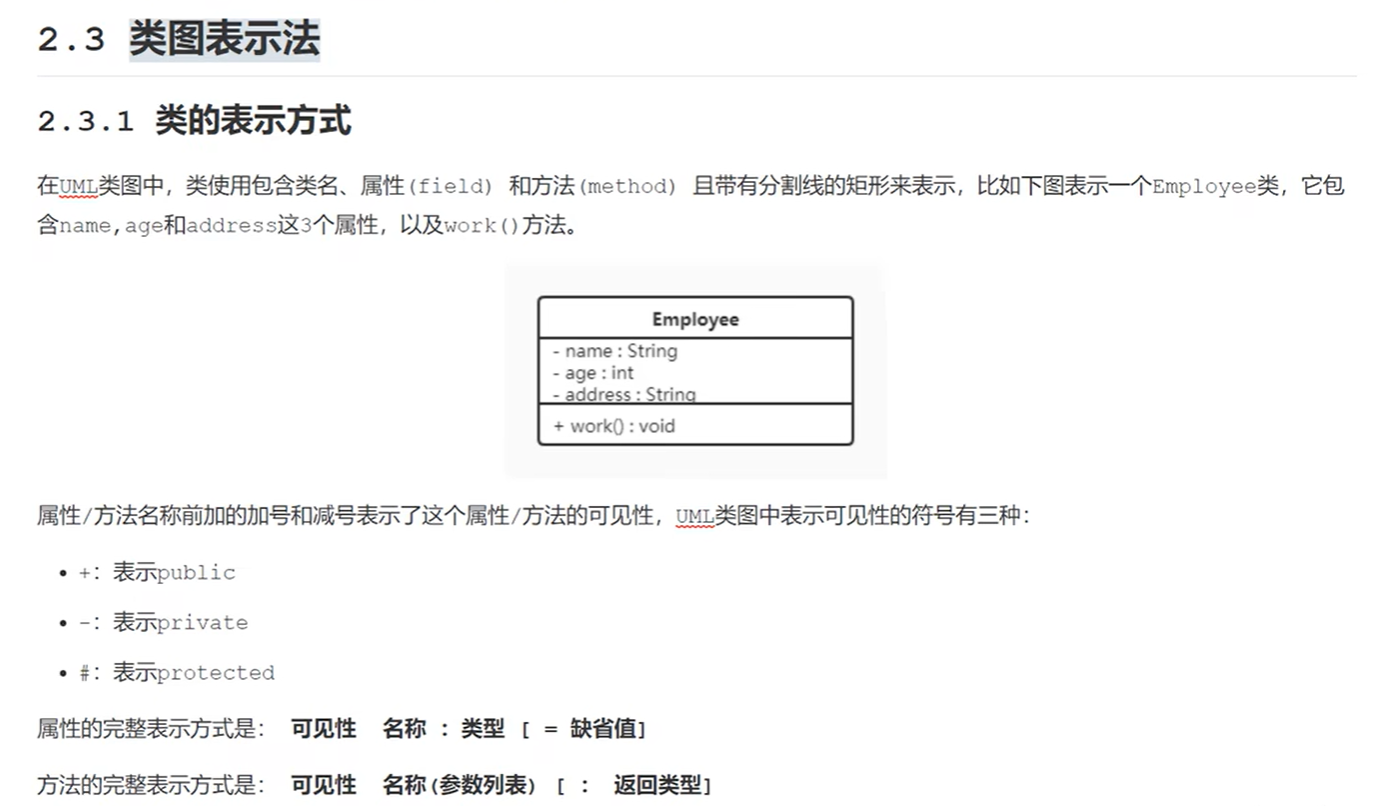

类图表示法

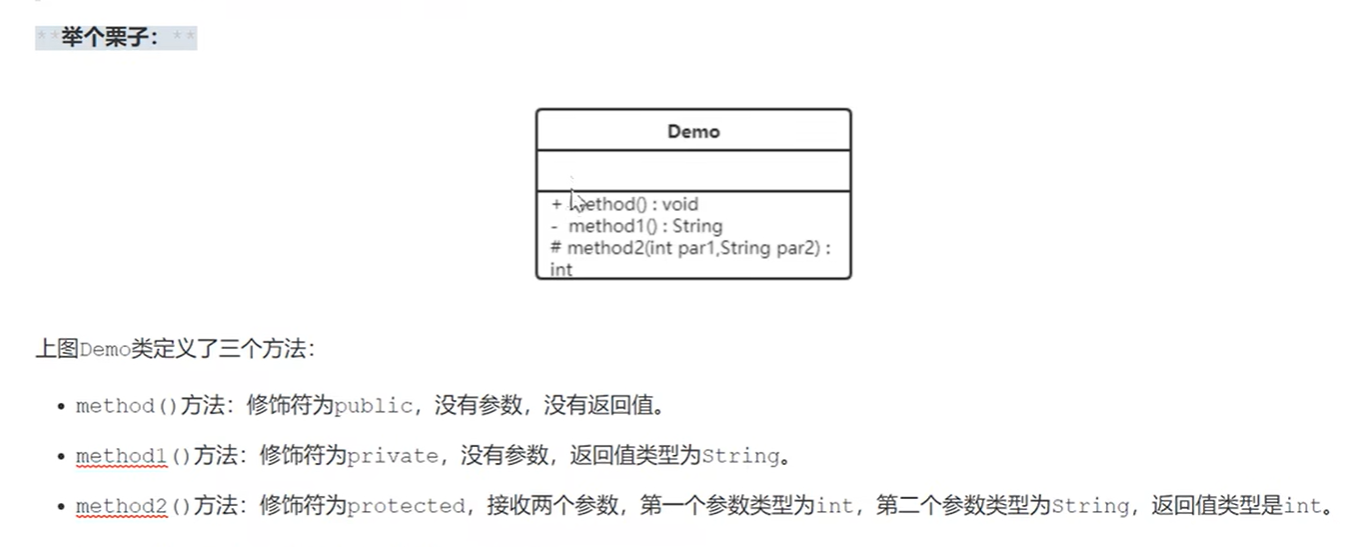

类和接口的表示方法

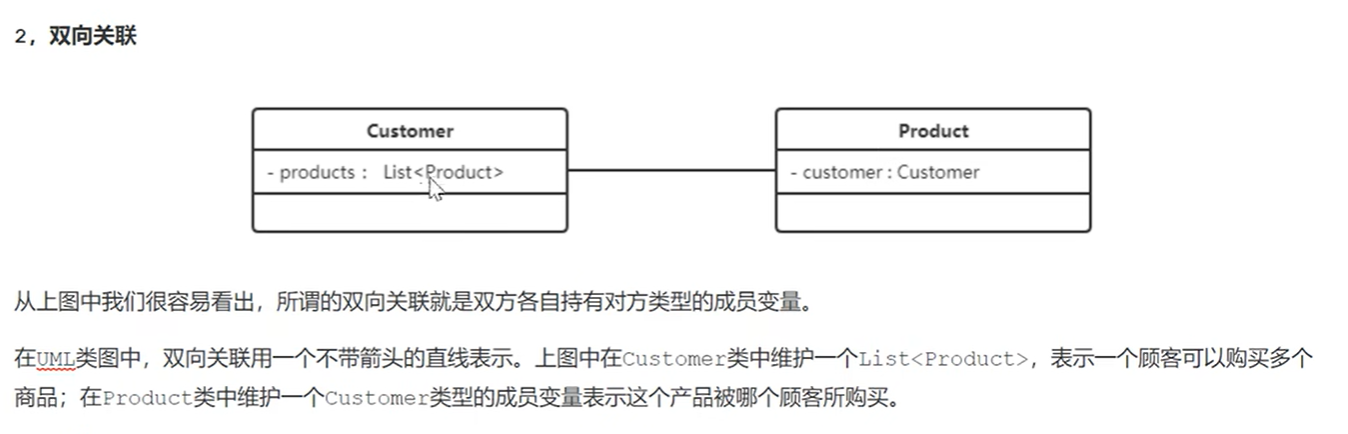

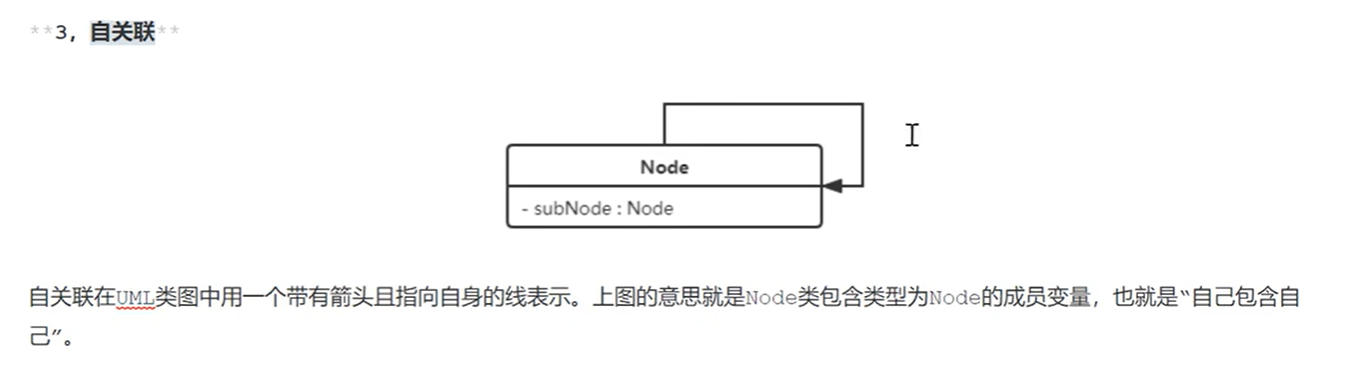

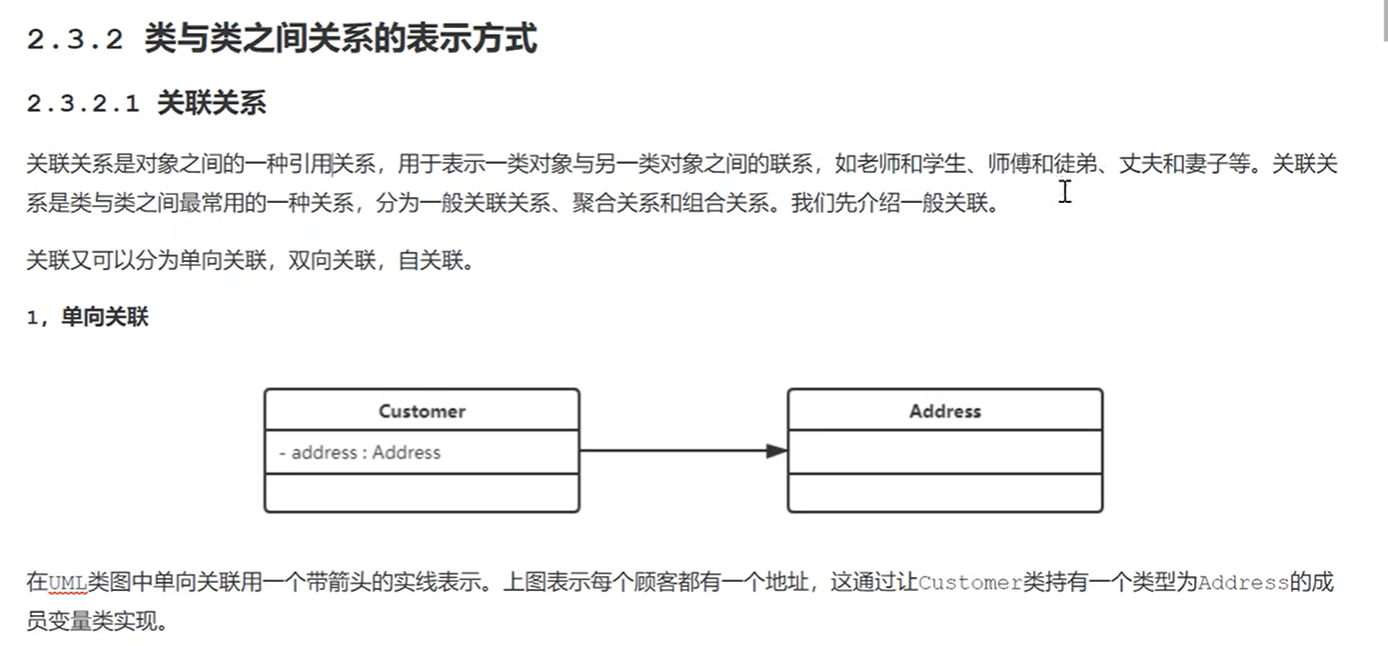

关联关系表示方法

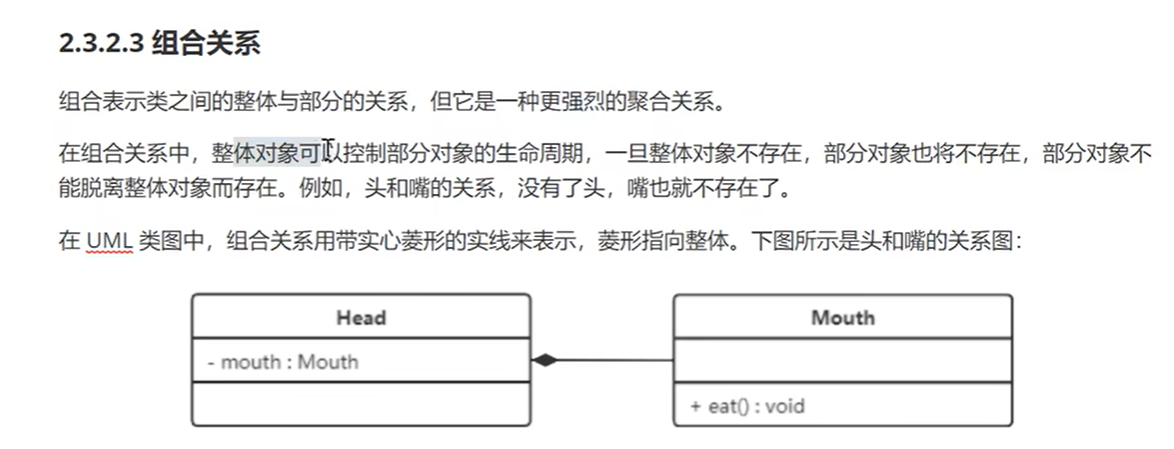

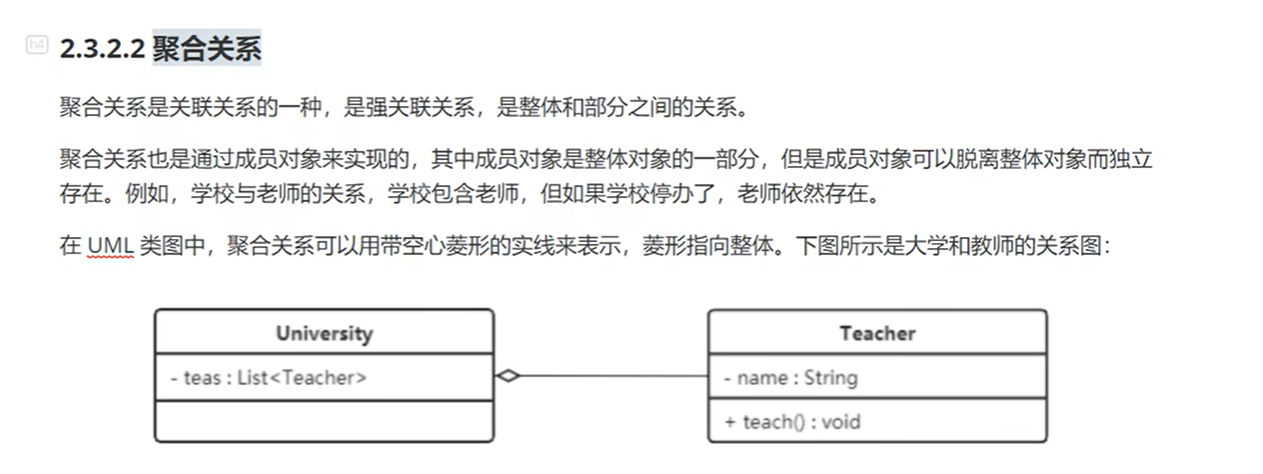

聚合和组合

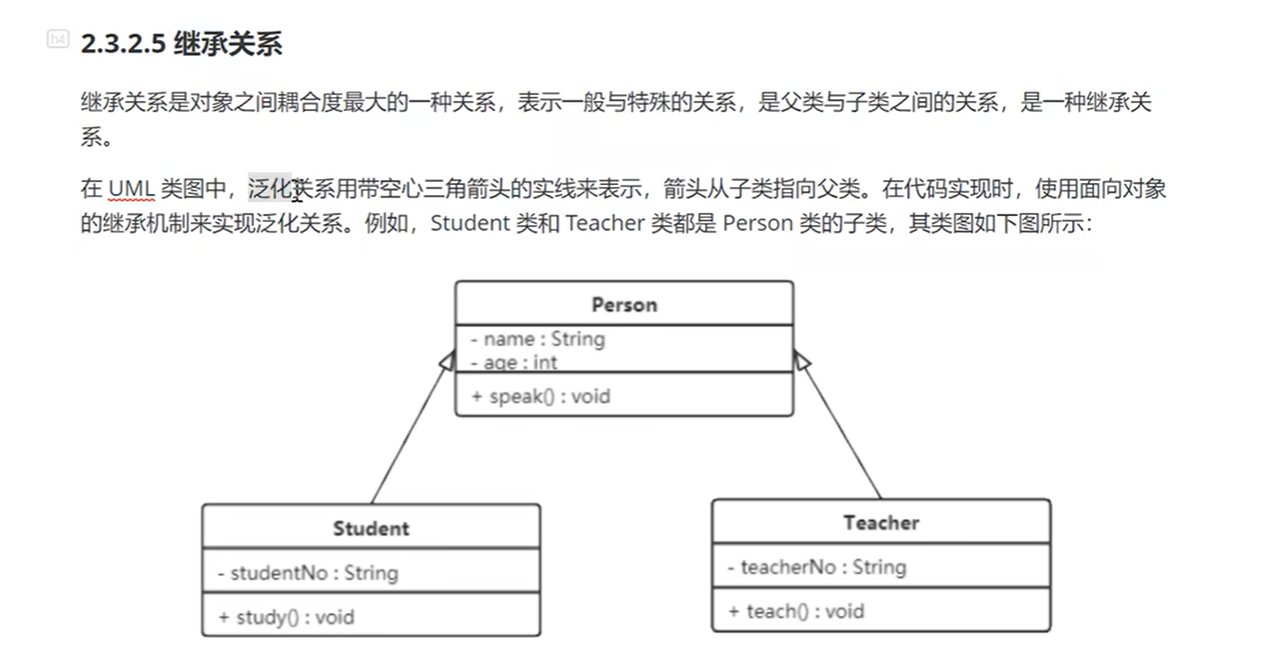

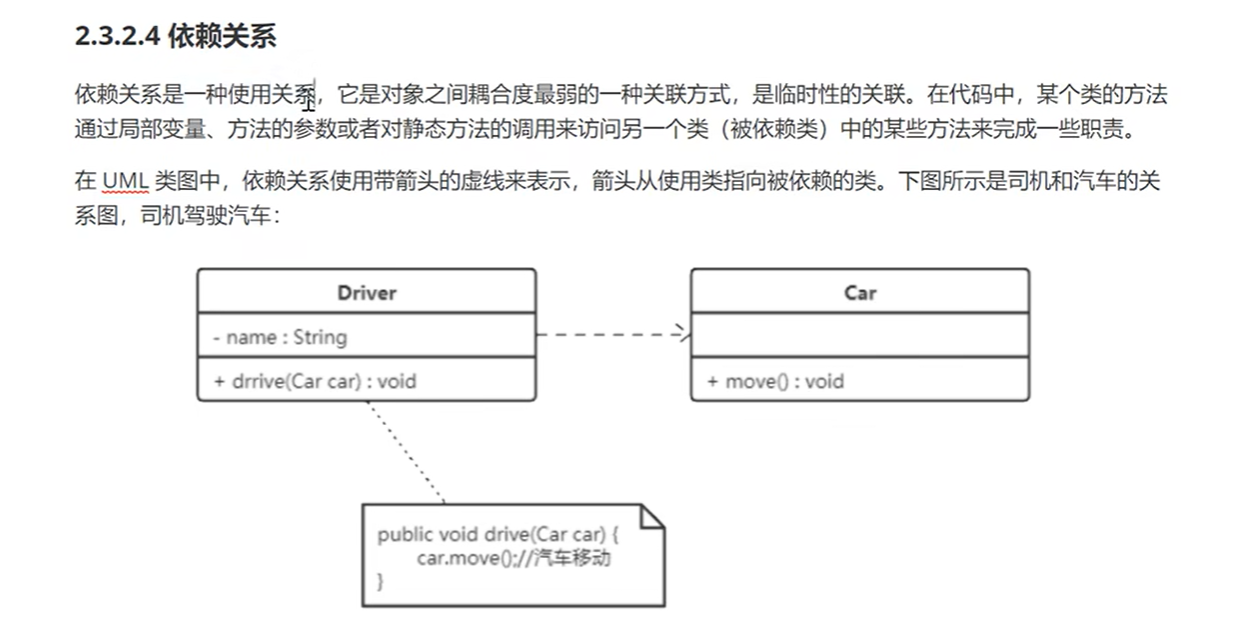

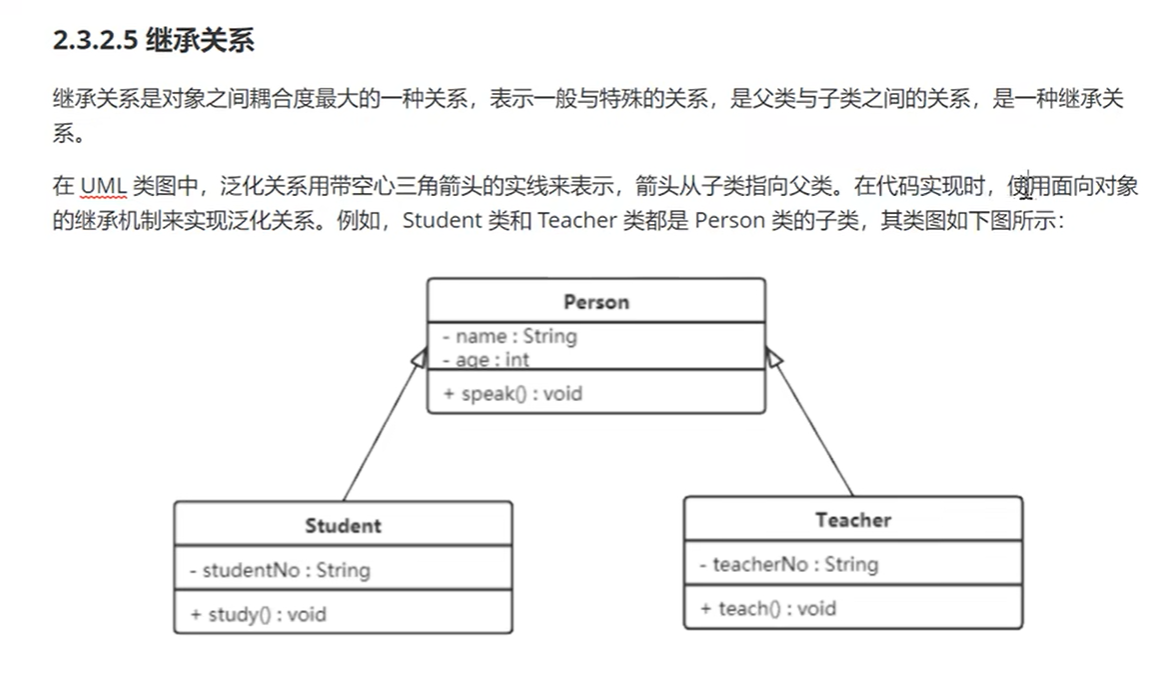

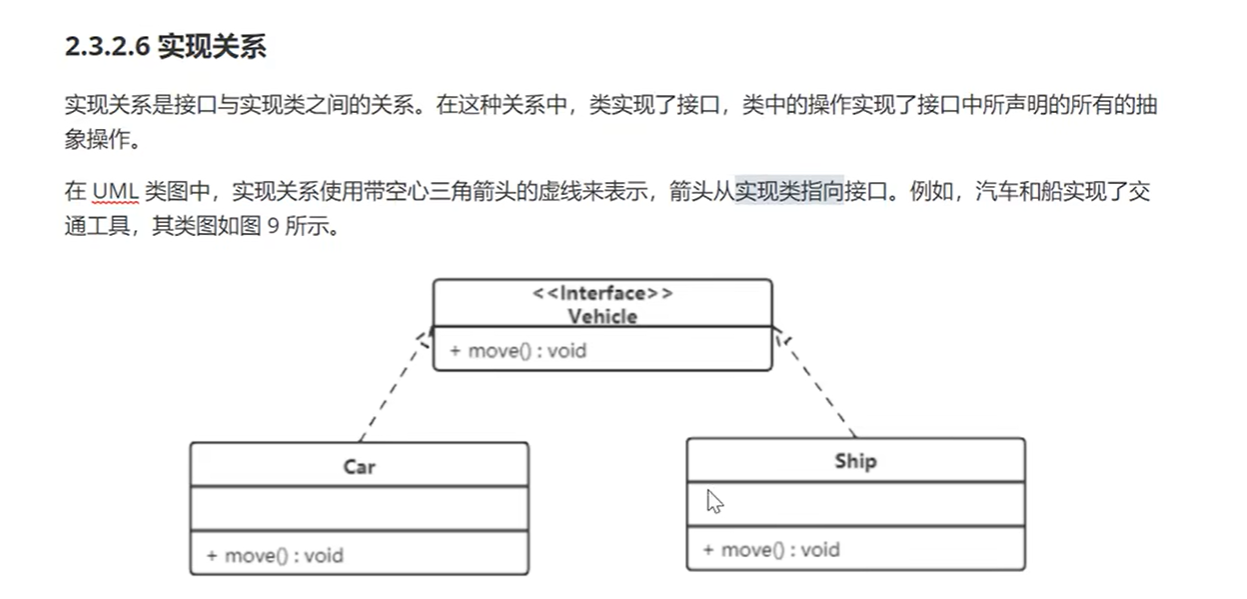

依赖、继承、实现

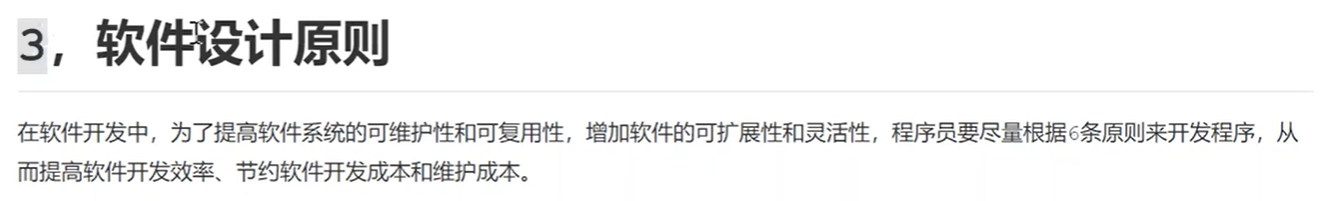

设计原则

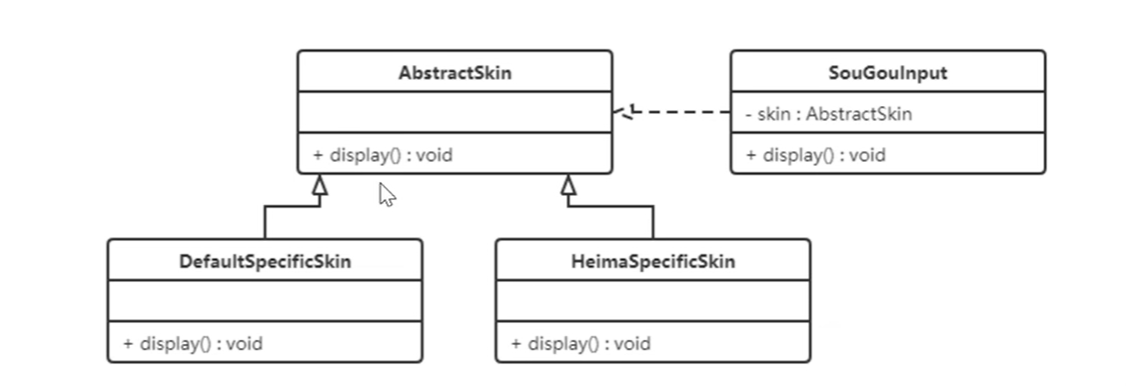

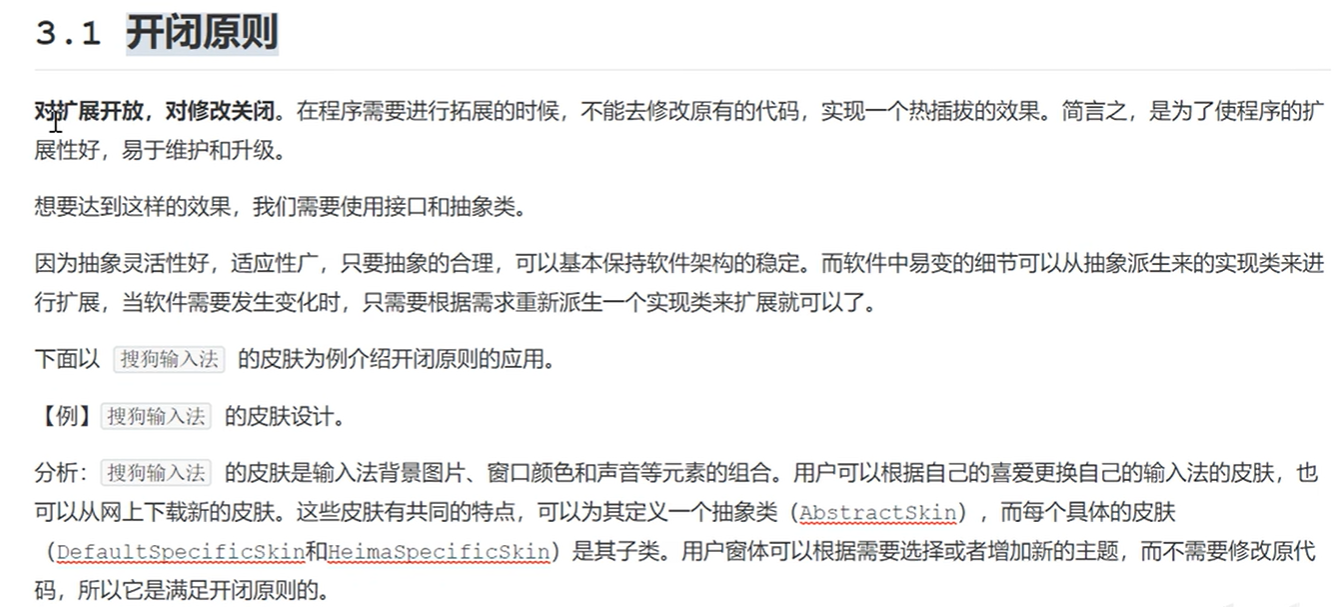

开闭原则

package org.malred.parttern.openclose;

// 抽象皮肤类
public abstract class AbstractSkin {
    // 带abstract的方法,要求子类必须实现

    // 显示皮肤
    public abstract void display();
}

package org.malred.parttern.openclose;

// 默认皮肤类
public class DefaultSkin extends AbstractSkin {
    @Override
    public void display() {
        System.out.println("默认皮肤");
    }
}

package org.malred.parttern.openclose;

public class HeimaSkin extends AbstractSkin {
    @Override
    public void display() {
        System.out.println("黑马皮肤");
    }
}

package org.malred.parttern.openclose;

// 搜狗输入法
public class SougouInput {
    private AbstractSkin skin;

    public void setSkin(AbstractSkin skin) {
        this.skin = skin;
    }

    public void display() {
        skin.display();
    }
}

package org.malred.parttern.openclose;

public class Client {
    public static void main(String[] args) {
        // 1. 创建搜狗输入法对象
        SougouInput input=new SougouInput();
        // 2. 创建皮肤对象
        DefaultSkin skin=new DefaultSkin();
        // 3. 皮肤设置到输入法
        input.setSkin(skin);
        // 4. 显示皮肤
        input.display();

        // 切换
        input.setSkin(new HeimaSkin());
        input.display();
    }
}

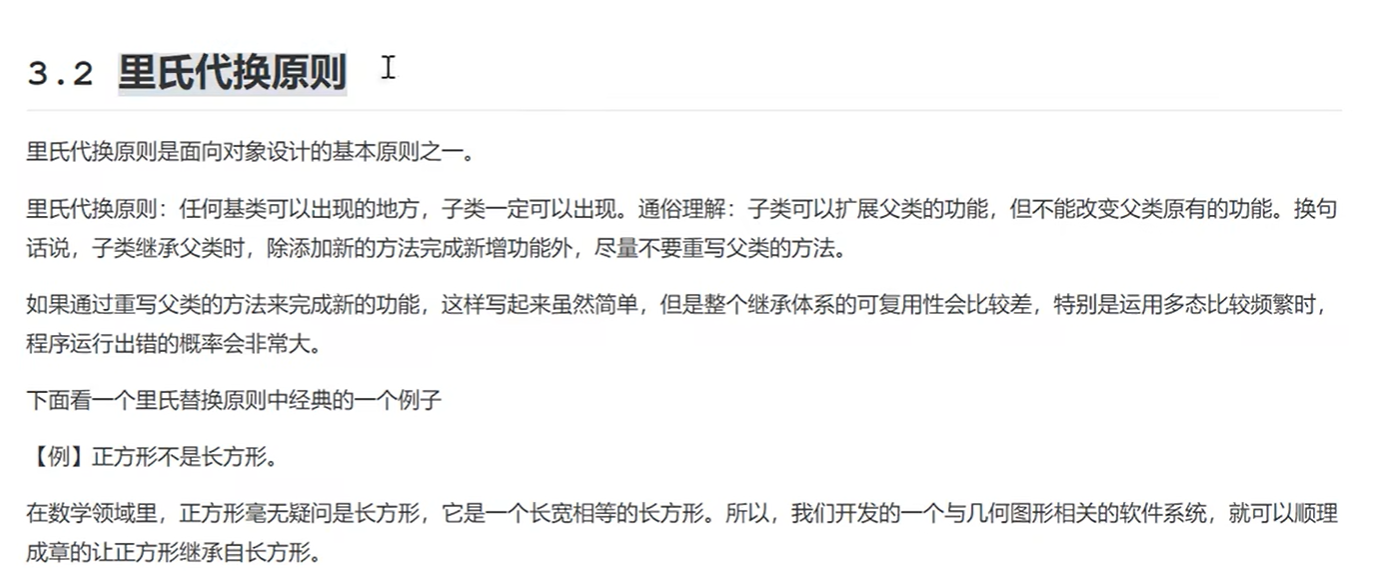

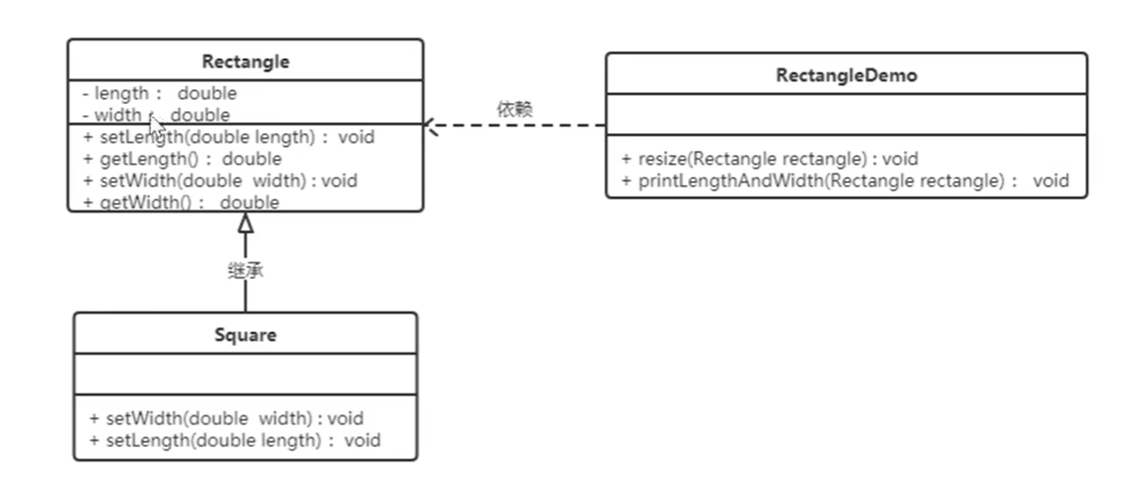

里氏替换原则

package org.malred.parttern.lishi.before;

public class RectangleDemo {
    public static void main(String[] args) {
        // 创建长方形对象
        Rectangle r = new Rectangle();
        // 设置长宽
        r.setLength(20);
        r.setWidth(10);
        // 扩宽
        resize(r);
        // 打印长宽
        printLengthAndWidth(r);

        System.out.println("==========================");
        // 创建正方形对象
        Square s = new Square();
        // 设置长宽
        s.setLength(10);
        // 扩宽
        resize(s);
        // 打印长宽
        printLengthAndWidth(s);
    }

    // 扩宽方法
    public static void resize(Rectangle rectangle) {
        // 宽如果比长小, 就扩宽
        while (rectangle.getWidth() <= rectangle.getLength()) {
            rectangle.setWidth(rectangle.getWidth() + 1);
        }
    }

    // 打印长宽
    public static void printLengthAndWidth(Rectangle rectangle) {
        System.out.println(rectangle.getLength());
        System.out.println(rectangle.getWidth());
    }
}

package org.malred.parttern.lishi.before;

// 长方形类
public class Rectangle {
    private double length;
    private double width;

    public double getLength() {
        return length;
    }

    public void setLength(double length) {
        this.length = length;
    }

    public double getWidth() {
        return width;
    }

    public void setWidth(double width) {
        this.width = width;
    }
}

package org.malred.parttern.lishi.before;

// 正方形类
public class Square extends Rectangle {
    @Override
    public void setLength(double length) {
        super.setLength(length);
        super.setWidth(length);
    }

    @Override
    public void setWidth(double width) {
        super.setLength(width);
        super.setWidth(width);
    }
}

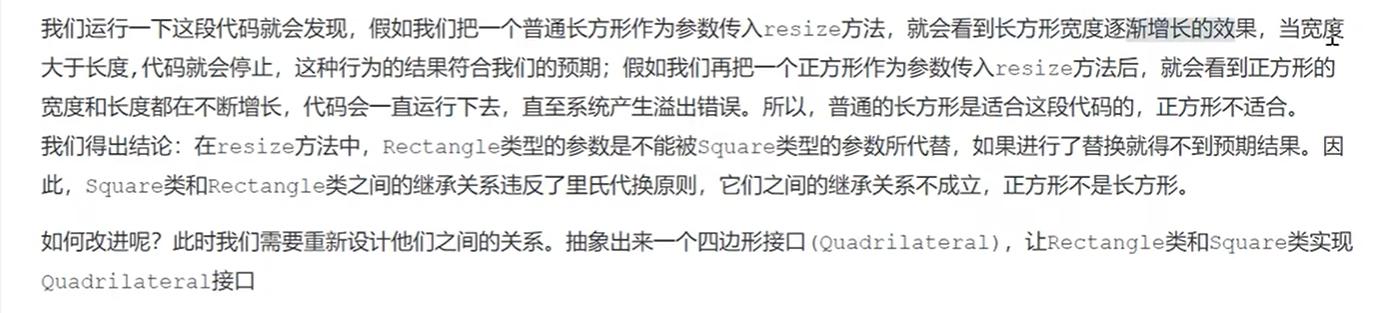

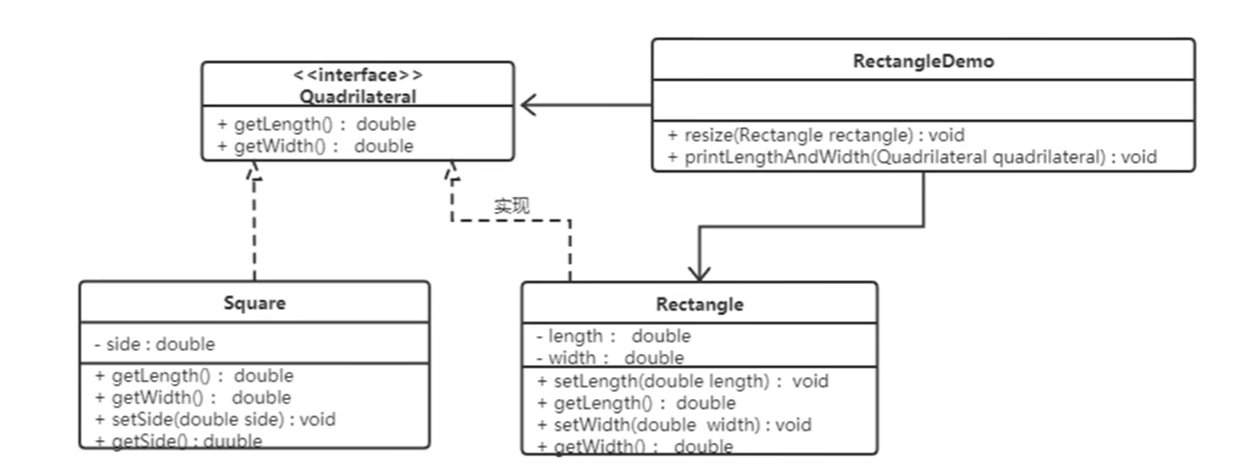

package org.malred.parttern.lishi.after;

public class RectangleDemo {
    public static void main(String[] args) {
        // 创建长方形对象
        Rectangle r = new Rectangle();
        r.setLength(20);
        r.setWidth(10);
        // 调用方法后扩宽
        resize(r);
        printLengthAndWidth(r);
    }

    // 扩宽
    public static void resize(Rectangle rectangle) {
        // 宽如果比长小, 就扩宽
        while (rectangle.getWidth() <= rectangle.getLength()) {
            rectangle.setWidth(rectangle.getWidth() + 1);
        }
    }

    // 打印
    public static void printLengthAndWidth(Quadrilateral quadrilateral) {
        System.out.println(quadrilateral.getLength());
        System.out.println(quadrilateral.getWidth());
    }
}

package org.malred.parttern.lishi.after;

// 四边形接口
public interface Quadrilateral {
    // 获取长
    double getLength();

    // 获取宽
    double getWidth();
}

package org.malred.parttern.lishi.after;

// 长方形
public class Rectangle implements Quadrilateral {
    private double length;
    private double width;

    @Override
    public double getLength() {
        return length;
    }

    public void setLength(double length) {
        this.length = length;
    }

    @Override
    public double getWidth() {
        return width;
    }

    public void setWidth(double width) {
        this.width = width;
    }
}

package org.malred.parttern.lishi.after;

// 正方形
public class Square implements Quadrilateral {
    private double side;

    public double getSide() {
        return side;
    }

    public void setSide(double side) {
        this.side = side;
    }

    @Override
    public double getLength() {
        return side;
    }

    @Override
    public double getWidth() {
        return side;
    }
}

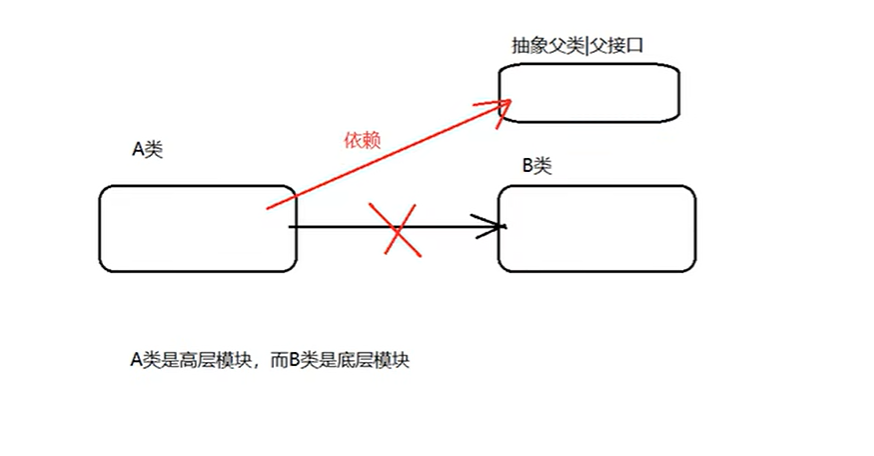

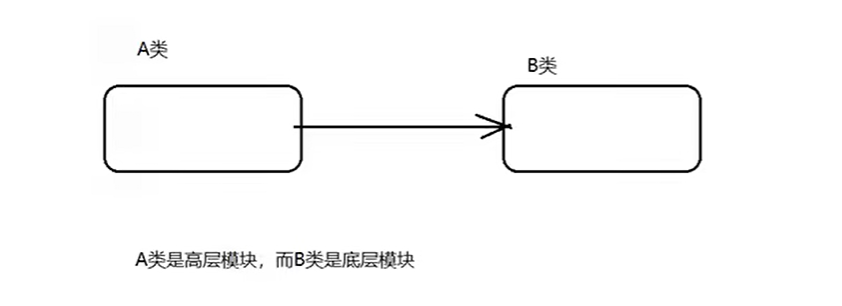

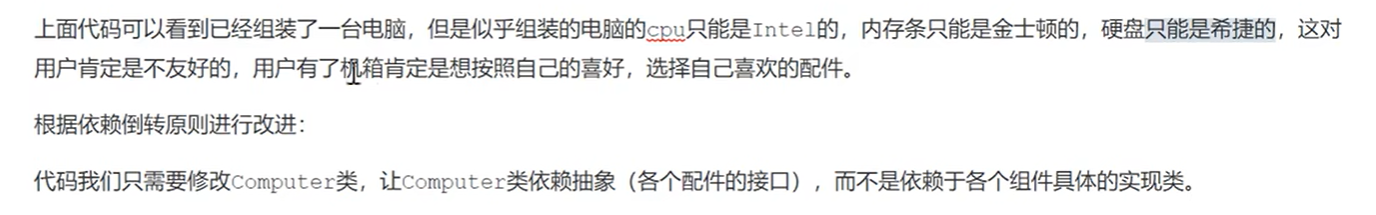

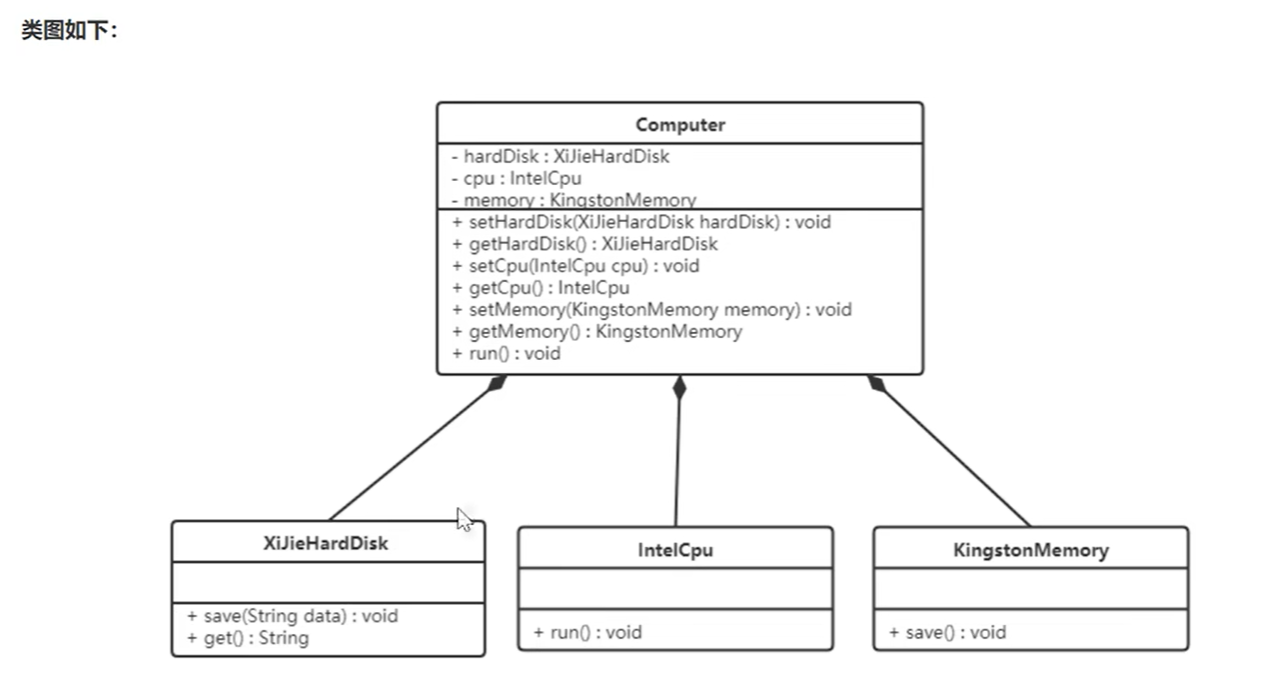

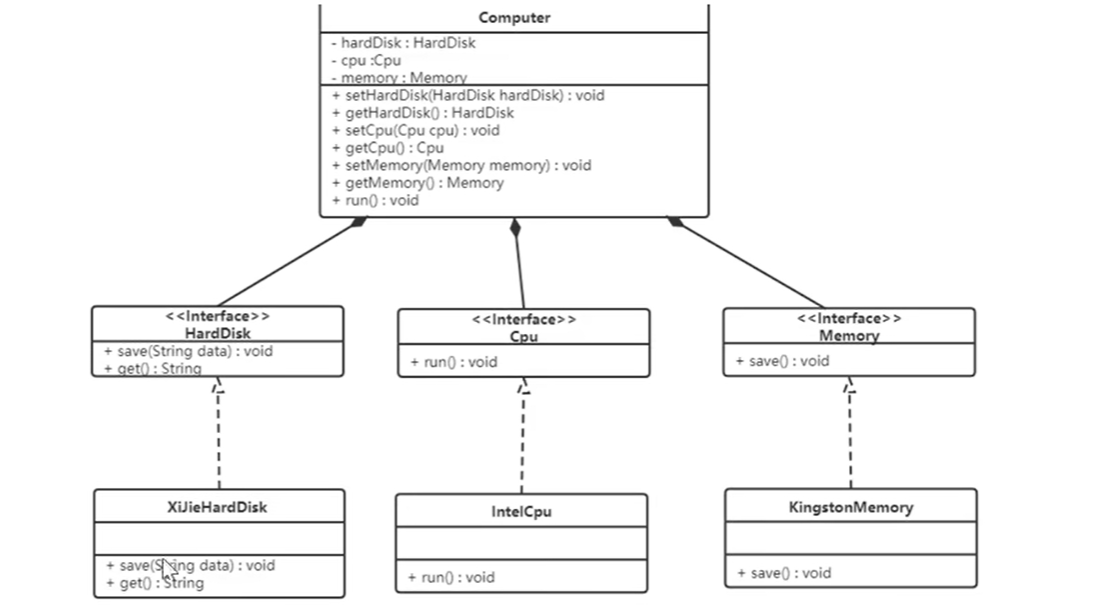

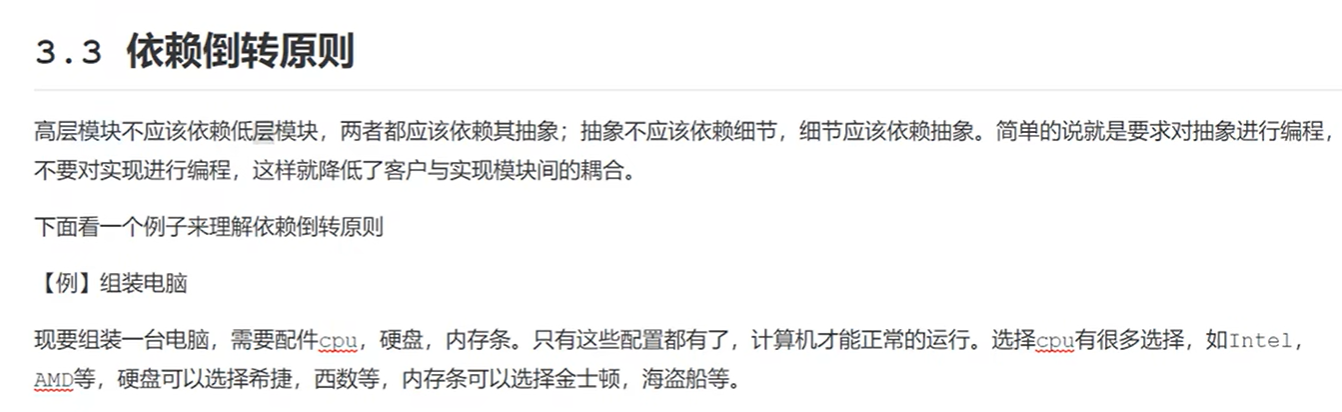

依赖倒转原则

依赖倒转原则是开闭原则的具体实现

package org.malred.parttern.reverse.before;

public class ComputerDemo {
    public static void main(String[] args) {
        // 创建组件
        XiJieHardDisk disk = new XiJieHardDisk();
        IntelCPU cpu = new IntelCPU();
        KingstonMemory memory = new KingstonMemory();
        // 创建计算机
        Computer c = new Computer();
        // 组装计算机
        c.setCpu(cpu);
        c.setHardDisk(disk);
        c.setMemory(memory);
        // 运行计算机
        c.run();
    }
}

package org.malred.parttern.reverse.before;

public class Computer {
    private XiJieHardDisk hardDisk;
    private IntelCPU cpu;
    private KingstonMemory memory;

    public void run() {
        System.out.println("运行计算机");
        cpu.run();
        String s = hardDisk.get();
        System.out.println("从硬盘获取数据: " + s);
        memory.save();
    }

    public XiJieHardDisk getHardDisk() {
        return hardDisk;
    }

    public void setHardDisk(XiJieHardDisk hardDisk) {
        this.hardDisk = hardDisk;
    }

    public IntelCPU getCpu() {
        return cpu;
    }

    public void setCpu(IntelCPU cpu) {
        this.cpu = cpu;
    }

    public KingstonMemory getMemory() {
        return memory;
    }

    public void setMemory(KingstonMemory memory) {
        this.memory = memory;
    }
}

package org.malred.parttern.reverse.before;

// 金士顿内存条
public class KingstonMemory {
    public void save() {
        System.out.println("使用金士顿内存条");
    }
}

package org.malred.parttern.reverse.before;

// intel cpu
public class IntelCPU {
    public void run() {
        System.out.println("使用intel处理器");
    }
}

package org.malred.parttern.reverse.before;

// 希捷硬盘
public class XiJieHardDisk {
    // 存储数据
    public void save(String data) {
        System.out.println("使用希捷硬盘存储数据: " + data);
    }

    // 获取数据
    public String get() {
        System.out.println("使用希捷硬盘获取数据");
        return "数据";
    }
}

package org.malred.parttern.reverse.after;


public class ComputerDemo {
    public static void main(String[] args) {
        // 创建组件
        HardDisk disk = new XiJieHardDisk();
        CPU cpu = new IntelCPU();
        Memory memory = new KingstonMemory();
        // 创建计算机
        Computer c = new Computer();
        // 组装计算机
        c.setCpu(cpu);
        c.setHardDisk(disk);
        c.setMemory(memory);
        // 运行计算机
        c.run();
    }
}

package org.malred.parttern.reverse.after;

// 硬盘接口
public interface HardDisk {
    // 存储数据
    public void save(String data);
    // 获取数据
    public String get();
}

package org.malred.parttern.reverse.after;

// 希捷硬盘
public class XiJieHardDisk implements HardDisk{
    // 存储数据
    public void save(String data) {
        System.out.println("使用希捷硬盘存储数据: " + data);
    }

    // 获取数据
    public String get() {
        System.out.println("使用希捷硬盘获取数据");
        return "数据";
    }
}

package org.malred.parttern.reverse.after;

// intel cpu
public class IntelCPU implements CPU {
    public void run() {
        System.out.println("使用intel处理器");
    }
}

package org.malred.parttern.reverse.after;

// CPU接口
public interface CPU {
    // 运行cpu
    public void run();
}

package org.malred.parttern.reverse.after;


public class Computer {
    private HardDisk hardDisk;
    private CPU cpu;
    private Memory memory;

    public void run() {
        System.out.println("运行计算机");
        cpu.run();
        String s = hardDisk.get();
        System.out.println("从硬盘获取数据: " + s);
        memory.save();
    }

    public HardDisk getHardDisk() {
        return hardDisk;
    }

    public void setHardDisk(HardDisk hardDisk) {
        this.hardDisk = hardDisk;
    }

    public CPU getCpu() {
        return cpu;
    }

    public void setCpu(CPU cpu) {
        this.cpu = cpu;
    }

    public Memory getMemory() {
        return memory;
    }

    public void setMemory(Memory memory) {
        this.memory = memory;
    }
}

package org.malred.parttern.reverse.after;

// 金士顿内存条
public class KingstonMemory implements Memory {
    public void save() {
        System.out.println("使用金士顿内存条");
    }
}

package org.malred.parttern.reverse.after;

// 内存接口
public interface Memory {
    // 存储数据
    public void save();
}

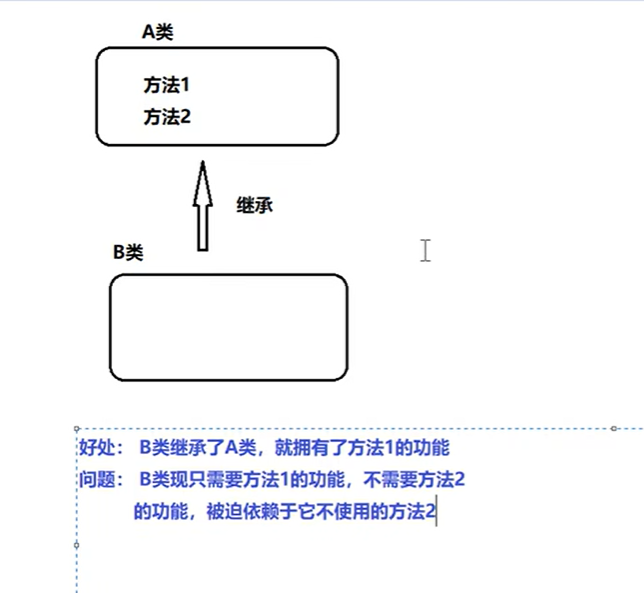

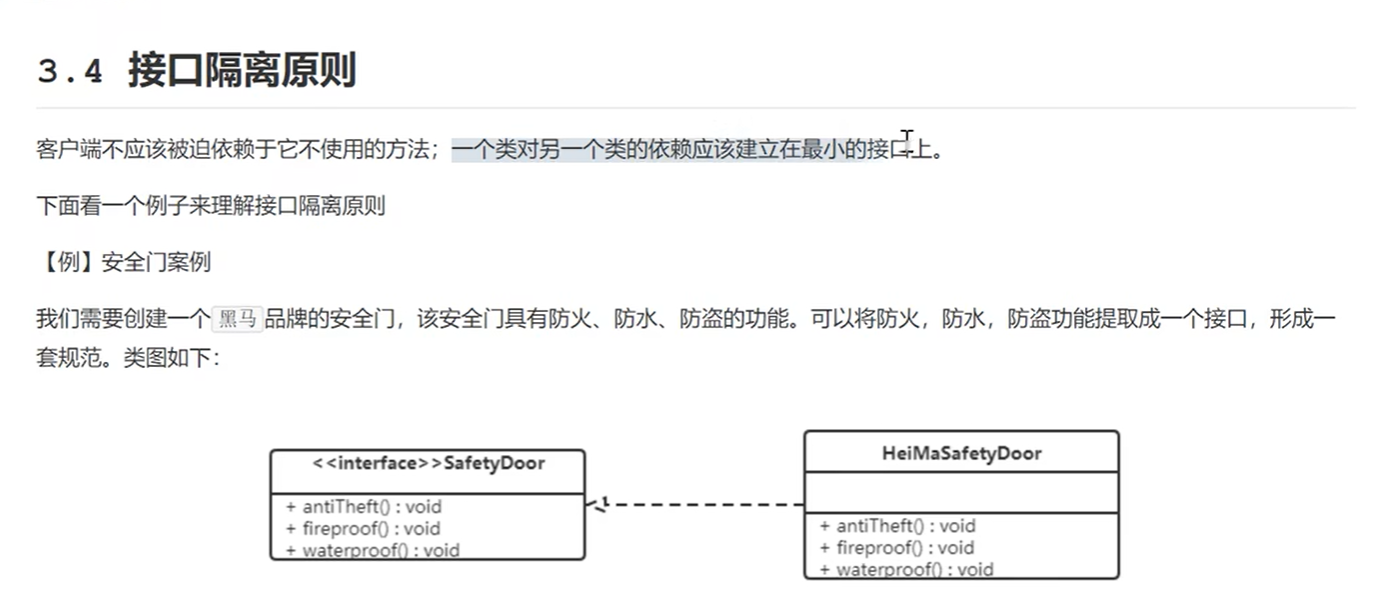

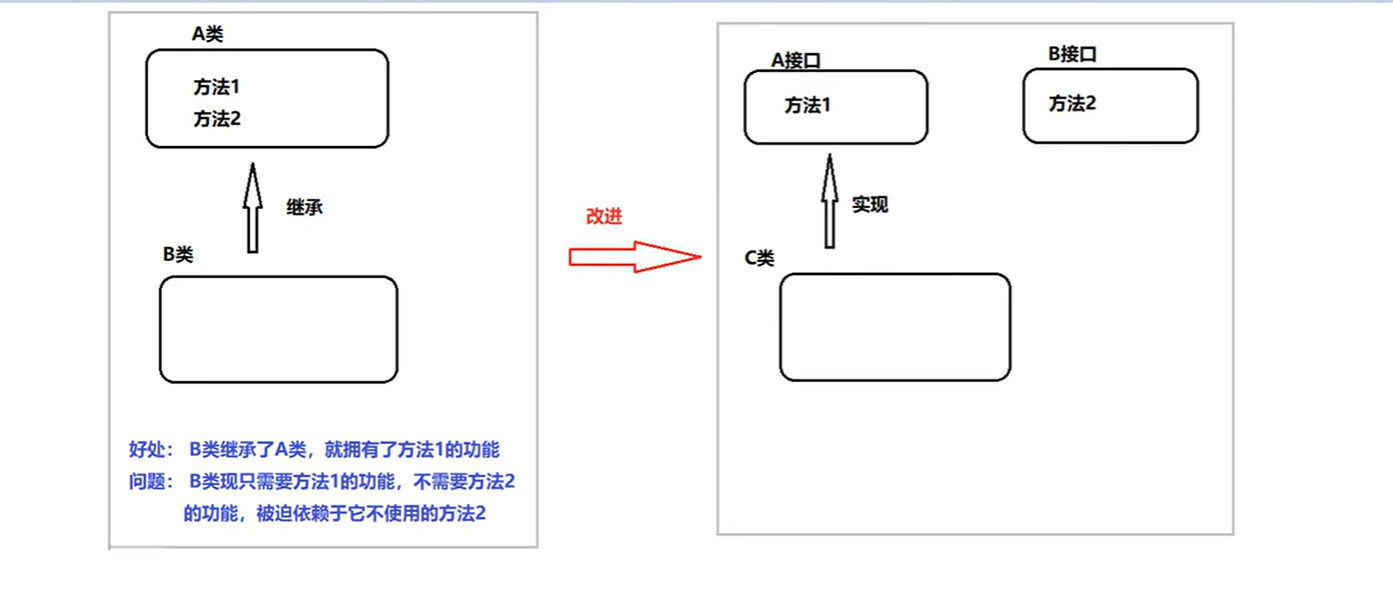

接口隔离原则

package org.malred.parttern.interfaceIsolate.before;

public class Client {
    public static void main(String[] args) {
        HeimaSafelyDoor door = new HeimaSafelyDoor();
        door.waterProof();
        door.fireProof();
        door.antiTheft();
    }
}

package org.malred.parttern.interfaceIsolate.before;

public class HeimaSafelyDoor implements SafelyDoor {
    @Override
    public void antiTheft() {
        System.out.println("黑马防盗");
    }

    @Override
    public void fireProof() {
        System.out.println("黑马防火");
    }

    @Override
    public void waterProof() {
        System.out.println("黑马防水");
    }
}

package org.malred.parttern.interfaceIsolate.before;

// 安全门接口
public interface SafelyDoor {
    // 防盗
    void antiTheft();

    // 防火
    void fireProof();

    // 防水
    void waterProof();
}

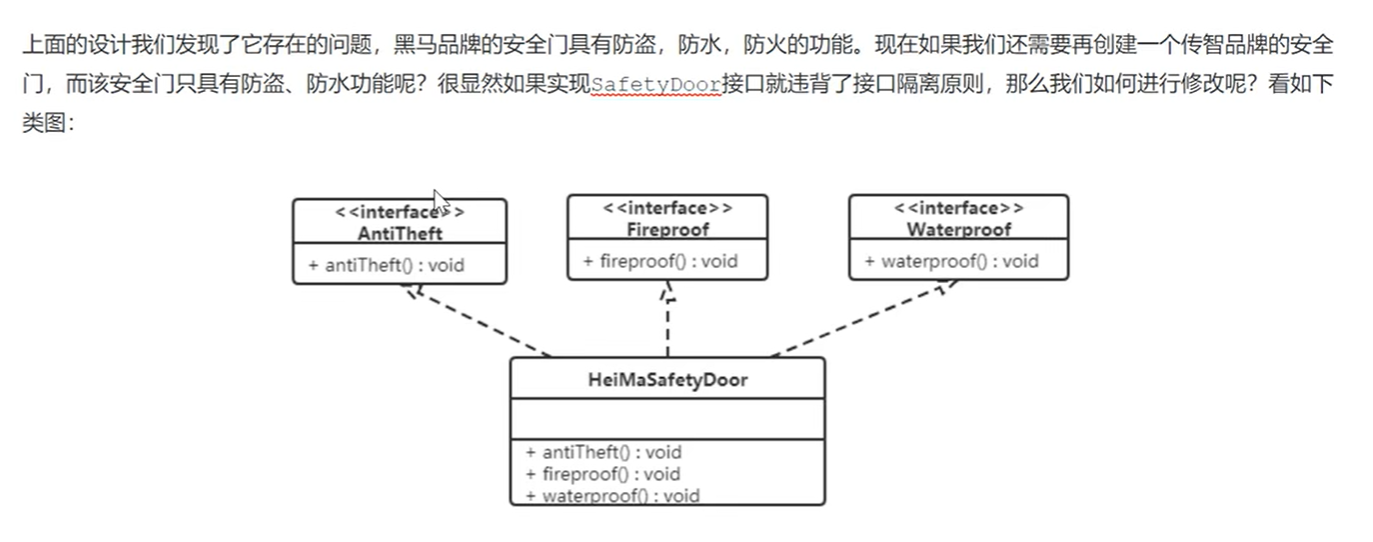

package org.malred.parttern.interfaceIsolate.after;

public class Client {
    public static void main(String[] args) {
        HeiMaSafetyDoor door = new HeiMaSafetyDoor();
        door.waterproof();
        door.fireproof();
        door.antiTheft();
        ItcastSafetyDoor it_door = new ItcastSafetyDoor();
        it_door.antiTheft();
        it_door.fireproof();
    }
}

package org.malred.parttern.interfaceIsolate.after;

// 防水接口
public interface Waterproof {
    void waterproof();
}

package org.malred.parttern.interfaceIsolate.after;

// 防火接口
public interface Fireproof {
    void fireproof();
}

package org.malred.parttern.interfaceIsolate.after;

// 防盗接口
public interface AntiTheft {
    void antiTheft();
}

package org.malred.parttern.interfaceIsolate.after;

public class ItcastSafetyDoor implements AntiTheft, Fireproof {
    @Override
    public void antiTheft() {
        System.out.println("传智防盗");
    }

    @Override
    public void fireproof() {
        System.out.println("传智防火");
    }
}

package org.malred.parttern.interfaceIsolate.after;

public class HeiMaSafetyDoor implements AntiTheft, Waterproof, Fireproof {
    @Override
    public void antiTheft() {
        System.out.println("黑马防盗");
    }

    @Override
    public void fireproof() {
        System.out.println("黑马防火");
    }

    @Override
    public void waterproof() {
        System.out.println("黑马防水");
    }
}

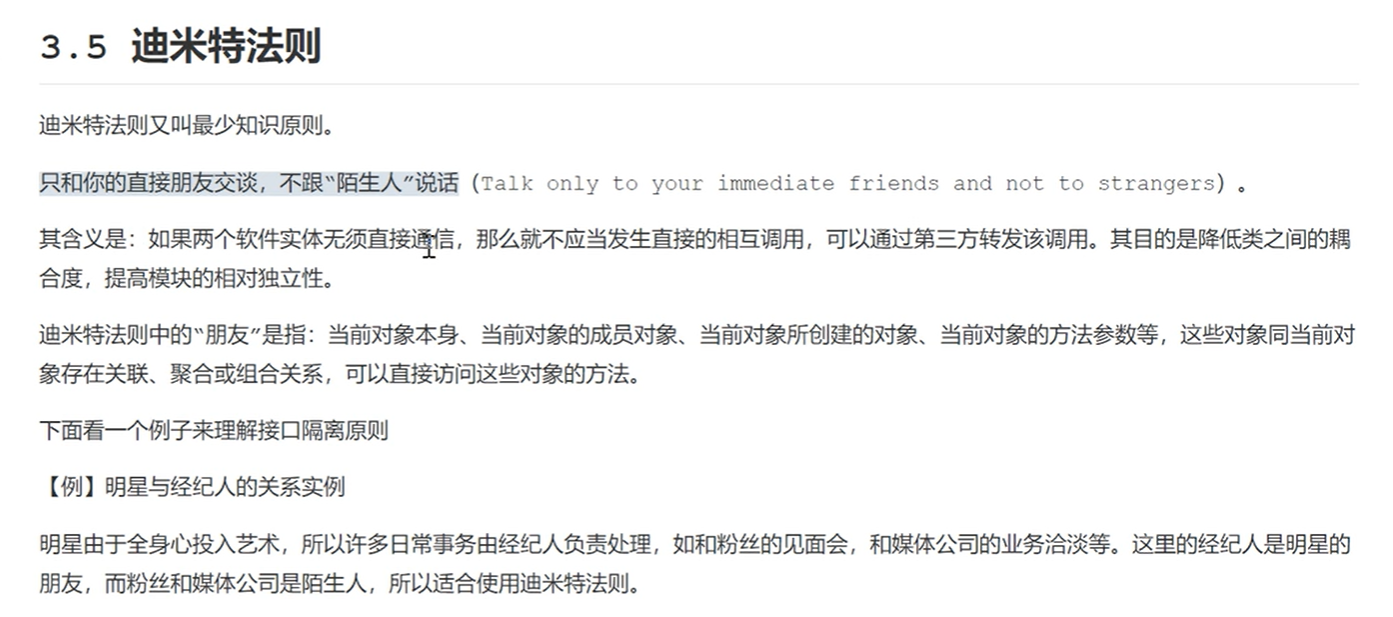

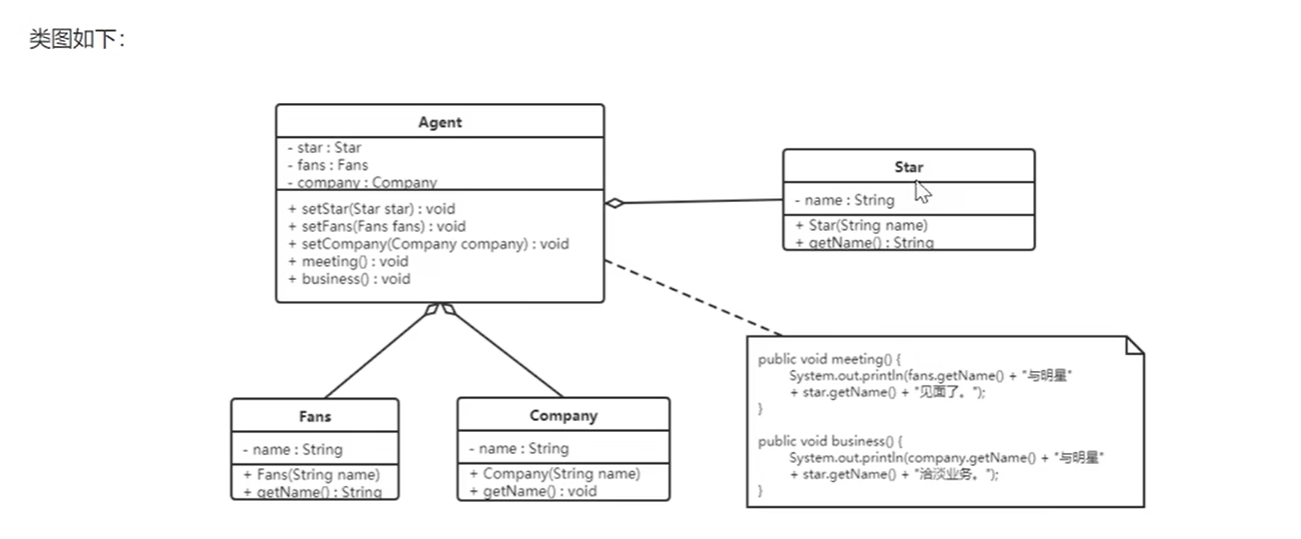

迪米特法则

package org.malred.parttern.dimite;

public class Agent {
    private Star star;
    private Fans fans;
    private Company company;

    public void setStar(Star star) {
        this.star = star;
    }

    public void setFans(Fans fans) {
        this.fans = fans;
    }

    public void setCompany(Company company) {
        this.company = company;
    }

    // 和粉丝见面
    public void meeting() {
        System.out.println(star.getName() + "和粉丝" + fans.getName() + "见面");
    }

    // 和媒体公司商谈
    public void business() {
        System.out.println(star.getName() + "和" + company.getName() + "洽谈");
    }

}

package org.malred.parttern.dimite;

public class Company {
    private String name;

    public Company(String name) {
        this.name = name;
    }

    public String getName() {
        return name;
    }
}

package org.malred.parttern.dimite;

public class Fans {
    private String name;

    public Fans(String name) {
        this.name = name;
    }

    public String getName() {
        return name;
    }
}

package org.malred.parttern.dimite;

public class Star {
    private String name;

    public Star(String name) {
        this.name = name;
    }

    public String getName() {
        return name;
    }
}

package org.malred.parttern.dimite;

public class Client {
    public static void main(String[] args) {
        Agent agent = new Agent();
        Star star = new Star("车银优");
        agent.setStar(star);
        Fans fans = new Fans("路人甲");
        agent.setFans(fans);
        Company company = new Company("黑马传媒");
        agent.setCompany(company);

        agent.meeting();
        agent.business();
    }
}

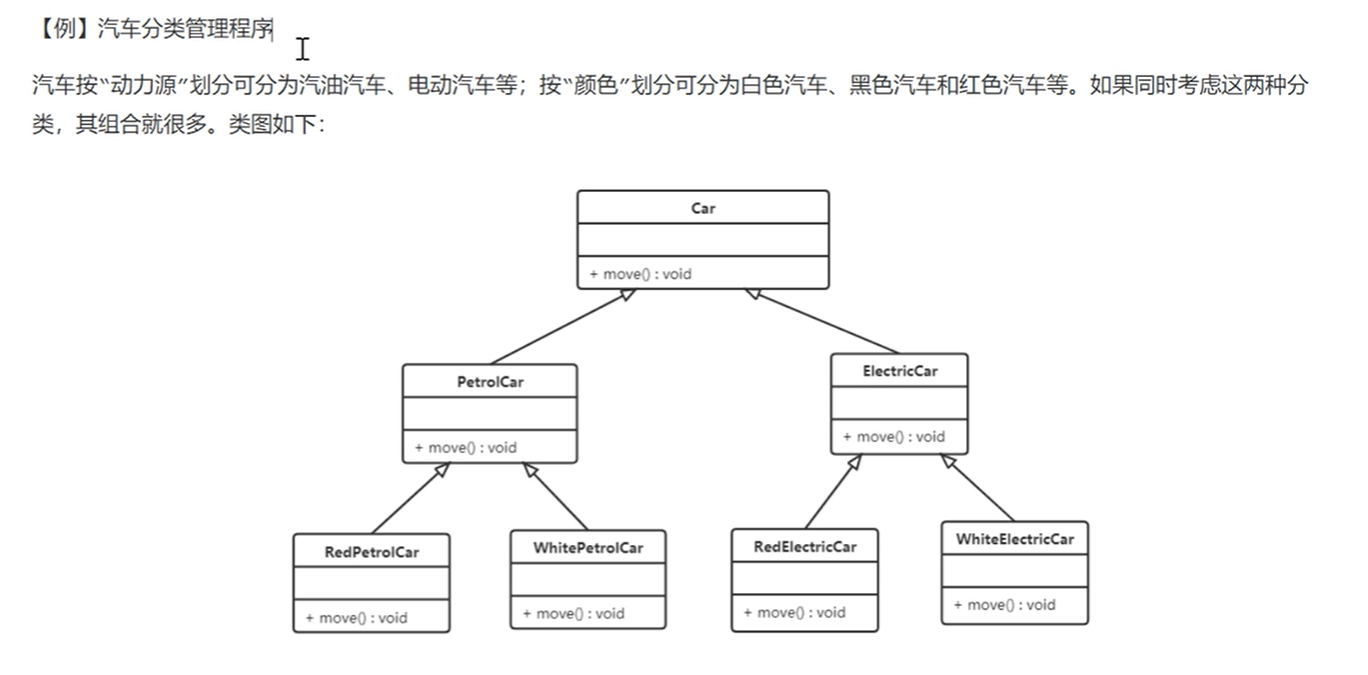

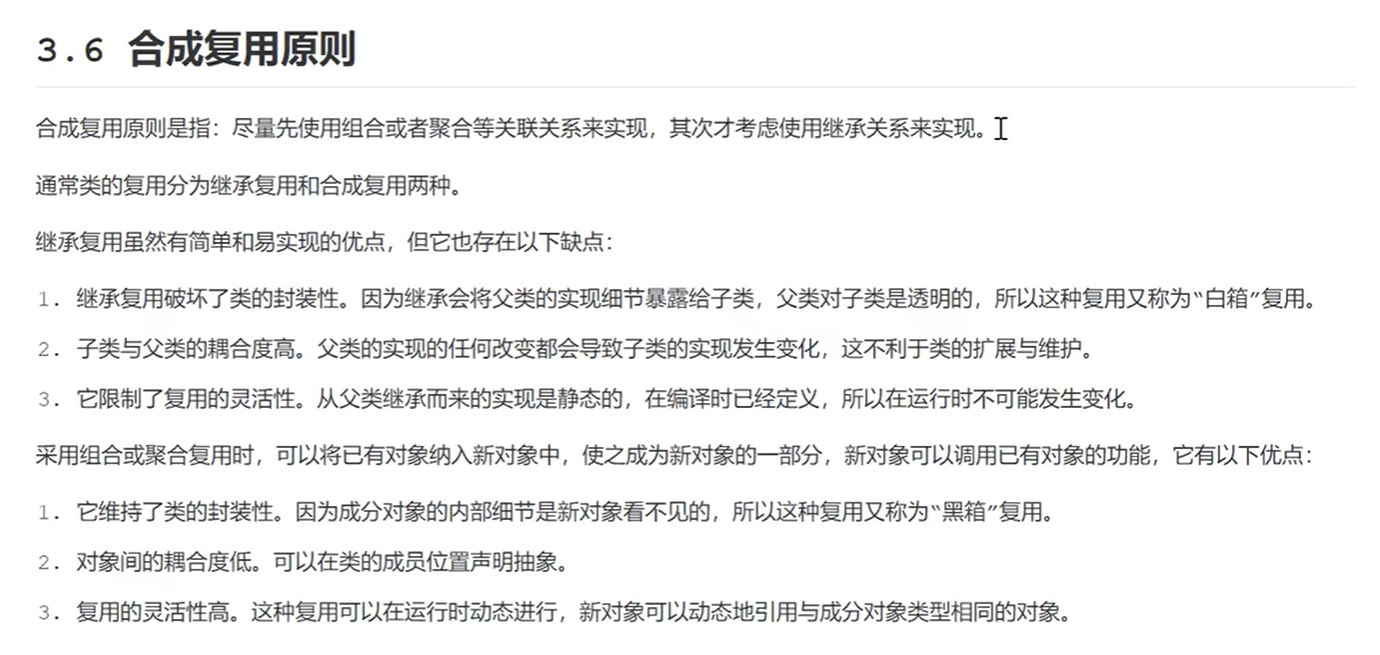

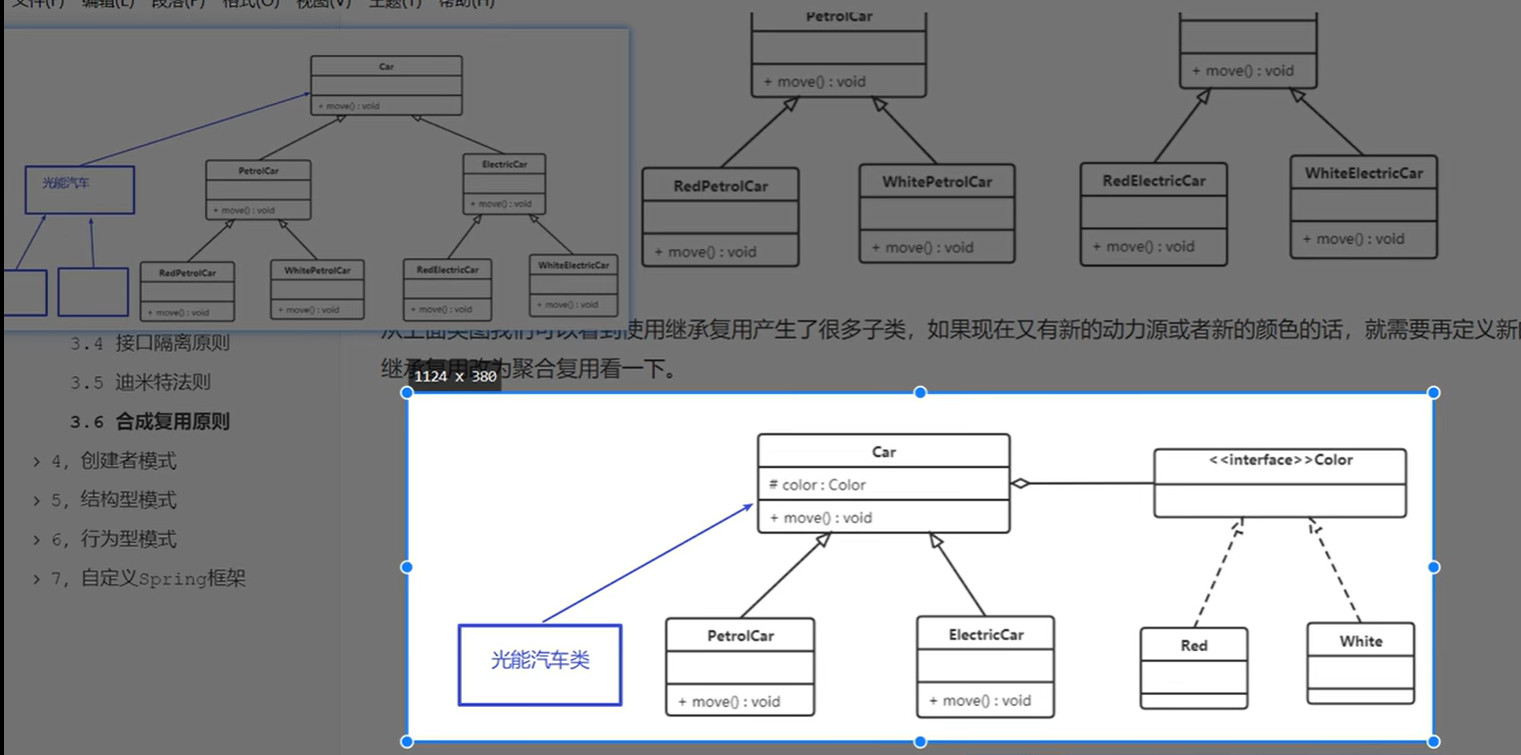

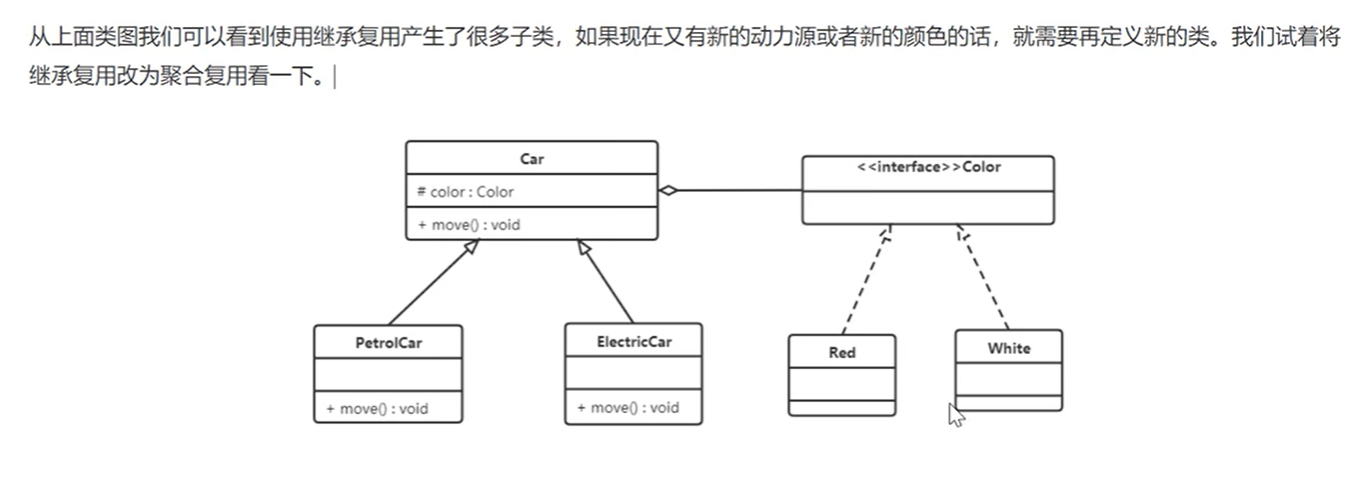

合成复用原则

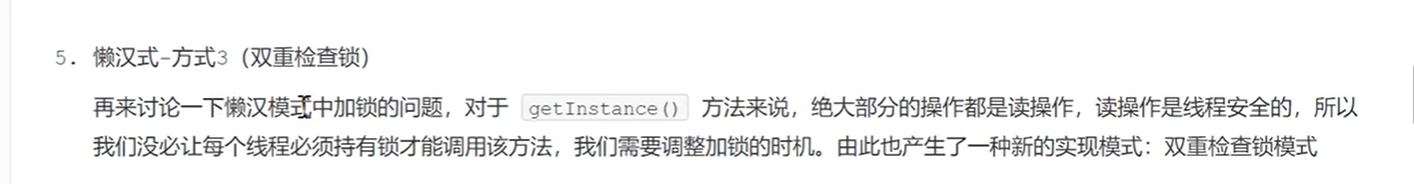

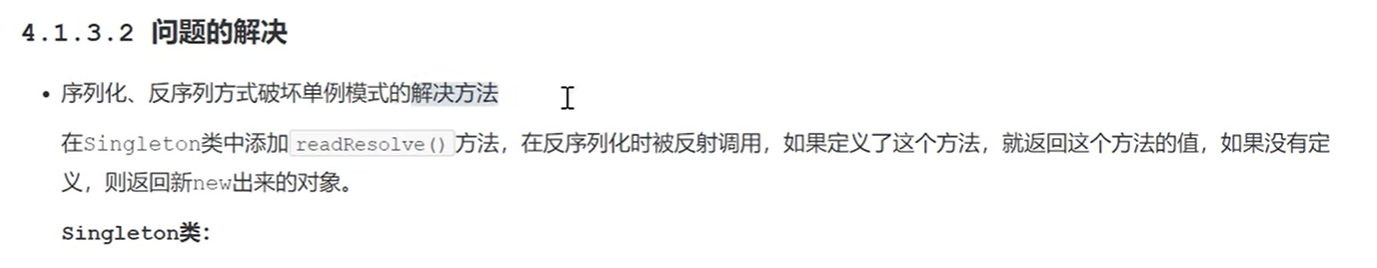

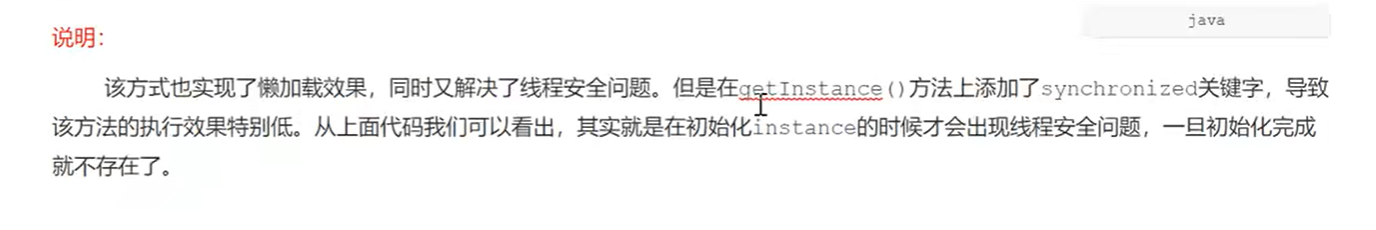

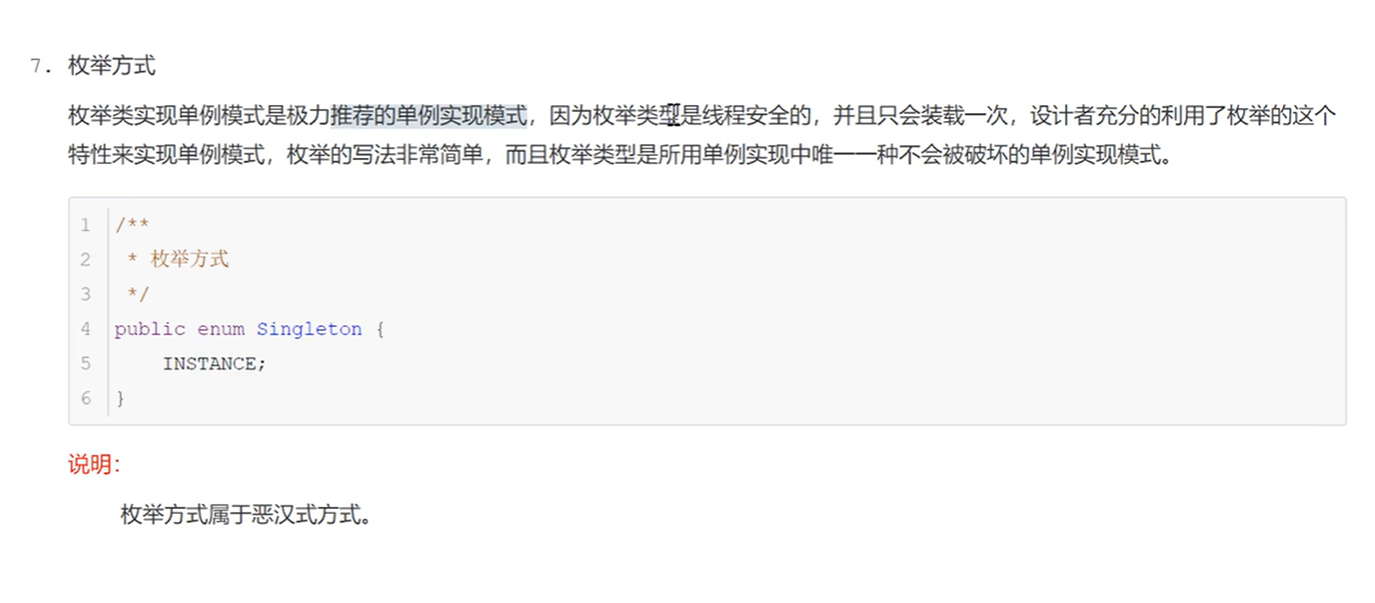

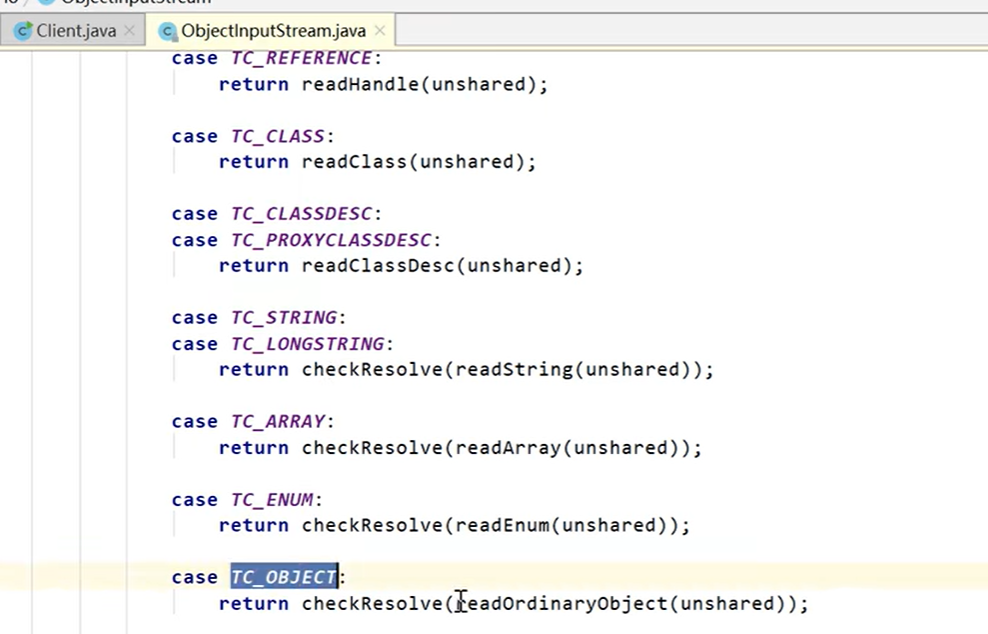

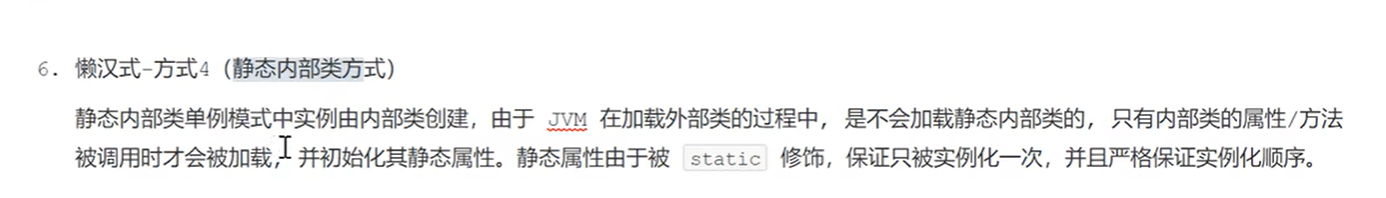

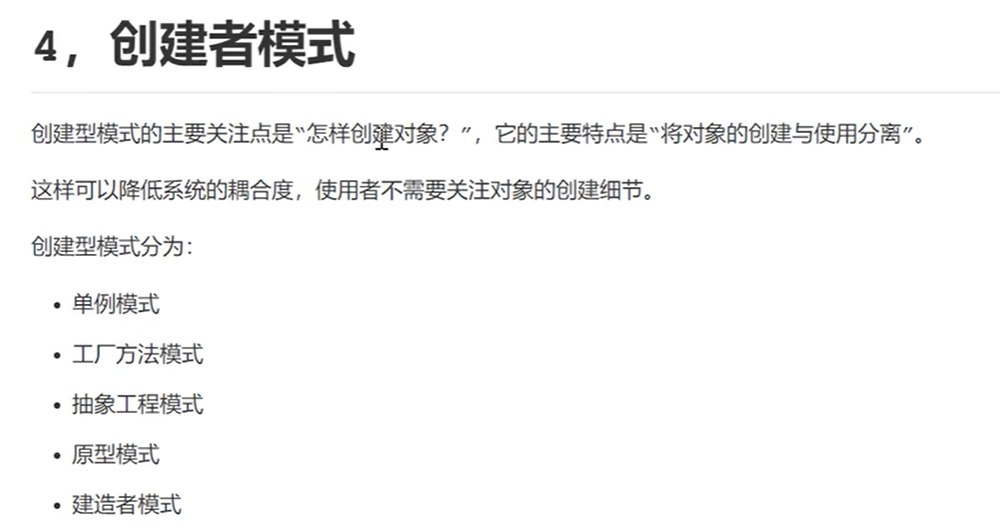

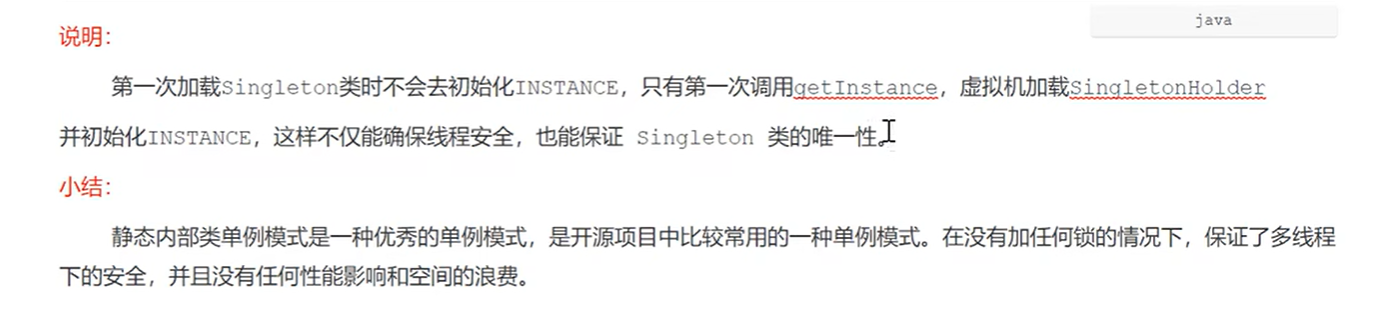

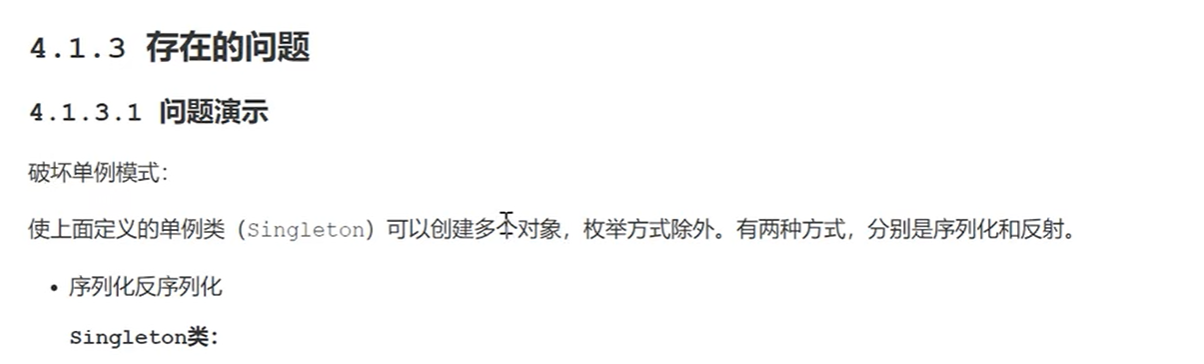

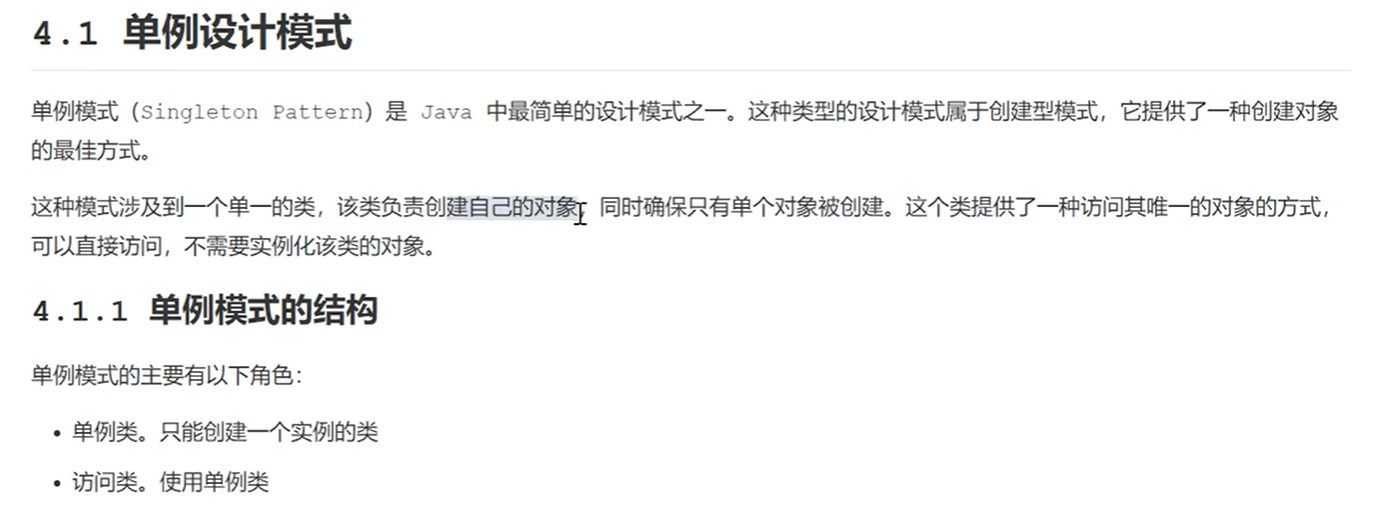

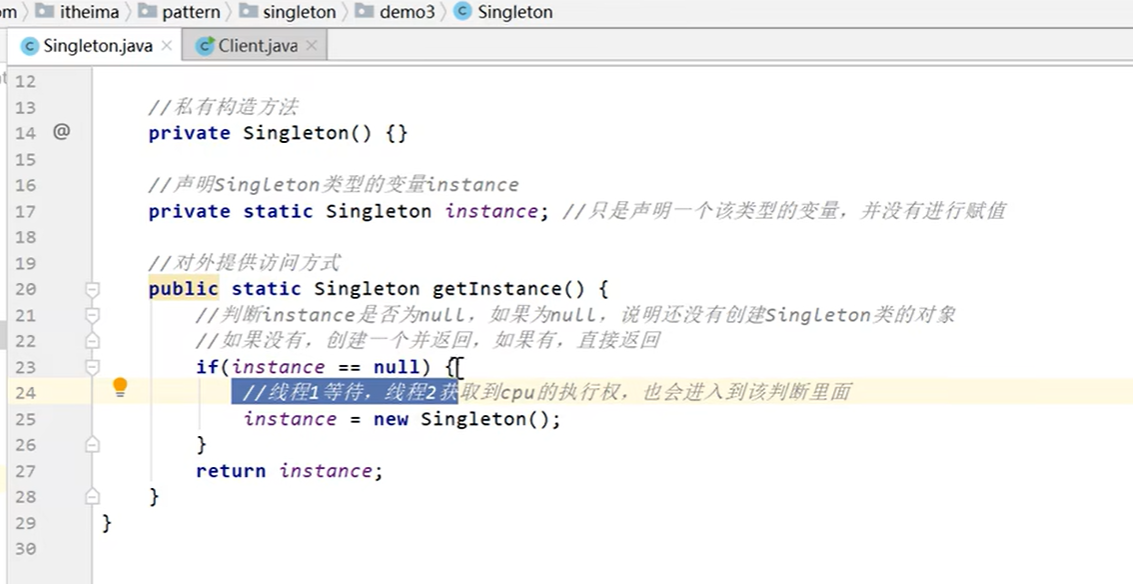

创建者模式

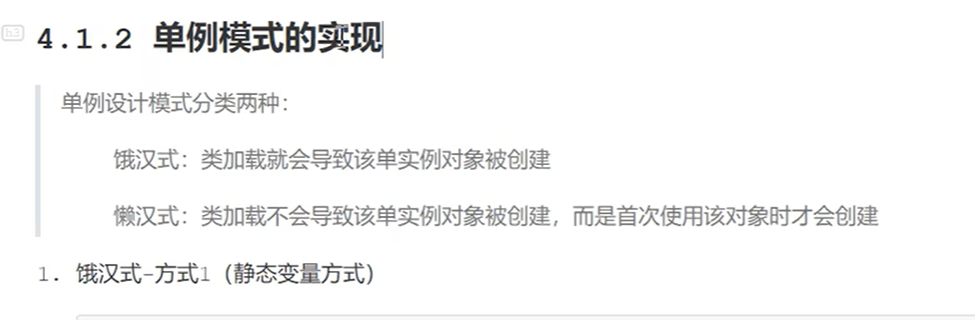

单例模式

实现

package org.malred.pattern.singleton.demo1;

// 饿汉式: 静态成员变量方式
public class Singleton {
    // 2. 在本类中创建本类对象
    private static Singleton instance = new Singleton();

    // 1. 私有构造方法
    private Singleton() {
    }

    // 3. 提供公共访问方式,让外界获取对象
    public static Singleton getInstance() {
        return instance;
    }
}

package org.malred.pattern.singleton.demo1;

public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.getInstance();
        Singleton instance1 = Singleton.getInstance();
        // 判断获取的是不是同一个对象
        // == 比较对象是比较在内存中的位置
        System.out.println(instance == instance1);
    }
}

package org.malred.pattern.singleton.demo2;

public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.getInstance();
        Singleton instance1 = Singleton.getInstance();
        System.out.println(instance==instance1);
    }
}

package org.malred.pattern.singleton.demo2;

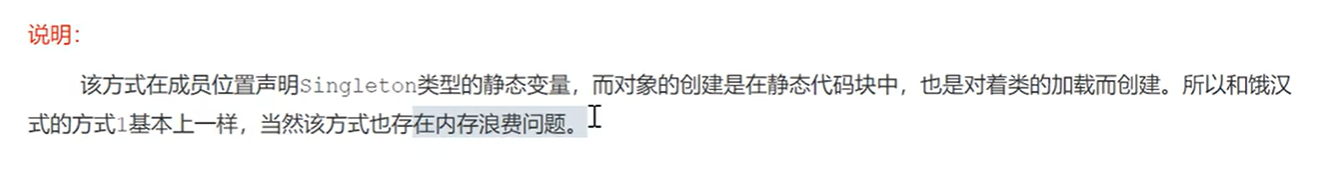

// 饿汉式: 静态代码块方式
public class Singleton {
    // 2. 声明singleton类型的变量
    private static Singleton instance; // null

    // 3. 在静态代码块中赋值
    static {
        instance = new Singleton();
    }

    // 1. 私有构造方法
    private Singleton() {
    }

    // 4. 对外提供获取方法
    public static Singleton getInstance() {
        return instance;
    }
}

package org.malred.pattern.singleton.demo3;

// 懒汉式
public class Singleton {
    // 声明Singleton类型的变量instance
    private static Singleton instance;

    // 私有构造方法
    private Singleton() {
    }

    // 对外提供访问方式
//    public static Singleton getInstance() {
    // 加上synchronized,让操作该对象的线程有一个同步锁,不会让其他线程操作该对象
    public static synchronized Singleton getInstance() {
        if (instance == null) {
            instance = new Singleton();
        }
        return instance;
    }
}

package org.malred.pattern.singleton.demo3;


public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.getInstance();
        Singleton instance1 = Singleton.getInstance();
        System.out.println(instance == instance1);
    }
}

package org.malred.pattern.singleton.demo4;

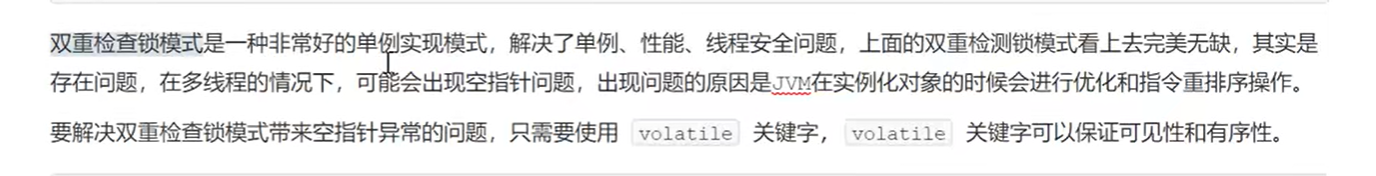

// 懒汉式: 双重检查锁
public class Singleton {

    // 声明Singleton类型的变量instance
    // 防止指令重排序导致可能的空指针问题
    private static volatile Singleton instance;

    // 私有构造方法
    private Singleton() {
    }

    // 对外提供公共的访问方式
    public static Singleton getInstance() {
        // 第一次判断, instance不为null, 直接返回
        if (instance == null) {
            synchronized (Singleton.class) {
                // 第二次判断
                if (instance == null) {
                    instance = new Singleton();
                }
            }
        }
        return instance;
    }
}

package org.malred.pattern.singleton.demo4;


public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.getInstance();
        Singleton instance1 = Singleton.getInstance();
        System.out.println(instance == instance1);
    }
}

package org.malred.pattern.singleton.demo5;

public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.getInstance();
        Singleton instance1 = Singleton.getInstance();
        System.out.println(instance == instance1);
    }
}

package org.malred.pattern.singleton.demo5;

// 懒汉式: 静态内部类
public class Singleton {
    // 私有构造方法
    private Singleton() {
    }

    // 提供公共访问方式
    public static Singleton getInstance() {
        return singletonHolder.INSTANCE;
    }

    // 定义静态内部类
    private static class singletonHolder {
        // 内部类中声明并初始化外部类对象
        private static Singleton INSTANCE = new Singleton();
    }
}

package org.malred.pattern.singleton.demo6;

// 恶汉式(浪费内存空间): 枚举方式
public enum Singleton {
    INSTANCE;
}

package org.malred.pattern.singleton.demo6;

public class Client {
    public static void main(String[] args) {
        Singleton instance = Singleton.INSTANCE;
        Singleton instance1 = Singleton.INSTANCE;
        System.out.println(instance == instance1);
    }
}

它文档里的恶汉式应该是打错了的饿汉式

存在的问题

序列化和反序列化

package org.malred.pattern.singleton.demo7;

import java.io.*;

// 测试反射破坏单例模式
public class Client {

    public static final String PATH = "F:\\codes\\backend\\java\\design_parttern\\src\\main\\java\\org\\malred\\pattern\\singleton\\demo7\\a.txt";

    public static void main(String[] args) throws Exception {
//        writeObject2File();
        // 两次读到的对象地址不同, 单例模式被破坏
        readObjectFromFile();
        readObjectFromFile();
    }

    // 向文件中写入数据(对象)
    public static void writeObject2File() throws Exception {
        // 1. 获取Singleton对象
        Singleton instance = Singleton.getInstance();
        // 2. 创建对象输出流对象
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream(PATH));
        // 3. 写对象
        oos.writeObject(instance);
        // 4. 释放资源
        oos.close();
    }

    // 从文件中读取数据(对象)
    public static void readObjectFromFile() throws Exception {
        // 1. 创建对象输入流对象
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(PATH));
        // 2. 读取对象
        Singleton instance = (Singleton) ois.readObject();
        System.out.println(instance);
        // 释放资源
        ois.close();
    }
}

package org.malred.pattern.singleton.demo7;

import java.io.Serializable;

public class Singleton implements Serializable {
    // 私有构造方法
    private Singleton() {
    }

    // 提供公共访问方式
    public static Singleton getInstance() {
        return Singleton.singletonHolder.INSTANCE;
    }

    // 定义静态内部类
    private static class singletonHolder {
        // 内部类中声明并初始化外部类对象
        private static Singleton INSTANCE = new Singleton();
    }
}

反射

package org.malred.pattern.singleton.demo8;

import java.lang.reflect.Constructor;

// 测试通过反射破坏单例模式
public class Client {
    public static void main(String[] args) throws Exception {
        // 1. 获取Singleton字节码对象
        Class clazz = Singleton.class;
        // 2. 获取无参构造方法对象
        Constructor constructor = clazz.getDeclaredConstructor();
        // 3. 取消访问检查
        constructor.setAccessible(true);
        // 4. 创建Singleton对象
        Singleton s1 = (Singleton) constructor.newInstance();
        Singleton s2 = (Singleton) constructor.newInstance();
        // false -> 破坏了单例模式
        System.out.println(s1 == s2);
    }
}

解决方法

序列化

package org.malred.pattern.singleton.demo7;

import java.io.Serializable;

public class Singleton implements Serializable {
    // 私有构造方法
    private Singleton() {
    }

    // 提供公共访问方式
    public static Singleton getInstance() {
        return Singleton.singletonHolder.INSTANCE;
    }

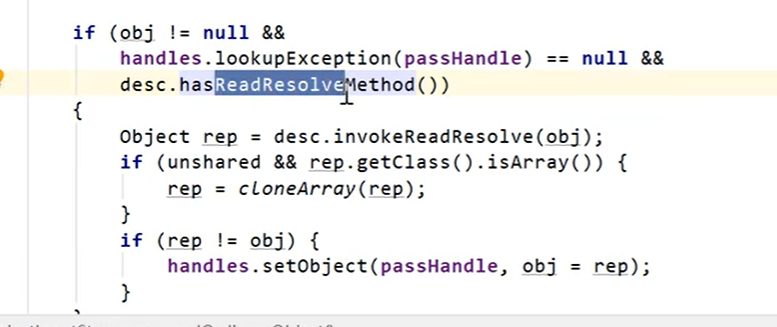

    // 反序列化时,会自动调用该方法,返回该方法的返回值 -> 解决序列化破坏单例模式问题
    public Object readResolve() {
        return singletonHolder.INSTANCE;
    }

    // 定义静态内部类
    private static class singletonHolder {
        // 内部类中声明并初始化外部类对象
        private static Singleton INSTANCE = new Singleton();
    }
}

反射

package org.malred.pattern.singleton.demo8;


public class Singleton {
    // 静态属性, 所有实例共享
    private static boolean flag = false;

    // 私有构造方法
    private Singleton() {
        // 解决反射多次调用无参构造创建对象破坏单例模式
        synchronized (Singleton.class) {
            // 如果flag为true, 说明是第二次访问, 抛异常
            if (flag) {
                throw new RuntimeException("不能创建多个对象");
            }
            // flag设置为true
            flag = true;
        }
    }

    // 提供公共访问方式
    public static Singleton getInstance() {
        return Singleton.singletonHolder.INSTANCE;
    }

    // 定义静态内部类
    private static class singletonHolder {
        // 内部类中声明并初始化外部类对象
        private static Singleton INSTANCE = new Singleton();
    }
}

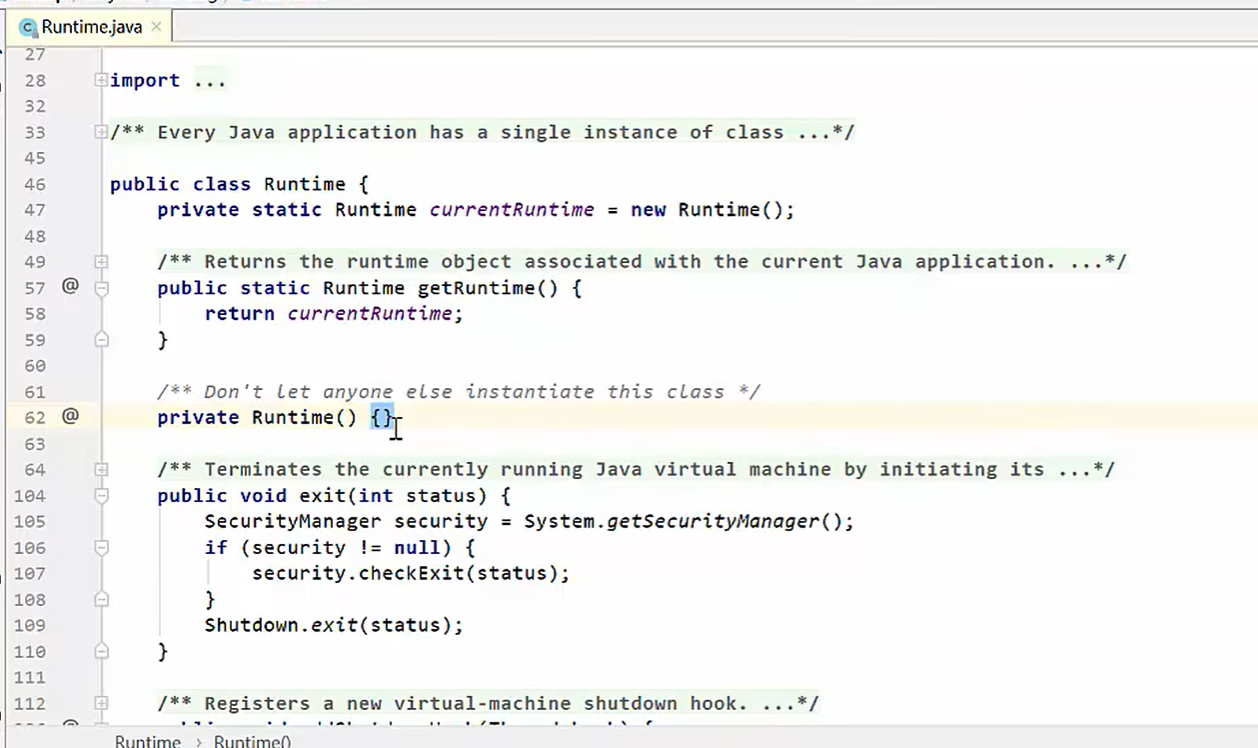

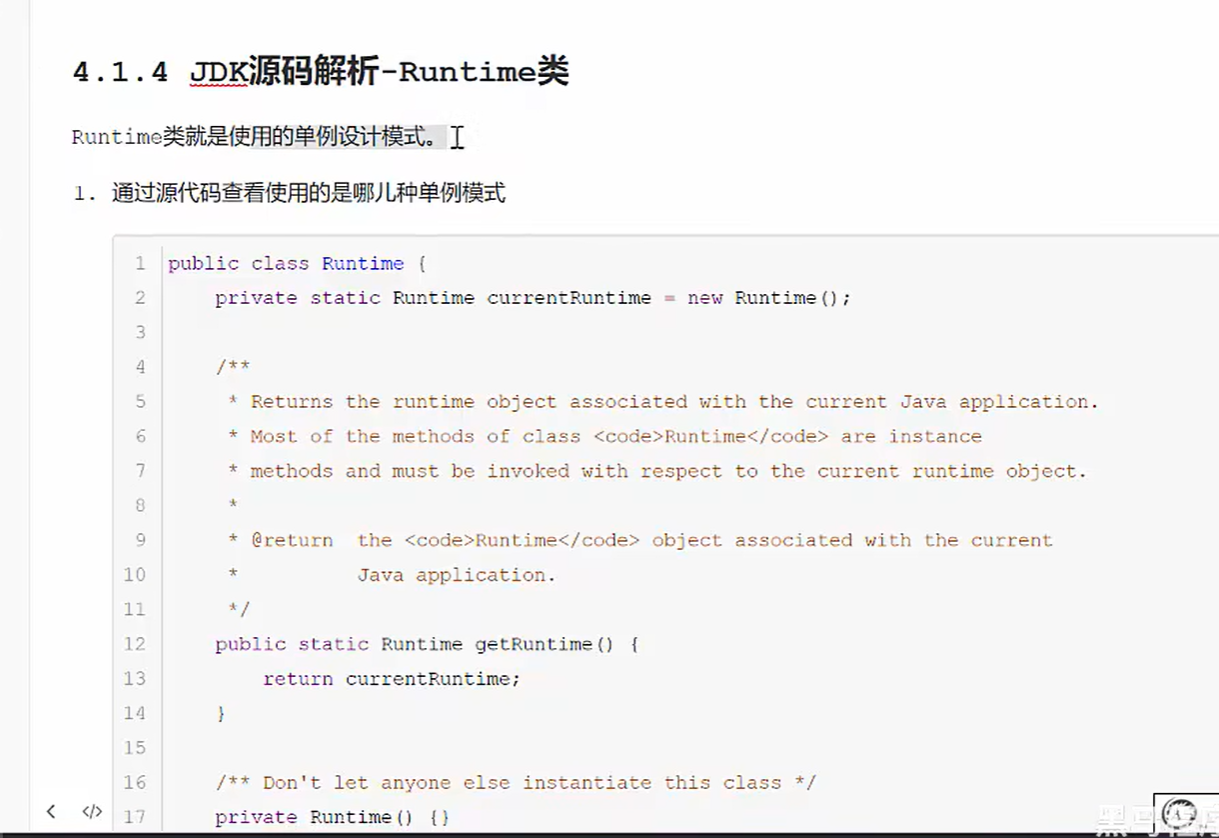

JDK - Runtime 类

package org.malred.pattern.singleton.JDK;

import java.io.InputStream;

public class RuntimeDemo {
    public static void main(String[] args) throws Exception {
        // 获取Runtime对象
        Runtime runtime = Runtime.getRuntime();
        // 调用exec
        Process process = runtime.exec("ipconfig");
        // 调用process的获取输入流的方法
        InputStream is = process.getInputStream();
        byte[] arr = new byte[1024 * 1024 * 100];
        // 读取数据
        int len = is.read(arr); // 返回读到的数据的个数
        // 将字节数组转换为字符串输出到控制台
        System.out.println(new String(arr, 0, len, "GBK"));
    }
}

工厂模式

点咖啡案例

package org.malred.pattern.factory.before;

public class client {
    public static void main(String[] args) {
        CoffeeStore store = new CoffeeStore();
        Coffee coffee = store.orderCoffee("latte");

        System.out.println(coffee.getName());
    }
}

package org.malred.pattern.factory.before;

// 咖啡店
public class CoffeeStore {
    public Coffee orderCoffee(String type) {
        // 根据不同类型创建不同咖啡对象
        Coffee coffee = null;
        if ("american".equals(type)) {
            coffee = new AmericanCoffee();
        } else if ("latte".equals(type)) {
            coffee = new LatteCoffee();
        } else {
            throw new RuntimeException("没有该种咖啡");
        }
        // 加配料
        coffee.addSugar();
        coffee.addMilk();

        return coffee;
    }
}

package org.malred.pattern.factory.before;

public class LatteCoffee extends Coffee {
    @Override
    public String getName() {
        return "拿铁咖啡";
    }
}

package org.malred.pattern.factory.before;

public class AmericanCoffee extends Coffee {
    @Override
    public String getName() {
        return "美式咖啡";
    }
}

package org.malred.pattern.factory.before;

// 咖啡类
public abstract class Coffee {
    public abstract String getName();

    public void addSugar() {
        System.out.println("加糖");
    }

    public void addMilk() {
        System.out.println("加奶");
    }
}

简单工厂模式

咖啡店和美式|拿铁咖啡类耦合

package org.malred.pattern.factory.SimpleFactory;

public class client {
    public static void main(String[] args) {
        CoffeeStore store = new CoffeeStore();
        Coffee coffee = store.orderCoffee("latte");

        System.out.println(coffee.getName());
    }
}

package org.malred.pattern.factory.SimpleFactory;

public class SimpleCoffeeFactory {
    public Coffee createCoffee(String type) {
        // 根据不同类型创建不同咖啡对象
        Coffee coffee = null;
        if ("american".equals(type)) {
            coffee = new AmericanCoffee();
        } else if ("latte".equals(type)) {
            coffee = new LatteCoffee();
        } else {
            throw new RuntimeException("没有该种咖啡");
        }
        return coffee;
    }
}

package org.malred.pattern.factory.SimpleFactory;

// 咖啡店
public class CoffeeStore {
    public Coffee orderCoffee(String type) {
        SimpleCoffeeFactory factory = new SimpleCoffeeFactory();
        Coffee coffee = factory.createCoffee(type);
        coffee.addMilk();
        coffee.addSugar();
        return coffee;
    }
}

工厂方法模式

package org.malred.pattern.factory.FactoryMethod;

public class Client {
    public static void main(String[] args) {
        CoffeeStore coffeeStore = new CoffeeStore();
        coffeeStore.setFactory(new AmericanCoffeeFactory());
        Coffee coffee = coffeeStore.orderCoffee();
        System.out.println(coffee.getName());
    }
}

package org.malred.pattern.factory.FactoryMethod;

// 咖啡店
public class CoffeeStore {
    private CoffeeFactory factory;

    public void setFactory(CoffeeFactory factory) {
        this.factory = factory;
    }

    public Coffee orderCoffee() {
        Coffee coffee = factory.createCoffee();
        coffee.addMilk();
        coffee.addSugar();
        return coffee;
    }
}

package org.malred.pattern.factory.FactoryMethod;

public class LatteCoffeeFactory implements CoffeeFactory {

    public Coffee createCoffee() {
        return new LatteCoffee();
    }
}

package org.malred.pattern.factory.FactoryMethod;

public class AmericanCoffeeFactory implements CoffeeFactory {

    public Coffee createCoffee() {
        return new AmericanCoffee();
    }
}

package org.malred.pattern.factory.FactoryMethod;

// 抽象工厂
public interface CoffeeFactory {
// 创建咖啡对象的方法
public Coffee createCoffee();
}

抽象工厂模式

package org.malred.pattern.factory.AbstractFactory;

public class Client {
    public static void main(String[] args) {
        ItalyDessertFactory factory = new ItalyDessertFactory();
        Coffee coffee = factory.createCoffee();
        Dessert dessert = factory.createDessert();
        System.out.println(coffee.getName());
        dessert.show();
    }
}

package org.malred.pattern.factory.AbstractFactory;

public class ItalyDessertFactory implements DessertFactory {
    @Override
    public Coffee createCoffee() {
        return new LatteCoffee();
    }

    @Override
    public Dessert createDessert() {
        return new Trimisu();
    }
}

package org.malred.pattern.factory.AbstractFactory;

public class AmericanDessertFactory implements DessertFactory {
    @Override
    public Coffee createCoffee() {
        return new AmericanCoffee();
    }

    @Override
    public Dessert createDessert() {
        return new MatchaMousse();
    }
}

package org.malred.pattern.factory.AbstractFactory;

public interface DessertFactory {
    Coffee createCoffee();

    Dessert createDessert();
}

package org.malred.pattern.factory.AbstractFactory;

public class MatchaMousse extends Dessert {
    @Override
    public void show() {
        System.out.println("抹茶慕斯");
    }
}

package org.malred.pattern.factory.AbstractFactory;

public class Trimisu extends Dessert {
    @Override
    public void show() {
        System.out.println("提拉米苏");
    }
}

package org.malred.pattern.factory.AbstractFactory;

public abstract class Dessert {
    public abstract void show();
}

模式扩展：简单工厂+配置文件解耦合

赏

转载请注明: malred-blog 黑马程序员Java设计模式详解， 23种Java设计模式（图解+框架源码分析+实战）

黑马mybatis教程全套视频教程

简介 mybatis 快速入门 create database if not exists mybatis; use mybatis; drop table if exists tb_user; create table tb_user

2023-09-14 java mybatis

java mybatis

前端架构师

第1周需求分析和架构设计：做什么，如何做？1-1 课程导学 2-1 周介绍_ev_1： x[3] 3-1 产品研发流程 3-2 以架构师的思维分析需求_ev_1： x[3] 3-3 项目浅层需求_ev_1： x[3] 3-4 深度需求

2023-09-11 前端

前端
