手写mybatis-渐进式源码实践

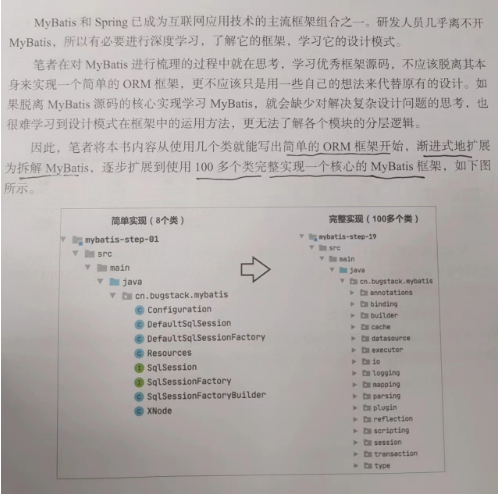

引言

1. 实现一个简单的 ORM 框架

ORM 框架解决的是面向对象和关系数据库之间互不匹配的问题

1.1 ORM 框架实现的说明

java 以 JDBC 方式连接数据库

1.2 简单 ORM 框架的设计

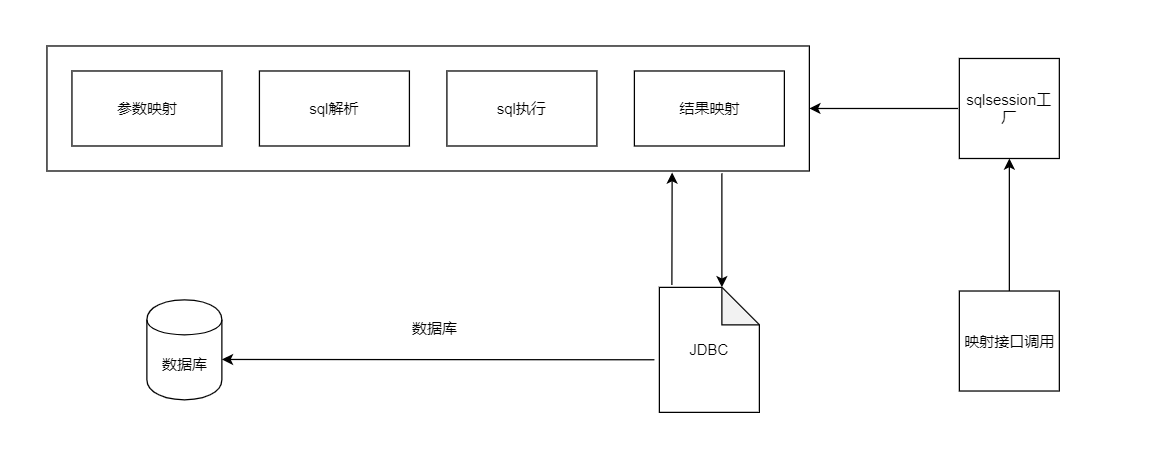

mybatis 这类 ORM 框架主要通过参数映射、sql 解析和执行、以及结果封装的方式对数据库进行操作

1.3 简单 ORM 框架的实现

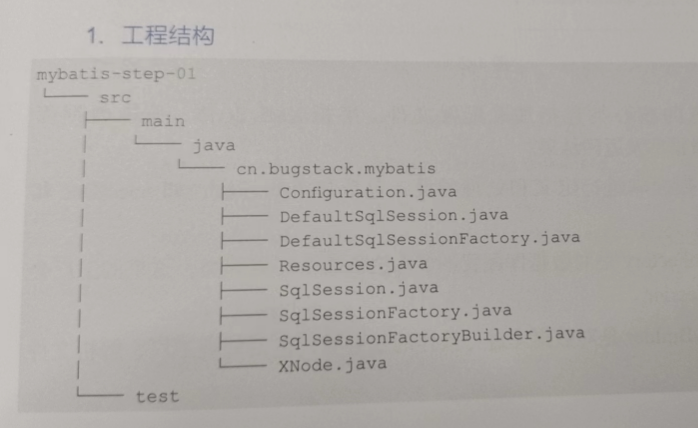

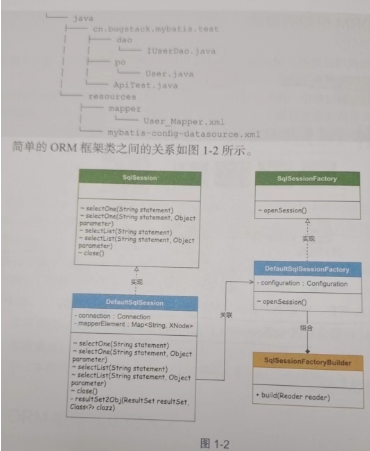

1.3.1 工程结构

1.3.2 定义 sqlsession 接口

public interface SqlSession {
    <T> T selectOne(String statement);

    <T> T selectOne(String statement, Object parameter);

    <T> List<T> selectList(String statement);

    <T> List<T> selectList(String statement, Object parameter);

    void close();
}

定义了对数据库操作的查询接口,分为多个和一个,还包含有参数和无参数的方法.mybatis 中,sql 语句的执行是从开启 sqlsession 会话开始的,之后创建执行器,这里为了简化,直接在 sqlsession 会话实现类 defaultsqlsession 中操作数据库并执行 sql 语句

1.3.3 sqlsession 默认实现类

包装了元素的提取、数据库的连接、jdbc 的执行,并且完成了 sql 语句执行时入参、出参的处理,最终返回查询结果

resultSet2Obj 相当于包装了 jdbc 操作数据库并将结果封装到 java 对象的操作

public class DefaultSqlSession implements SqlSession {

    private Connection connection;
    private Map<String, XNode> mapperElement;

    public DefaultSqlSession(Connection connection, Map<String, XNode> mapperElement) {
        this.connection = connection;
        this.mapperElement = mapperElement;
    }

    @Override
    public <T> T selectOne(String statement) {
        try {
            XNode xNode = mapperElement.get(statement);
            PreparedStatement preparedStatement = connection.prepareStatement(xNode.getSql());
            ResultSet resultSet = preparedStatement.executeQuery();
            List<T> objects = resultSet2Obj(resultSet, Class.forName(xNode.getResultType()));
            return objects.get(0);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    @Override
    public <T> T selectOne(String statement, Object parameter) {
        XNode xNode = mapperElement.get(statement);
        Map<Integer, String> parameterMap = xNode.getParameter();
        try {
            PreparedStatement preparedStatement = connection.prepareStatement(xNode.getSql());
            buildParameter(preparedStatement, parameter, parameterMap);
            ResultSet resultSet = preparedStatement.executeQuery();
            List<T> objects = resultSet2Obj(resultSet, Class.forName(xNode.getResultType()));
            return objects.get(0);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    @Override
    public <T> List<T> selectList(String statement) {
        XNode xNode = mapperElement.get(statement);
        try {
            PreparedStatement preparedStatement = connection.prepareStatement(xNode.getSql());
            ResultSet resultSet = preparedStatement.executeQuery();
            return resultSet2Obj(resultSet, Class.forName(xNode.getResultType()));
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    @Override
    public <T> List<T> selectList(String statement, Object parameter) {
        XNode xNode = mapperElement.get(statement);
        Map<Integer, String> parameterMap = xNode.getParameter();
        try {
            PreparedStatement preparedStatement = connection.prepareStatement(xNode.getSql());
            buildParameter(preparedStatement, parameter, parameterMap);
            ResultSet resultSet = preparedStatement.executeQuery();
            return resultSet2Obj(resultSet, Class.forName(xNode.getResultType()));
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    private void buildParameter(PreparedStatement preparedStatement, Object parameter, Map<Integer, String> parameterMap) throws SQLException, IllegalAccessException {

        int size = parameterMap.size();
        // 单个参数
        if (parameter instanceof Long) {
            for (int i = 1; i <= size; i++) {
                preparedStatement.setLong(i, Long.parseLong(parameter.toString()));
            }
            return;
        }

        if (parameter instanceof Integer) {
            for (int i = 1; i <= size; i++) {
                preparedStatement.setInt(i, Integer.parseInt(parameter.toString()));
            }
            return;
        }

        if (parameter instanceof String) {
            for (int i = 1; i <= size; i++) {
                preparedStatement.setString(i, parameter.toString());
            }
            return;
        }

        Map<String, Object> fieldMap = new HashMap<>();
        // 对象参数
        Field[] declaredFields = parameter.getClass().getDeclaredFields();
        for (Field field : declaredFields) {
            String name = field.getName();
            field.setAccessible(true);
            Object obj = field.get(parameter);
            field.setAccessible(false);
            fieldMap.put(name, obj);
        }

        for (int i = 1; i <= size; i++) {
            String parameterDefine = parameterMap.get(i);
            Object obj = fieldMap.get(parameterDefine);

            if (obj instanceof Short) {
                preparedStatement.setShort(i, Short.parseShort(obj.toString()));
                continue;
            }

            if (obj instanceof Integer) {
                preparedStatement.setInt(i, Integer.parseInt(obj.toString()));
                continue;
            }

            if (obj instanceof Long) {
                preparedStatement.setLong(i, Long.parseLong(obj.toString()));
                continue;
            }

            if (obj instanceof String) {
                preparedStatement.setString(i, obj.toString());
                continue;
            }

            if (obj instanceof Date) {
                preparedStatement.setDate(i, (java.sql.Date) obj);
            }

        }

    }

    private <T> List<T> resultSet2Obj(ResultSet resultSet, Class<?> clazz) {
        List<T> list = new ArrayList<>();
        try {
            ResultSetMetaData metaData = resultSet.getMetaData();
            int columnCount = metaData.getColumnCount();
            // 每次遍历行值
            while (resultSet.next()) {
                T obj = (T) clazz.newInstance();
                for (int i = 1; i <= columnCount; i++) {
                    Object value = resultSet.getObject(i);
                    String columnName = metaData.getColumnName(i);
                    String setMethod = "set" + columnName.substring(0, 1).toUpperCase() + columnName.substring(1);
                    Method method;
                    if (value instanceof Timestamp) {
                        method = clazz.getMethod(setMethod, Date.class);
                    } else {
                        method = clazz.getMethod(setMethod, value.getClass());
                    }
                    method.invoke(obj, value);
                }
                list.add(obj);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return list;
    }

    @Override
    public void close() {
        if (null == connection) return;
        try {
            connection.close();
        } catch (SQLException e) {
            e.printStackTrace();
        }
    }
}

1.3.4 sqlsessionFactory 接口

openSession 方法用于开启数据库会话

public interface SqlSessionFactory {
    SqlSession openSession();
}

1.3.5 sqlSessionFactory 具体实现类

该实现类构造函数传递了 configuration 配置文件(给 defaultSqlSession),包括 Connection、Map(dataSource)、Map(mapperElement)

public class DefaultSqlSessionFactory implements SqlSessionFactory {

    private final Configuration configuration;

    public DefaultSqlSessionFactory(Configuration configuration) {
        this.configuration = configuration;
    }

    @Override
    public SqlSession openSession() {
        // 传递配置信息
        return new DefaultSqlSession(configuration.connection, configuration.mapperElement);
    }
}

1.3.6 SqlSessionFactoryBuilder 实现类

public class SqlSessionFactoryBuilder {

    public DefaultSqlSessionFactory build(Reader reader) {
        SAXReader saxReader = new SAXReader();
        try {
            Document document = saxReader.read(new InputSource(reader));
            Configuration configuration = parseConfiguration(document.getRootElement());
            return new DefaultSqlSessionFactory(configuration);
        } catch (DocumentException e) {
            e.printStackTrace();
        }
        return null;
    }

    private Configuration parseConfiguration(Element root) {
        Configuration configuration = new Configuration();
        configuration.setDataSource(dataSource(root.selectNodes("//dataSource")));
        configuration.setConnection(connection(configuration.dataSource));
        configuration.setMapperElement(mapperElement(root.selectNodes("mappers")));
        return configuration;
    }

    // 获取数据源配置信息
    private Map<String, String> dataSource(List<Element> list) {
        Map<String, String> dataSource = new HashMap<>(4);
        Element element = list.get(0);
        List content = element.content();
        for (Object o : content) {
            Element e = (Element) o;
            String name = e.attributeValue("name");
            String value = e.attributeValue("value");
            dataSource.put(name, value);
        }
        return dataSource;
    }

    private Connection connection(Map<String, String> dataSource) {
        try {
            Class.forName(dataSource.get("driver"));
            return DriverManager.getConnection(dataSource.get("url"), dataSource.get("username"), dataSource.get("password"));
        } catch (ClassNotFoundException | SQLException e) {
            e.printStackTrace();
        }
        return null;
    }

    // 获取SQL语句信息
    private Map<String, XNode> mapperElement(List<Element> list) {
        Map<String, XNode> map = new HashMap<>();

        Element element = list.get(0);
        List content = element.content();
        for (Object o : content) {
            Element e = (Element) o;
            String resource = e.attributeValue("resource");

            try {
                Reader reader = Resources.getResourceAsReader(resource);
                SAXReader saxReader = new SAXReader();
                Document document = saxReader.read(new InputSource(reader));
                Element root = document.getRootElement();
                //命名空间
                String namespace = root.attributeValue("namespace");

                // SELECT
                List<Element> selectNodes = root.selectNodes("select");
                for (Element node : selectNodes) {
                    String id = node.attributeValue("id");
                    String parameterType = node.attributeValue("parameterType");
                    String resultType = node.attributeValue("resultType");
                    String sql = node.getText();

                    // ? 匹配
                    Map<Integer, String> parameter = new HashMap<>();
                    Pattern pattern = Pattern.compile("(#\\{(.*?)})");
                    Matcher matcher = pattern.matcher(sql);
                    for (int i = 1; matcher.find(); i++) {
                        String g1 = matcher.group(1);
                        String g2 = matcher.group(2);
                        parameter.put(i, g2);
                        sql = sql.replace(g1, "?");
                    }

                    XNode xNode = new XNode();
                    xNode.setNamespace(namespace);
                    xNode.setId(id);
                    xNode.setParameterType(parameterType);
                    xNode.setResultType(resultType);
                    xNode.setSql(sql);
                    xNode.setParameter(parameter);

                    map.put(namespace + "." + id, xNode);
                }
            } catch (Exception ex) {
                ex.printStackTrace();
            }

        }
        return map;
    }

}

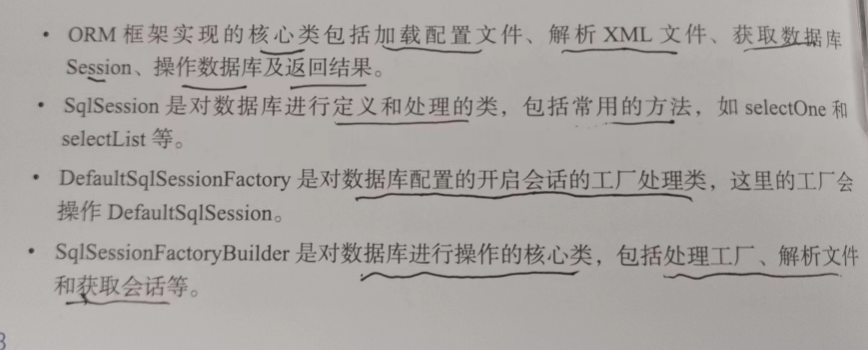

包括的核心方法有

• build 构建实例化元素

  主要用于创建解析 XML 文件的类,以及初始化 SqlSession 工厂类.saxReader.setEntityResolver(new XMLMapperEntityResolver())是为了保证在不连接网络时也可以解析 XML 文件,否则需要从互联网上获取 DTD 文件

• parseConfiguration 解析配置

  获取 XML 文件中的元素,主要是 dataSource(数据库连接信息)和 mappers(数据库操作语句的解析)

• dataSource 获取数据库配置

  获取 xml 中关于创建数据库连接的属性信息,先通过 name 获取属性名称,再通过 value 获取值

• connection(Map dataSource) 连接数据库

  连接数据库(Class.forName(dataSource.get(“driver”))),要连接多数据库时,可以在这里扩展

• mapperElement 解析 sql 语句

  解析 xml 文件里的 sql 语句,这里使用正则表达式解析

1.4 ORM 框架的功能测试

1.4.1 创建库表信息

CREATE DATABASE mybatis;

USE mybatis;

CREATE TABLE USER (
    id BIGINT NOT NULL AUTO_INCREMENT COMMENT '自增id',
    userId VARCHAR(9) COMMENT '用户id',
    userHead VARCHAR(16) COMMENT '用户头像',
    createTime TIMESTAMP NULL COMMENT '创建时间',
    updateTime TIMESTAMP NULL COMMENT '更新时间',
    userName VARCHAR(64),
    PRIMARY KEY (id)
) ENGINE = INNODB CHARSET = utf8;

INSERT INTO USER (id,userId, userHead,createTime,updateTime,userName)
VALUES (1,'10001','1_04','2022-04-13 00:00:00','2022-04-13 00:00:00','小傅哥');

1.4.2 创建 user 用户类和 DAO 接口类
