图灵手写springboot
造轮子 java
java 造轮子
发布日期:   2023-06-10
文章字数:   2.2k
阅读时长:   11 分
阅读次数:

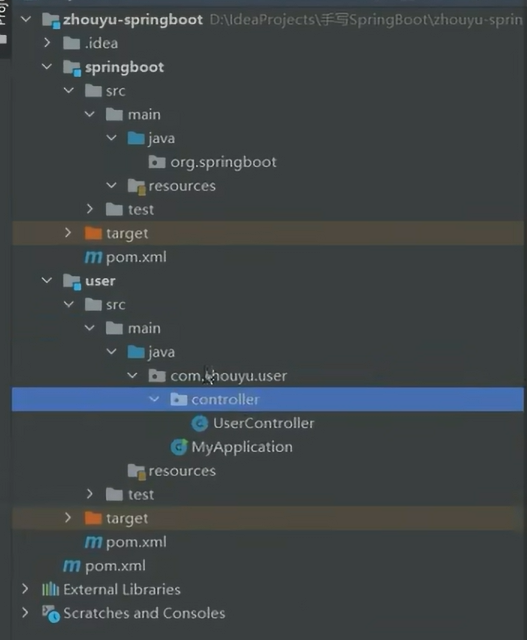

1. 工程介绍

pom.xml(springboot)

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.malred</groupId>
    <artifactId>springboot</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot</name>
    <description>own springboot</description>
    <properties>
        <java.version>11</java.version>
        <spring.verion>5.3.18</spring.verion>
        <tomcat.version>9.0.60</tomcat.version>
        <servlet.version>4.0.1</servlet.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.verion}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.verion}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.verion}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.verion}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-core</artifactId>
            <version>${tomcat.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>${servlet.version}</version>
        </dependency>
    </dependencies>
</project>

pom.xml(user)

2. java代码启动tomcat

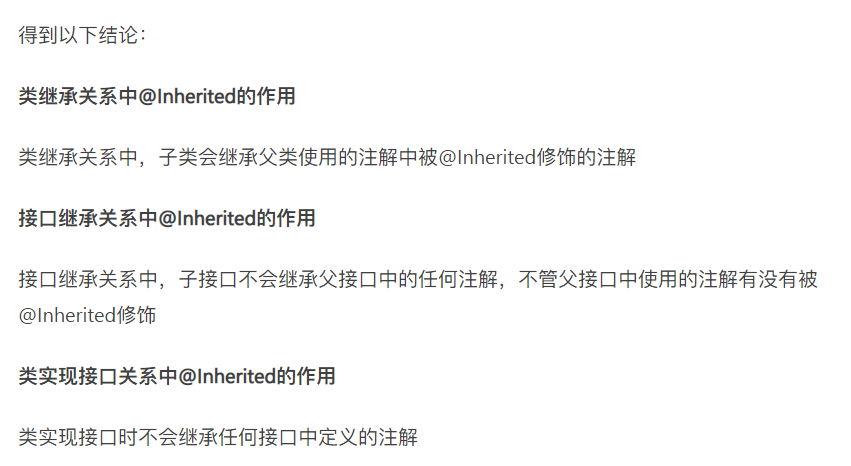

@Inherited的作用

创建@SpringBootApplication注解和SpringApplication类(run方法)

@SpringBootApplication

package org.springboot;

import java.lang.annotation.*;

@Target(ElementType.TYPE) // 该注解可以加到类上
@Retention(RetentionPolicy.RUNTIME) // 运行时(可以被反射获取)
@Documented // 自动生成文档
@Inherited // 继承注解
public @interface SpringbootApplication {

}

SpringApplication.java

package org.springboot;

public class SpringApplication {
    public static void run(Class clazz) {

    }
}

user的main方法里使用

使用自己本地的maven项目 -> 1. 被依赖的项目执行 mvn install 安装到本地目录 -> 2. 其他项目(user)引入该项目 ->
3. 打包项目(user) mvn package -> 4. 在target里找到该项目的jar, java -jar xxx.jar 运行

package com.example.user;

import org.springboot.*;

@SpringBootApplication
public class UserApplication {

    public static void main(String[] args) {
        SpringApplication.run(UserApplication.class);
    }

}

在run方法里启动tomcat

SpringApplication.java

package org.springboot;

import org.apache.catalina.Engine;
import org.apache.catalina.Host;
import org.apache.catalina.Service;
import org.apache.catalina.LifecycleException;
import org.apache.catalina.Server;
import org.apache.catalina.Context;
import org.apache.catalina.connector.Connector;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.core.StandardEngine;
import org.apache.catalina.core.StandardHost;
import org.apache.catalina.startup.Tomcat;

public class SpringApplication {

  public static void run(Class clazz) {
    // 启动tomcat (jetty,undertow等web容器)
    startTomcat();
  }

  private static void startTomcat() {
    Tomcat tomcat = new Tomcat();

    Server server = tomcat.getServer();
    Service service = server.findService("Tomcat");

    Connector connector = new Connector();
    connector.setPort(10086);

    Engine engine = new StandardEngine();
    engine.setDefaultHost("localhost");

    Host host = new StandardHost();
    host.setName("localhost");

    String contextPath = "";
    Context context = new StandardContext();
    context.setPath(contextPath);
    context.addLifecycleListener(new Tomcat.FixContextListener());

    host.addChild(context);
    engine.addChild(host);

    service.setContainer(engine);
    service.addConnector(connector);

    try {
      tomcat.start();
    } catch (LifecycleException e) {
      e.printStackTrace();
    }
  }
}

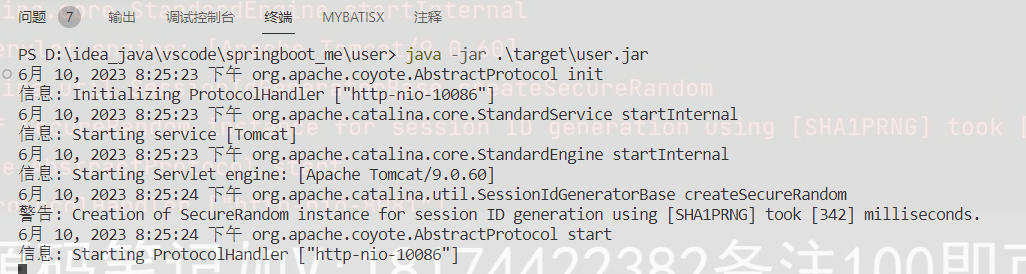

在user项目里使用,看能否启动tomcat

先mvn install 我们写的springboot,然后mvn package 这个user项目

3. 100行代码模拟极简版springboot

SpringApplication.java

给tomcat添加dispatcher

package org.springboot;

import org.apache.catalina.Context;
import org.apache.catalina.Engine;
import org.apache.catalina.Host;
import org.apache.catalina.LifecycleException;
import org.apache.catalina.Server;
import org.apache.catalina.Service;
import org.apache.catalina.connector.Connector;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.core.StandardEngine;
import org.apache.catalina.core.StandardHost;
import org.apache.catalina.startup.Tomcat;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.servlet.DispatcherServlet;

public class SpringApplication {

  public static void run(Class clazz) {
    // 创建spring容器
    AnnotationConfigWebApplicationContext applicationContext = new AnnotationConfigWebApplicationContext();
    // 注册配置类(这里用的是传入的那个类,也就是我们springboot项目的启动类)
    applicationContext.register(clazz);
    // 启动spring容器
    applicationContext.refresh();

    // 启动tomcat (jetty,undertow等web容器)
    startTomcat(applicationContext);
  }

  /**
   * 启动tomcat
   * @param applicationContext spring容器,可以获得带controller注解的bean
   */
  private static void startTomcat(WebApplicationContext applicationContext) {
    Tomcat tomcat = new Tomcat();

    Server server = tomcat.getServer();
    Service service = server.findService("Tomcat");

    Connector connector = new Connector();
    connector.setPort(10086);

    Engine engine = new StandardEngine();
    engine.setDefaultHost("localhost");

    Host host = new StandardHost();
    host.setName("localhost");

    String contextPath = "";
    Context context = new StandardContext();
    context.setPath(contextPath);
    context.addLifecycleListener(new Tomcat.FixContextListener());

    host.addChild(context);
    engine.addChild(host);

    service.setContainer(engine);
    service.addConnector(connector);

    // 处理中心
    tomcat.addServlet(
      contextPath,
      "dispatcher",
      new DispatcherServlet(applicationContext)
    );
    // dispatcherServlet处理所有请求
    context.addServletMappingDecoded("/*", "dispatcher");

    try {
      tomcat.start();
    } catch (LifecycleException e) {
      e.printStackTrace();
    }
  }
}

SpringBootApplication.java

添加扫描注解,启动类添加了SpringBootApplication注解,传入spring容器(通过SpringApplication的run方法),
注解解析,也会解析到这个扫描注解,默认扫描有该扫描注解的类的包路径

package org.springboot;

import java.lang.annotation.*;
import org.springframework.context.annotation.ComponentScan;

@Target(ElementType.TYPE) // 该注解可以加到类上
@Retention(RetentionPolicy.RUNTIME) // 运行时(可以被反射获取)
@Documented // 自动生成文档
@Inherited // 继承注解
@ComponentScan // 如果没有配置,会默认解析有该注解的类的包路径
public @interface SpringBootApplication {
}

user

controller/UserController.java

package com.example.user.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class UserController {

  @GetMapping("/test")
  public String test() {
      return "hello world";
  }

}

UserApplication.java

package com.example.user;

import org.springboot.*;

// 这个类作为配置类传入spring容器,spring容器解析该类的注解
@SpringBootApplication
public class UserApplication {

  // 如果有@Bean也会被解析为bean
  public static void main(String[] args) {
    SpringApplication.run(UserApplication.class);
  }
}

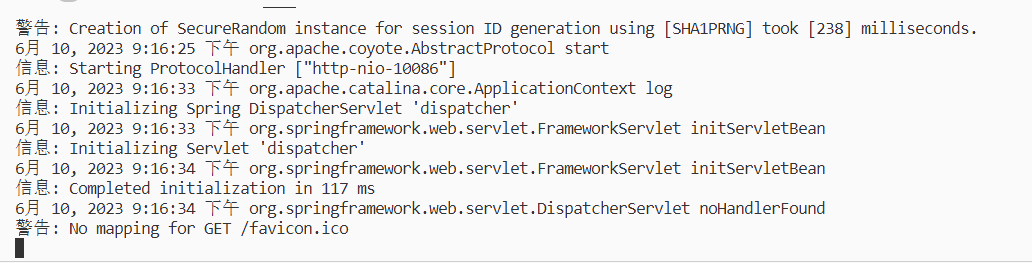

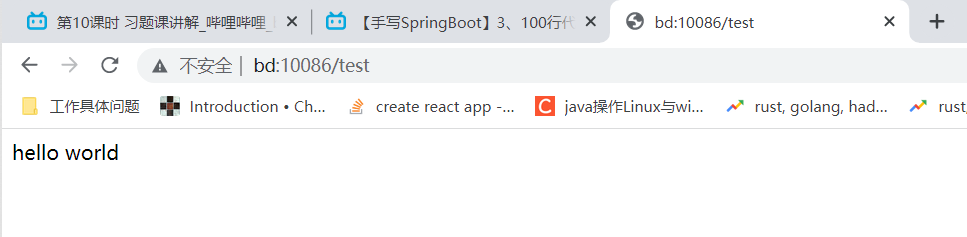

启动


4. 手写模拟实现多态webServer

此时是写死了只能用tomcat,如何可以动态使用其他的

webServer

定义一个带start方法的接口,不同实现类用不同web容器实现start内部逻辑

添加jetty依赖

        <dependency>
            <groupId>org.eclipse.jetty</groupId>
            <artifactId>jetty-server</artifactId>
            <version>${jetty.version}</version>
        </dependency>

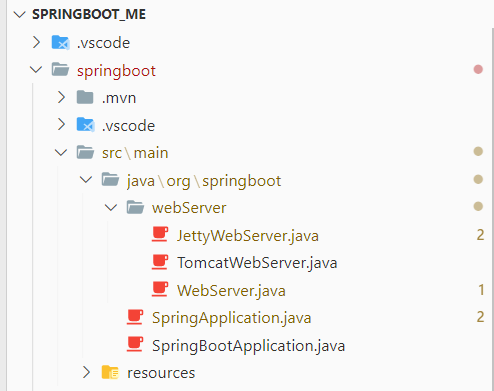

WebServer.java

package org.springboot.WebServer;

public interface WebServer {
  public void start();
}

TomcatWebServer.java

package org.springboot.WebServer;

public class TomcatWebServer implements WebServer {

  @Override
  public void start() {

  }
}

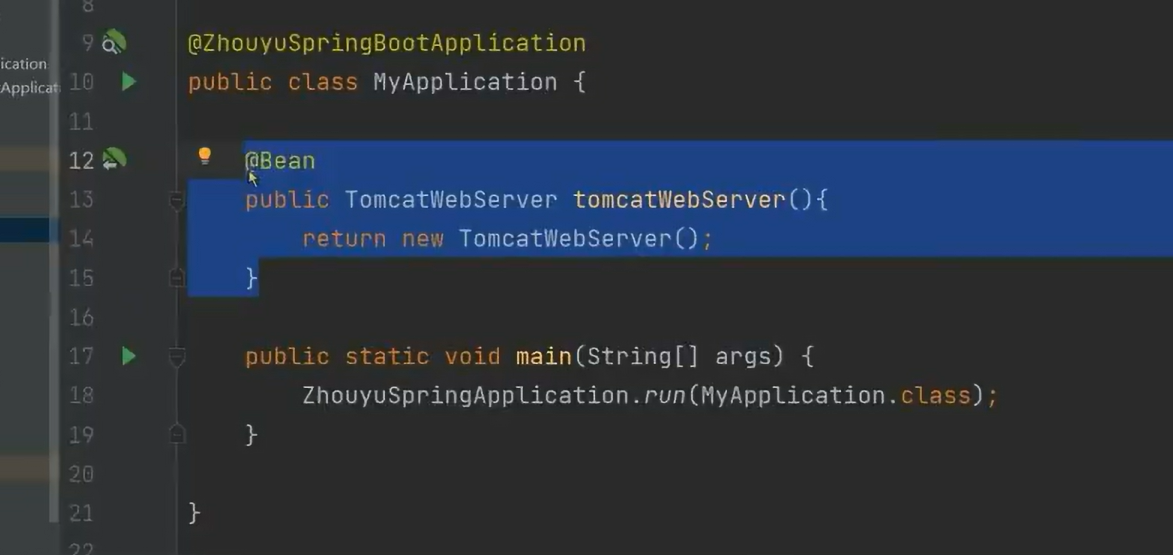

此时,如果要切换不同的web容器,可以由用户来@Bean指定用哪个实现类,但是这样还是很麻烦

5. 模拟WebServer自动配置类

WebServerAutoConfiguration.java

package org.springboot.webServer;

import org.springboot.webServer.Conditional.JettyConditional;
import org.springboot.webServer.Conditional.TomcatConditional;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Conditional;
import org.springframework.context.annotation.Configuration;

@Configuration
// 创建Bean,创建不同web容器
public class WebServerAutoConfiguration {

  @Bean
  @Conditional(TomcatConditional.class) // 为该bean的生效添加条件
  public TomcatWebServer tomcatWebServer() {
    return new TomcatWebServer();
  }

  @Bean
  @Conditional(JettyConditional.class)
  public JettyWebServer jettyWebServer() {
    return new JettyWebServer();
  }
}

依赖传递控制

控制依赖的传递,防止子工程因为两个依赖都有而有多个WebServer实例从而报错(我们自己添加的判断)

springboot: pom.xml

        <dependency>
            <groupId>org.eclipse.jetty</groupId>
            <artifactId>jetty-server</artifactId>
            <version>${jetty.version}</version>
            <!-- 依赖传递控制(不会传给子工程) -->
            <optional>true</optional>
        </dependency>

注册bean的条件类

JettyConditional

package org.springboot.webServer.Conditional;

import org.springframework.context.annotation.Condition;
import org.springframework.context.annotation.ConditionContext;
import org.springframework.core.type.AnnotatedTypeMetadata;

/**
 * 自动配置类JettyWebServer的bean的生效条件
 */
public class JettyConditional implements Condition {

  @Override
  public boolean matches(
    ConditionContext context,
    AnnotatedTypeMetadata metadata
  ) {
    // 加载类,如果没有表示没有jetty依赖
    try {
      context.getClassLoader().loadClass("org.eclipse.jetty.server.Server");
      return true;
    } catch (ClassNotFoundException e) {
      return false;
    }
  }
}

TomcatConditional

package org.springboot.webServer.Conditional;

import org.springframework.context.annotation.Condition;
import org.springframework.context.annotation.ConditionContext;
import org.springframework.core.type.AnnotatedTypeMetadata;

/**
 * 自动配置类TomcatWebServer的bean的生效条件
 */
public class TomcatConditional implements Condition {

  @Override
  public boolean matches(
    ConditionContext context,
    AnnotatedTypeMetadata metadata
  ) {
    // 加载类,如果没有表示没有tomcat依赖
    try {
      context.getClassLoader().loadClass("org.apache.catalina.startup.Tomcat");
      return true;
    } catch (ClassNotFoundException e) {
      return false;
    }
  }
}

在@SpringBootApplication注解中导入自动配置类

package org.springboot;

import java.lang.annotation.*;

import org.springboot.webServer.WebServerAutoConfiguration;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Import;

@Target(ElementType.TYPE) // 该注解可以加到类上
@Retention(RetentionPolicy.RUNTIME) // 运行时(可以被反射获取)
@Documented // 自动生成文档
@Inherited // 继承注解
@ComponentScan // 如果没有配置,会默认解析有该注解的类的包路径
@Import(WebServerAutoConfiguration.class) // 导入自动配置类
public @interface SpringBootApplication {
}

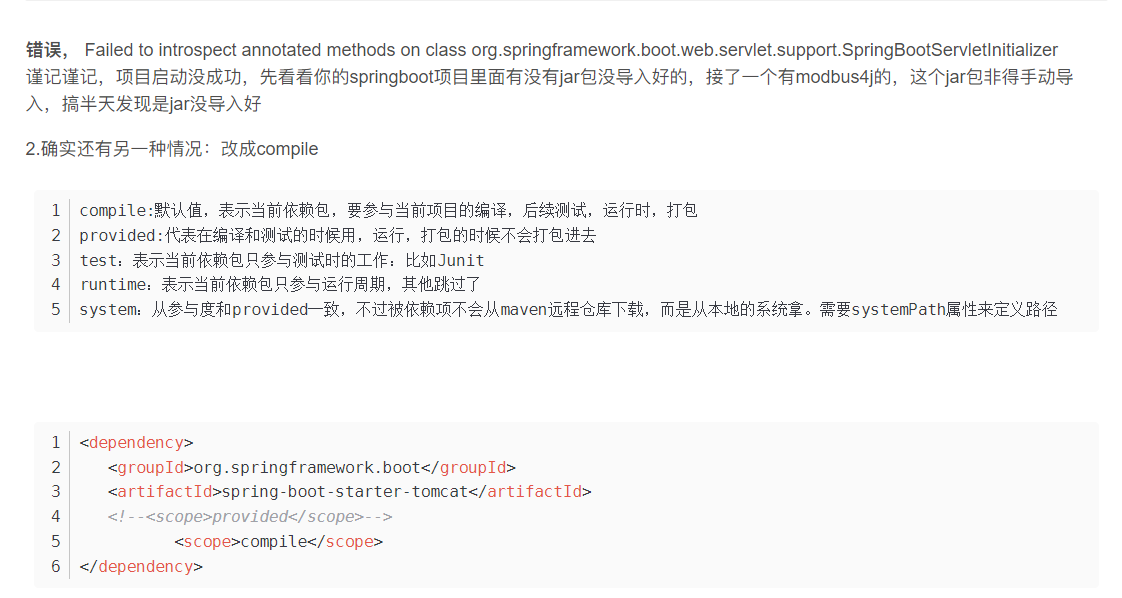

user项目的pom.xml需要将依赖改为scope才能加载到自动配置类(遇到bug,网上找的方案,原理不明)

    <dependencies>
        <dependency>
            <groupId>org.malred</groupId>
            <artifactId>springboot</artifactId>
            <version>0.1.0</version>
            <!-- 要改为这个才能加载自动配置类 -->
            <scope>compile</scope>
        </dependency>
    </dependencies>

6. 模拟springboot条件注解

我们的tomcat和jetty的依赖判断可以抽象为一个条件类,传入string(全类名),判断这个string是否可以被加载到

MalredConditionalOnClass

package org.springboot.webServer.Conditional;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

import org.springframework.context.annotation.Conditional;

@Target({ ElementType.TYPE, ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Conditional(ClassExistedCondition.class)
public @interface MalredConditionalOnClass {
    String value();
}

ClassExistedCondition

package org.springboot.webServer.Conditional;

import java.util.Map;
import org.springframework.context.annotation.Condition;
import org.springframework.context.annotation.ConditionContext;
import org.springframework.core.type.AnnotatedTypeMetadata;

public class ClassExistedCondition implements Condition {

  @Override
  public boolean matches(
    ConditionContext context,
    AnnotatedTypeMetadata metadata
  ) {
    // 获取要加载的类
    Map<String, Object> annotationAttributes = metadata.getAnnotationAttributes(
      MalredConditionalOnClass.class.getName()
    );
    String className = (String) annotationAttributes.get("value");
    // 加载类,如果没有表示没有jetty依赖
    try {
      context.getClassLoader().loadClass(className);
      return true;
    } catch (ClassNotFoundException e) {
      return false;
    }
  }
}

WebServerAutoConfiguration

package org.springboot.webServer;

import org.springboot.webServer.Conditional.MalredConditionalOnClass;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
// 创建Bean,创建不同web容器
public class WebServerAutoConfiguration {

  @Bean
  @MalredConditionalOnClass("org.apache.catalina.startup.Tomcat")
  public TomcatWebServer tomcatWebServer() {
    return new TomcatWebServer();
  }

  @Bean
  @MalredConditionalOnClass("org.eclipse.jetty.server.Server")
  public JettyWebServer jettyWebServer() {
    return new JettyWebServer();
  }
}

7. 模拟springboot的AutoConfigurationImportSelector

添加一个声明自动配置类的类,通过一个方法返回所有要加载的自动配置类

package org.springboot;

import java.util.ArrayList;
import org.springboot.webServer.WebServerAutoConfiguration;
import org.springframework.context.annotation.DeferredImportSelector;
import org.springframework.core.type.AnnotationMetadata;

public class AutoConfigurationImportSelector implements DeferredImportSelector {

  /**
   * 返回所有要自动配置的类的名字,实现批量导入配置
   */
  @Override
  public String[] selectImports(AnnotationMetadata importingClassMetadata) {
    // springboot默认+第三方jar 的自动配置类名字
    // jars -> META-INF/spring.factories.EnableAutoConfiguration
    ArrayList<String> autos = new ArrayList<>();
    autos.add(WebServerAutoConfiguration.class.getName());
    String[] array = (String[]) autos.toArray();
    return array;
  }
}
赏

  转载请注明: malred-blog 图灵手写springboot

 上一篇
B站 软件工程习题课 B站 软件工程习题课
1 一开始得到初始结构图,然后根据高内聚低耦合来形成优化的结构图 模块的算法是详细设计部分 程序编码是实现部分 自顶向下的思想在数据流图和数据流图转模块化结构图时有体现 直接修改是内容耦合,数据耦合是比较好的弱的耦合,
2023-06-12 水课 软件工程
水课 软件工程
下一篇
自己写的计组笔记 自己写的计组笔记
2023-06-10 水课 计算机组成原理
水课 计算机组成原理
  目录
